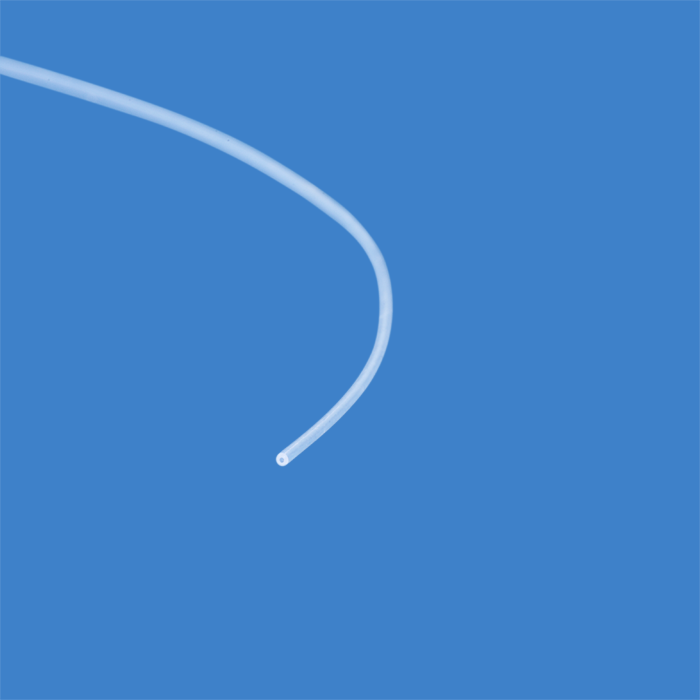

Tubing, PTFE, 0.011 inch (0.3 mm) ID, 0.031 inch ( 0.8 mm) OD, low pressure. Your custom continuous length Tubing, priced per meter. ARE-Applied Research brand.
Additional Information:
ARE-Applied Research PTFE (Polytetrafluoroethylene) tubing is manufactured from virgin PTFE resin without additives or fillers. PTFE tubing is widely used in low-pressure laboratory fluid handling applications due to its broad chemical compatibility, temperature resistance, and inert surface characteristics. Because PTFE tubing contains microscopic pores within the tubing wall, it allows relatively rapid gas exchange compared to ETFE tubing, making it less suitable for degassed solvents or oxygen-sensitive mobile phases.
49225-80-1C allows laboratories and manufacturers to order a continuous length of natural translucent PTFE tubing with a 0.011 inch (0.3 mm) internal diameter and 0.031 inch (0.8 mm) outer diameter. This Special Order Item is priced per meter, allowing users to specify the exact tubing length required while minimizing waste and reducing the need for unions or additional connections. The small internal diameter helps minimize dead volume and is ideal for low-flow analytical applications and sample transfer pathways.
The tubing is suitable for use before and after HPLC pumps, including mobile phase delivery, solvent waste handling, reagent transfer, and general laboratory fluid transport. PTFE offers excellent chemical resistance and can withstand temperatures up to 260°C. Lengths of 15 meters or longer are supplied on a convenient spool, and the product is compliant with RoHS EU Directive 2011/65/EU and amendment (EU) 2015/863.
Key Benefits
Continuous length tubing specified by the customer
Manufactured from virgin PTFE resin
No additives or fillers
Excellent chemical resistance
Small internal diameter helps minimize dead volume
High temperature resistance up to 260°C
Lengths of 15 meters and longer supplied on a convenient spool
RoHS compliant
Typical Applications
HPLC mobile phase delivery
HPLC solvent waste systems
Sample transfer
Laboratory fluid transfer
Analytical instrumentation
Reagent delivery
Low-flow fluid pathways
General laboratory fluid handling
Specifications
Product Type: PTFE Tubing
Material: PTFE (Polytetrafluoroethylene)
Internal Diameter: 0.011 in. (0.3 mm)
Outer Diameter: 0.031 in. (0.8 mm)
Wall Thickness: 0.25 mm
Color: Natural, Translucent
Length: Continuous Length
Pricing Basis: Per Meter
Lengths ≥15 Meters: Supplied on Spool
Maximum Temperature: 260°C
Dimensional Tolerance: ±0.10 mm
RoHS Compliance: Yes
Brand: ARE-Applied Research
Additional Lengths
Special Order Item Information
This item is supplied in the length specified at the time of order.
Special Order Items cannot be canceled or returned once an order has been placed.
Custom cuts are available to meet specific application requirements.
Contact Customer Service for custom cuts, quotations, pricing, lead times, and ordering assistance
Important Notes
Special Order Item
Continuous length tubing priced per meter
Lengths of 15 meters or longer supplied on a convenient spool
Manufactured from virgin PTFE resin
PTFE walls allow greater gas exchange than ETFE tubing
Consider solvent permeability when using degassed or oxygen-sensitive solvents
Maximum operating temperature of 260°C
RoHS compliant
