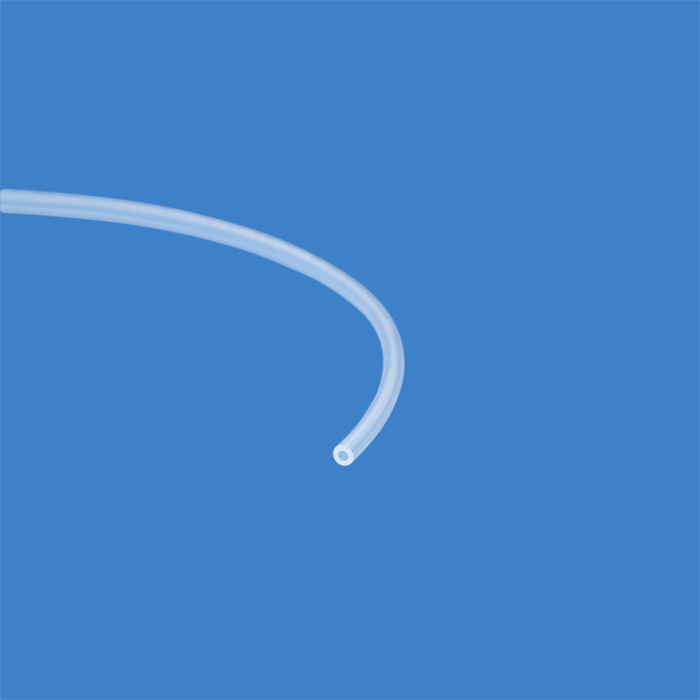

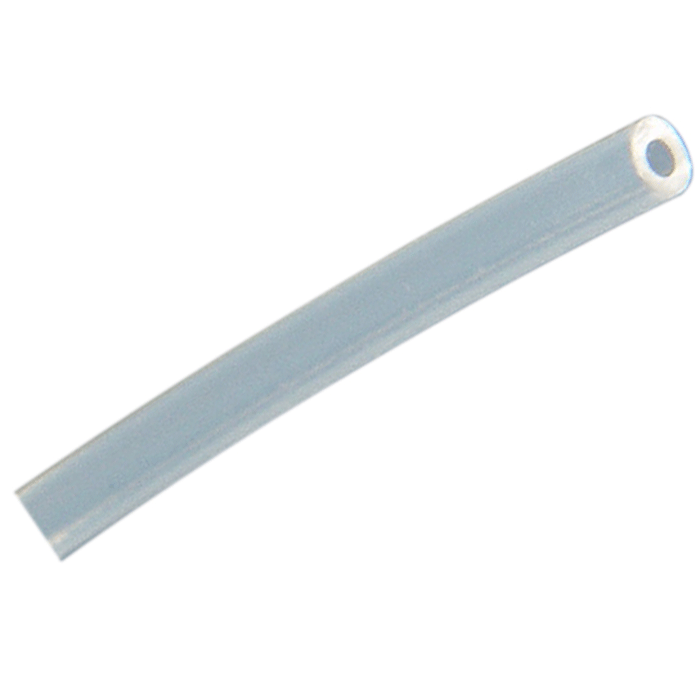

Tubing, ETFE, 0.030 inch (0.75 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, Your continuous length tubing, priced per meter. ARE-Applied Research brand.
Additional Information:
ARE-Applied Research ETFE (Ethylene Tetrafluoroethylene), commonly known by the trade name Tefzel™, tubing is manufactured from virgin ETFE resin without the use of processing additives. ETFE tubing is widely used in low-pressure laboratory fluid handling applications due to its excellent chemical resistance, low permeability, and mechanical durability. Compared to PTFE tubing, ETFE offers lower gas permeability while maintaining excellent compatibility with most laboratory solvents and reagents. ETFE is chemically inert except when used with certain halogenated compounds.
48510-30-1C allows laboratories and manufacturers to order a continuous length of natural translucent ETFE tubing with a 0.030 inch (0.75 mm) internal diameter and 1/16 inch (1.6 mm) outer diameter. This Special Order Item is priced per meter, allowing users to specify the exact tubing length required while minimizing waste and reducing the need for unions or additional connections. The larger internal diameter supports increased flow capacity for solvent transfer, reagent delivery, and laboratory fluid handling applications while maintaining excellent chemical compatibility.
The translucent tubing wall allows visual monitoring of fluid movement and is suitable for use before and after HPLC pumps, including mobile phase delivery, solvent transfer, waste handling, reagent delivery, and general laboratory fluid transport applications. Lengths of 15 meters or longer are supplied on a convenient spool for easier handling and storage.
Key Benefits
Continuous length tubing specified by the customer
Manufactured from virgin ETFE resin without additives
Low permeability compared to PTFE tubing
Excellent chemical resistance
Larger internal diameter supports increased flow capacity
Durable and flexible tubing construction
Lengths of 15 meters and longer supplied on a convenient spool
Natural translucent tubing allows fluid visibility
Typical Applications
HPLC mobile phase delivery
HPLC solvent waste systems
Laboratory fluid transfer
Analytical instrumentation
Reagent transfer systems
Sample transport lines
Solvent delivery applications
General laboratory fluid handling
Specifications
Product Type: ETFE Tubing
Material: ETFE (Tefzel™)
Internal Diameter: 0.030 in. (0.75 mm)
Outer Diameter: 1/16 in. (1.6 mm)
Wall Thickness: 0.425 mm
Color: Natural, Translucent
Length: Continuous Length
Pricing Basis: Per Meter
Lengths ≥15 Meters: Supplied on Spool
Pressure Rating: 1625 psi (112.1 bar)
Dimensional Tolerance: ±0.10 mm
Brand: ARE-Applied Research
Additional Lengths
Special Order Item Information
This item is supplied in the length specified at the time of order.
Special Order Items cannot be canceled or returned once an order has been placed.
Custom cuts are available to meet specific application requirements.
Contact Customer Service for custom cuts, quotations, pricing, lead times, and ordering assistance
Important Notes
Special Order Item
Continuous length tubing priced per meter
Lengths of 15 meters or longer supplied on a convenient spool
Manufactured from virgin ETFE resin
Lower permeability than PTFE tubing
Suitable before and after HPLC pumps
Natural translucent tubing allows fluid visibility
Pressure rated to 1625 psi (112.1 bar)
Excellent chemical resistance
Not recommended for certain halogenated compounds
