Catalog Number - 82561-SP250

Cogent NP Silica™ Semi-Preparative HPLC Columns are designed for purification, method scale-up, and semi-preparative chromatography applications involving lipids, polar compounds, and hydrophilic analytes. Manufactured from ultra-high purity, low-metal-content 100 Å silica, this stationary phase is completely unmodified, providing the traditional selectivity associated with USP L3 classified silica. NP Silica™ is widely used when maximum silica activity is desired for normal-phase and HILIC purification methods.

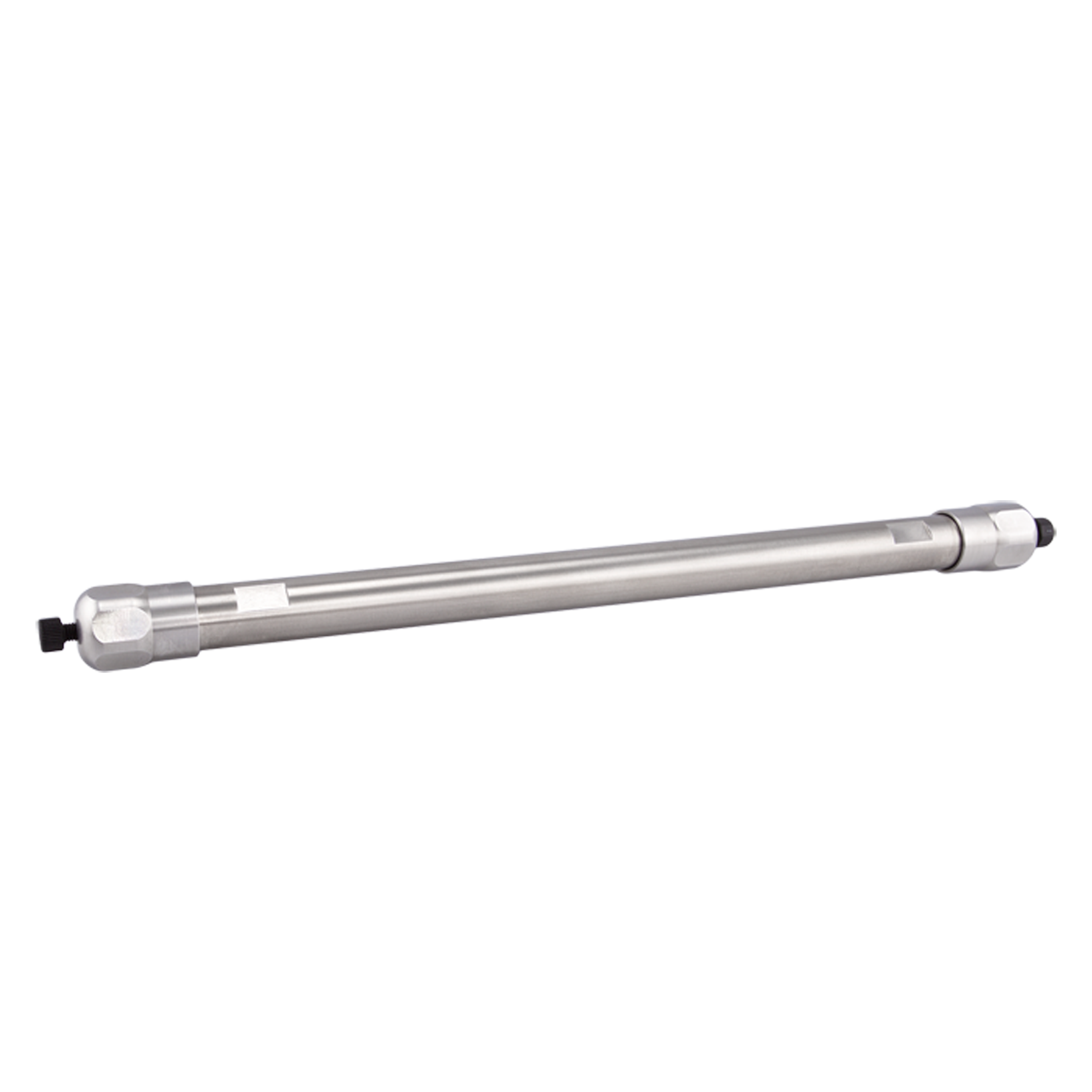

82561-SP250 is packed with 5 µm NP Silica™ particles in a 10 mm ID x 250 mm semi-preparative format. The 5 µm particle size supports semi-preparative flow rates while producing lower backpressure than smaller particle columns. The extended column length provides maximum resolution and peak capacity, while the larger internal diameter offers increased sample loading capacity for demanding purification and method scale-up applications.

The 10 mm ID x 250 mm format is well suited for HILIC and normal-phase chromatography involving hydrophilic and polar compounds. Typical flow rates are approximately 3–8 mL/min depending on mobile phase composition, system pressure limitations, and application requirements. A semi-preparative or preparative HPLC system capable of supporting these flow rates and injection volumes is recommended for optimum performance.

Key Benefits

• NP Silica™ stationary phase

• USP L3 equivalent chemistry

• Ultra-high purity, low-metal-content silica

• Unmodified silica surface

• 100 Å pore size

• Suitable for HILIC applications

• Suitable for normal-phase chromatography

• Increased sample loading capacity

• Lower backpressure with 5 µm particles

• Ideal for semi-preparative purification

Typical Applications

• Semi-preparative HILIC chromatography

• Semi-preparative normal-phase HPLC

• Lipid purification

• Polar compound purification

• Hydrophilic compound purification

• Fraction collection

• Method scale-up

• Pharmaceutical purification

• Process development

• USP L3 method transfer

Specifications

• Product Type: Semi-Preparative HPLC Column

• Stationary Phase: NP Silica™

• Chromatography Mode: HILIC / Normal Phase

• USP Classification: L3

• Particle Size: 5 µm

• Pore Size: 100 Å

• Column Dimensions: 10 mm ID x 250 mm

• Recommended Flow Rate: 3–8 mL/min

• Column Hardware: Stainless Steel

• Brand: Cogent

Special Order Item Information

• Please review the Special Order Item Information for complete details.

• For pricing confirmation, availability, lead times, or application assistance, please contact MICROSOLV Customer Service.

Important Notes

• Suitable for HILIC applications

• Suitable for normal-phase chromatography

• Unmodified silica stationary phase

• USP L3 equivalent chemistry

• Excellent for lipid, hydrophilic, and polar compound purification

• 10 mm ID format provides increased sample loading capacity versus analytical columns

• 250 mm length provides maximum resolution and peak capacity

• Typical operating range is approximately 3–8 mL/min

• Requires a semi-preparative or preparative HPLC system

• Ideal for purification, fraction collection, and analytical-to-semi-preparative scale-up

• This is a Special Order Item
