Catalog Number - 82561-P30-100

Cogent NP Silica™ Preparative HPLC Columns are designed for purification, scale-up, and preparative chromatography applications involving lipids, polar compounds, and hydrophilic analytes. Manufactured from ultra-high purity, low-metal-content 100 Å silica, this stationary phase is completely unmodified, providing the traditional selectivity associated with USP L3 classified silica. NP Silica™ is widely used when maximum silica activity is desired for normal-phase and HILIC purification methods.

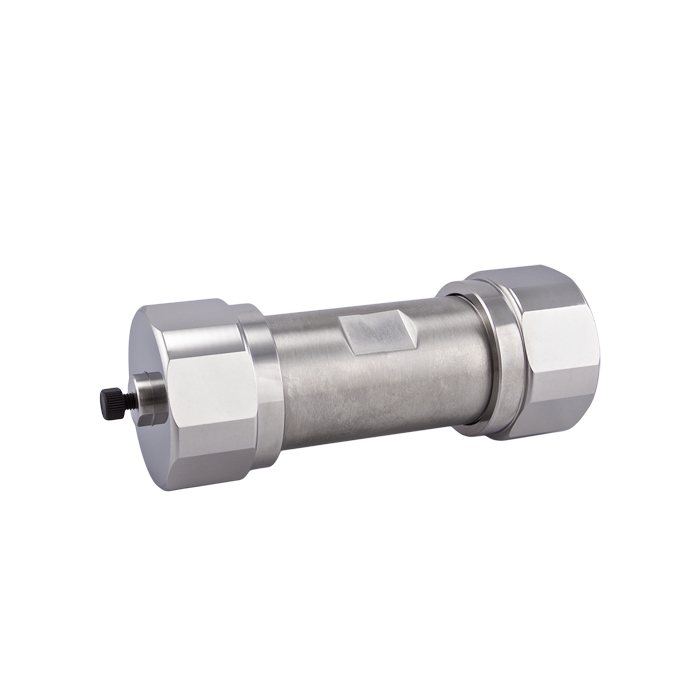

82561-P30-100 is packed with 5 µm NP Silica™ particles in a 30 mm ID x 100 mm preparative format. The 5 µm particle size supports preparative flow rates while producing lower backpressure than smaller particle columns. The large internal diameter provides substantial sample loading capacity, making this column ideal for purification, fraction collection, and production-scale method development.

The 30 mm ID x 100 mm format is well suited for preparative HILIC and normal-phase chromatography involving hydrophilic and polar compounds. Typical flow rates are approximately 30-50 mL/min depending on mobile phase composition, system pressure limitations, and application requirements. A specialized preparative HPLC system capable of high flow rates and large-volume sample loading is required for optimum performance.

Key Benefits

• NP Silica™ stationary phase

• USP L3 equivalent chemistry

• Ultra-high purity, low-metal-content silica

• Unmodified silica surface

• 100 Å pore size

• Suitable for HILIC applications

• Suitable for normal-phase chromatography

• Very high sample loading capacity

• Lower backpressure with 5 µm particles

• Ideal for preparative purification and scale-up

Typical Applications

• Preparative HILIC chromatography

• Preparative normal-phase HPLC

• Lipid purification

• Polar compound purification

• Hydrophilic compound purification

• Fraction collection

• Method scale-up

• Pharmaceutical purification

• Process development

• USP L3 method transfer

Specifications

• Product Type: Preparative HPLC Column

• Stationary Phase: NP Silica™

• Chromatography Mode: HILIC / Normal Phase

• USP Classification: L3

• Particle Size: 5 µm

• Pore Size: 100 Å

• Column Dimensions: 30 mm ID x 100 mm

• Recommended Flow Rate: 30-50 mL/min

• Column Hardware: Stainless Steel

• Brand: Cogent

Special Order Item Information

• Please review the Special Order Item Information for complete details.

• For pricing confirmation, availability, lead times, or application assistance, please contact MICROSOLV Customer Service.

Important Notes

• Suitable for HILIC applications

• Suitable for normal-phase chromatography

• Unmodified silica stationary phase

• USP L3 equivalent chemistry

• Excellent for lipid, hydrophilic, and polar compound purification

• Large 30 mm ID provides very high sample loading capacity

• 100 mm length offers an excellent balance of throughput and resolution

• Typical operating range is approximately 30-50 mL/min

• Requires a specialized preparative HPLC system capable of high flow rates

• Ideal for purification, fraction collection, and process scale-up

• This is a Special Order Item
