Catalog Number - 82061-P30-PG1-3

Cogent NP Silica™ Wide Pore Preparative Guard Column Cartridges are designed to protect valuable preparative HPLC columns from particulate matter, strongly retained contaminants, and sample matrix components that can shorten column life and reduce chromatographic performance. Packed with ultra-high purity, low metal content, 300Å NP Silica™ Wide Pore that remains completely unmodified, these guard cartridges provide the same chromatographic selectivity as the preparative column they protect while improving system reliability and reducing downtime.

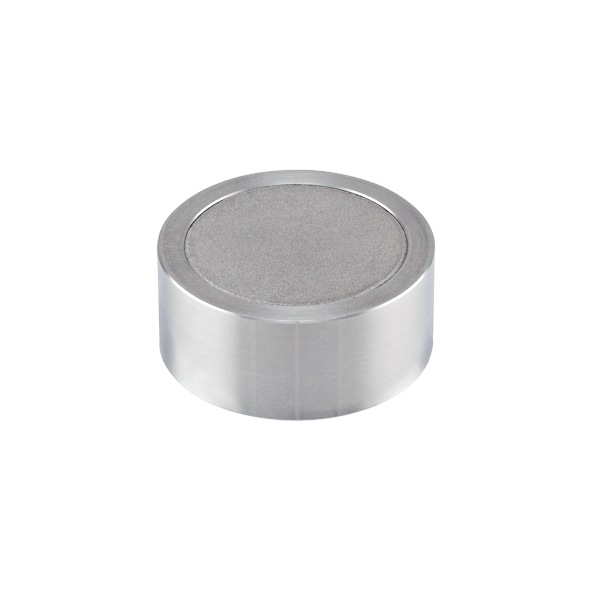

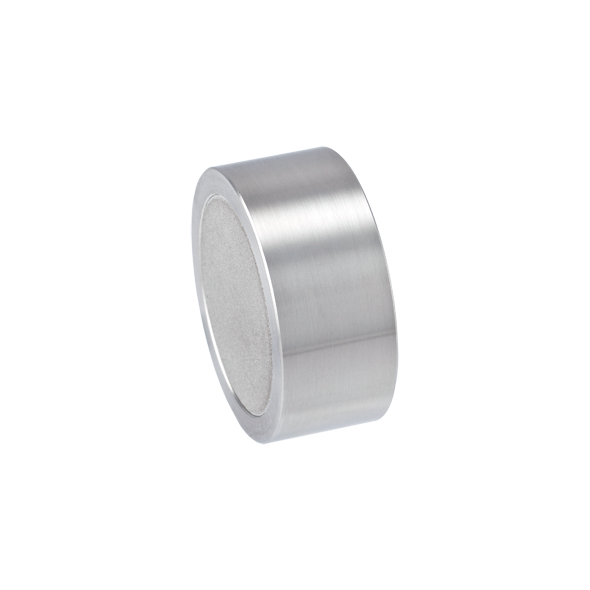

82061-P30-PG1-3 is packed with 10 µm NP Silica™ Wide Pore particles in a 30 mm ID x 10 mm preparative guard cartridge format. The 300Å wide pore silica provides improved accessibility for proteins, peptides, biomolecules, and other large molecular weight compounds. Housed in stainless steel hardware with stainless steel frits, the cartridge is installed ahead of the preparative column to trap particulates and strongly retained contaminants before they reach the primary column bed.

For many years, Cogent NP Silica™ Wide Pore preparative columns and guard cartridges have been trusted by pharmaceutical, biotechnology, cannabis, chemical, and forensic laboratories worldwide. This guard cartridge is particularly valuable in large molecule purification workflows where protecting the preparative column helps maintain loading capacity, chromatographic efficiency, and purification performance while reducing operating costs and extending column life.

Key Benefits

• NP Silica™ Wide Pore stationary phase

• USP L3 equivalent chemistry

• Ultra-high purity silica

• Low metal content silica

• Unmodified silica surface

• 300Å wide pore design

• 10 µm particle size

• Protects preparative columns from contamination

• Helps extend preparative column life

• Maintains chromatographic performance

Typical Applications

• Preparative HPLC

• Protein purification

• Peptide purification

• Biomolecule isolation

• Large molecule separations

• HILIC chromatography

• Normal Phase chromatography

• Pharmaceutical purification

• Cannabis purification

• Process-scale chromatography

Specifications

• Product Type: Preparative Guard Column Cartridge

• Stationary Phase: NP Silica™ Wide Pore

• USP Classification: L3

• Chromatography Modes: HILIC and Normal Phase

• Particle Size: 10 µm

• Pore Size: 300Å

• Cartridge Dimensions: 30 mm ID x 10 mm

• Hardware Material: Stainless Steel

• Frit Material: Stainless Steel

• Brand: Cogent

Guard Column Holder Required

• Requires the Cogent 30 mm ID Preparative Guard Column Holder (83000-P30-GH) for installation and operation.

Important Notes

• Suitable for HILIC and Normal Phase chromatography

• USP L3 equivalent stationary phase

• Unmodified silica surface chemistry

• Manufactured from ultra-high purity, low metal content silica

• 300Å wide pore structure provides improved accessibility for proteins, peptides, and other large molecules

• Designed to protect preparative NP Silica™ Wide Pore columns from particulates and strongly retained contaminants

• Helps extend preparative column service life

• Maintains chromatographic performance and reproducibility

• Recommended for demanding purification and preparative workflows

• Frequently used in pharmaceutical, biotechnology, cannabis, chemical, and forensic laboratories

• Requires the Cogent 30 mm ID Preparative Guard Column Holder (83000-P30-GH)

• Compatible with Cogent 30 mm ID NP Silica™ Wide Pore preparative columns

• A specialized preparative HPLC system is required for columns of this size

Special Order Item Information

• Please review the Special Order Item Information for complete details.

• For pricing confirmation, availability, lead times, or application assistance, please contact MICROSOLV Customer Service.
