Catalog Number - 82061-10P-4

Cogent NP Silica™ HPLC Columns are manufactured using ultra-high purity, low metal content, 100Å silica that remains completely unmodified, providing the native silica selectivity required for Normal Phase and HILIC separations. This stationary phase is widely used as a direct alternative for methods requiring USP L3 equivalent chemistry and is well suited for retaining hydrophilic and polar compounds that can be challenging to separate using reversed-phase chromatography.

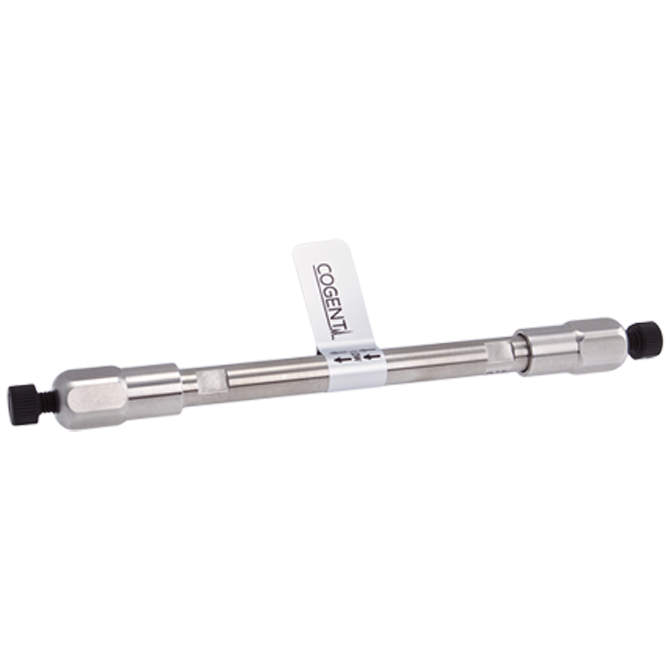

82061-10P-4 is packed with 10 µm NP Silica™ particles in a 4.0 mm ID x 100 mm analytical format. The larger particle size generates lower operating backpressure than smaller particle columns, allowing the use of higher flow rates while maintaining dependable chromatographic performance. The 100 mm length provides an excellent balance between analysis speed and chromatographic resolution, making it suitable for routine analytical methods and method development studies.

The unmodified silica surface provides strong retention mechanisms for polar analytes in both Normal Phase and HILIC modes. The 4.0 mm internal diameter is compatible with conventional analytical HPLC systems, while the 10 µm particle size is particularly advantageous when reducing system pressure is important or when transferring methods to larger preparative formats.

Key Benefits

• NP Silica™ stationary phase

• USP L3 equivalent chemistry

• Ultra-high purity silica

• Low metal content silica

• Unmodified silica surface

• 100Å pore size

• 10 µm particle size

• Lower operating backpressure

• Supports higher flow rates

• Suitable for HILIC and Normal Phase chromatography

Typical Applications

• Hydrophilic compound analysis

• Polar compound separations

• HILIC chromatography

• Normal Phase chromatography

• USP L3 method replacement

• Pharmaceutical analysis

• Method development

• Routine HPLC testing

• Analytical method transfer

• Research and development applications

Specifications

• Product Type: Analytical HPLC Column

• Stationary Phase: NP Silica™

• USP Classification: L3

• Chromatography Modes: HILIC and Normal Phase

• Particle Size: 10 µm

• Pore Size: 100Å

• Column Dimensions: 4.0 mm ID x 100 mm

• Recommended Flow Rate: 0.8–2.5 mL/min

• Column Hardware: Stainless Steel

• Brand: Cogent

Important Notes

• Suitable for HILIC and Normal Phase chromatography

• USP L3 equivalent stationary phase

• Unmodified silica surface chemistry

• Manufactured from ultra-high purity, low metal content silica

• Designed for hydrophilic and polar compound separations

• Lower backpressure than 3 µm and 5 µm particle columns

• Supports higher operating flow rates

• Compatible with conventional analytical HPLC systems

• 100 mm length provides a balance of speed and resolution

• Excellent choice for routine analysis and method development

• Can be used as an alternative for many USP L3 methods

Special Order Item Information

• Please review the Special Order Item Information for complete details.

• For pricing confirmation, availability, lead times, or application assistance, please contact MICROSOLV Customer Service.
