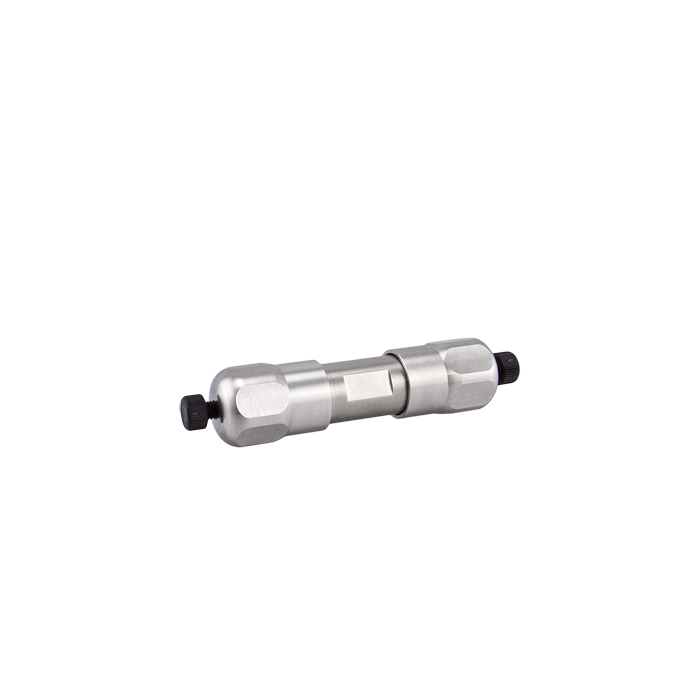

Semi Prep HPLC Column, NP Diol, 10um, 100A. 10mm ID x 50mm Length. Cogent Brand. 1 EA.
Additional Information:
Cogent NP Diol™ Semi-Prep HPLC Columns are designed for purification of polar and hydrophilic compounds using Normal Phase and HILIC chromatographic modes. Manufactured using ultra-high purity silica bonded with a short hydrocarbon ligand containing a terminal diol functional group, this stationary phase provides reproducible retention characteristics and selectivity for compounds that may be difficult to retain or purify using traditional reversed-phase methods. NP Diol™ is often selected as an alternative to unmodified silica columns when improved stability and polar selectivity are desired.
82060-SP50 is packed with 10 µm NP Diol™ particles in a 10 mm ID x 50 mm semi-preparative format with a 100Å pore size. The 10 µm particle size is well suited for semi-preparative chromatography, providing lower operating backpressure while allowing higher flow rates and increased sample loading compared to analytical columns. The 10 mm internal diameter provides excellent loading capacity, while the short 50 mm column length is ideal for rapid purification, fraction screening, and method development applications.
The NP Diol™ stationary phase is non-end-capped and is ideal for purification of hydrophilic and polar compounds using either Normal Phase or HILIC conditions. The semi-preparative column format provides a practical balance between purification capacity and solvent consumption, making it suitable for laboratory-scale purification and method scale-up workflows. NP Diol™ columns are frequently selected when fast purification and efficient compound recovery are required.
Key Benefits
NP Diol™ stationary phase
Ultra-high purity silica support
Terminal diol functional group
Non-end-capped chemistry
100Å pore size
10 µm semi-preparative particle size
Suitable for Normal Phase chromatography
Suitable for HILIC applications
Increased loading capacity versus analytical columns
Ideal for rapid purification and method development
Typical Applications
Semi-preparative HPLC
Compound purification
HILIC purification
Normal Phase purification
Polar compound isolation
Hydrophilic compound purification
Natural product purification
Pharmaceutical research
Method development
Fraction collection applications
Specifications
Product Type: Semi-Prep HPLC Column
Stationary Phase: NP Diol™
Chromatography Mode: Normal Phase / HILIC
Particle Size: 10 µm
Pore Size: 100Å
Column Dimensions: 10 mm ID x 50 mm
Recommended Flow Rate: 3–8 mL/min
Column Hardware: Stainless Steel
Brand: Cogent
Special Order Item Information
Please review the Special Order Item Information for complete details.
For pricing confirmation, availability, lead times, or application assistance, please contact MICROSOLV Customer Service.
Important Notes
Suitable for Normal Phase chromatography
Suitable for HILIC applications
Designed for purification of hydrophilic and polar compounds
Alternative to unmodified silica columns
Higher loading capacity than analytical columns
10 µm particles provide lower backpressure at semi-preparative flow rates
10 mm ID format requires a semi-preparative capable HPLC system
Short 50 mm length enables rapid purification and method development
Intended for compound isolation and purification workflows
This is a Special Order Item
