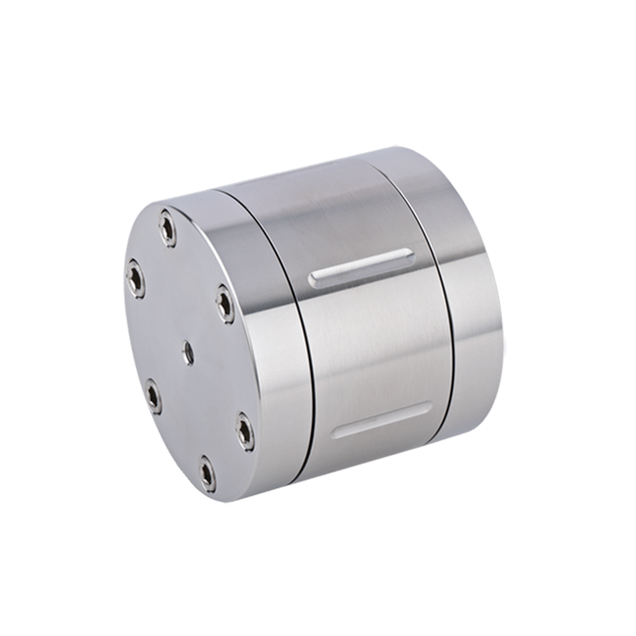

Process HPLC Column, NP Diol, 10um, 100A. 50mm ID x 50mm Length. Cogent Brand. 1 EA.
Additional Information:
Cogent NP Diol™ Process HPLC Columns are designed for high-capacity purification of polar and hydrophilic compounds using Normal Phase and HILIC chromatographic modes. Manufactured using ultra-high purity silica bonded with a short hydrocarbon ligand containing a terminal diol functional group, this stationary phase provides reproducible retention characteristics and selectivity for compounds that may be difficult to purify using traditional reversed-phase methods. NP Diol™ is often selected as an alternative to unmodified silica columns when improved stability and polar selectivity are desired.
82060-P50-50 is packed with 10 µm NP Diol™ particles in a 50 mm ID x 50 mm process-scale format with a 100Å pore size. The 10 µm particle size is well suited for high-throughput purification, providing lower operating backpressure while allowing high mobile phase flow rates and substantial sample loading capacity. The large 50 mm internal diameter provides excellent loading capacity, while the shorter 50 mm column length is ideal for rapid purification, process development, and high-throughput production workflows.
The NP Diol™ stationary phase is non-end-capped and is ideal for purification of hydrophilic and polar compounds using either Normal Phase or HILIC conditions. The large-diameter process column format supports efficient scale-up from preparative methods while providing excellent productivity for routine purification, fraction collection, and manufacturing operations. This column is frequently selected when fast separations and high sample throughput are the primary objectives.
Key Benefits
NP Diol™ stationary phase
Ultra-high purity silica support
Terminal diol functional group
Non-end-capped chemistry
100Å pore size
10 µm process-scale particle size
Suitable for Normal Phase chromatography
Suitable for HILIC applications
Very high sample loading capacity
Ideal for rapid process-scale purification
Typical Applications
Process HPLC
Production-scale purification
HILIC purification
Normal Phase purification
Polar compound isolation
Hydrophilic compound purification
Natural product purification
Pharmaceutical manufacturing
Process development
Fraction collection applications
Specifications
Product Type: Process HPLC Column
Stationary Phase: NP Diol™
Chromatography Mode: Normal Phase / HILIC
Particle Size: 10 µm
Pore Size: 100Å
Column Dimensions: 50 mm ID x 50 mm
Recommended Flow Rate: 80–150 mL/min
Column Hardware: Stainless Steel
Brand: Cogent
Special Order Item Information
Please review the Special Order Item Information for complete details.
For pricing confirmation, availability, lead times, or application assistance, please contact MICROSOLV Customer Service.
Important Notes
Suitable for Normal Phase chromatography
Suitable for HILIC applications
Designed for purification of hydrophilic and polar compounds
Alternative to unmodified silica columns
Very high loading capacity for process-scale work
10 µm particles provide lower backpressure at elevated flow rates
50 mm ID format requires a specialized process or large-scale preparative HPLC system
Short 50 mm length enables rapid purification and process development
Intended for compound isolation and purification workflows
This is a Special Order Item
