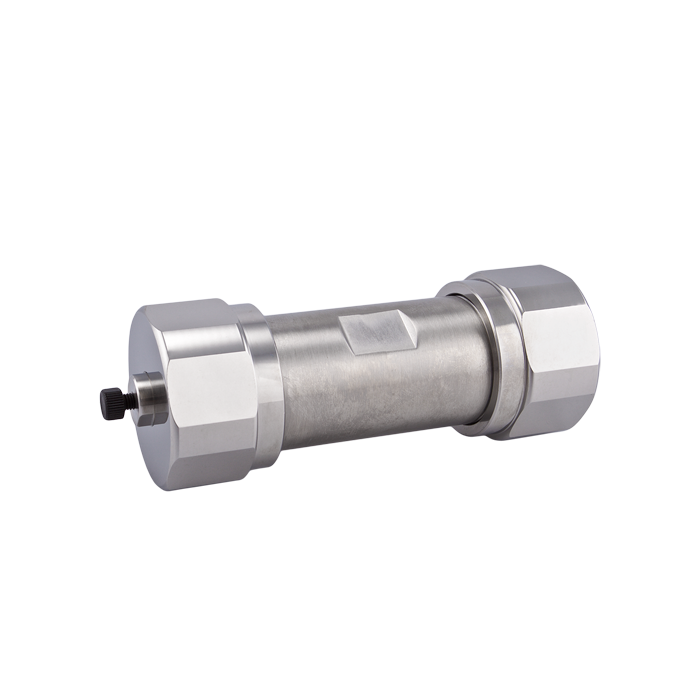

Prep HPLC Column, NP Diol, 10um, 100A. 30mm ID x 100mm Length. Cogent Brand. 1 EA.
Additional Information:
Cogent NP Diol™ Preparative HPLC Columns are designed for high-capacity purification of polar and hydrophilic compounds using Normal Phase and HILIC chromatographic modes. Manufactured using ultra-high purity silica bonded with a short hydrocarbon ligand containing a terminal diol functional group, this stationary phase provides reproducible retention characteristics and selectivity for compounds that may be difficult to purify using traditional reversed-phase methods. NP Diol™ is often selected as an alternative to unmodified silica columns when improved stability and polar selectivity are desired.
82060-P30-100 is packed with 10 µm NP Diol™ particles in a 30 mm ID x 100 mm preparative format with a 100Å pore size. The 10 µm particle size is well suited for preparative chromatography, providing lower operating backpressure while allowing high mobile phase flow rates and substantial sample loading capacity. The 30 mm internal diameter offers significantly greater loading capacity than smaller preparative columns, making it ideal for purification workflows requiring larger sample loads and increased throughput.
The NP Diol™ stationary phase is non-end-capped and is ideal for purification of hydrophilic and polar compounds using either Normal Phase or HILIC conditions. The large-diameter preparative format enables efficient scale-up from analytical and semi-preparative methods while supporting compound isolation and fraction collection. This column is frequently used when higher productivity and preparative purification performance are required.
Key Benefits
NP Diol™ stationary phase
Ultra-high purity silica support
Terminal diol functional group
Non-end-capped chemistry
100Å pore size
10 µm preparative particle size
Suitable for Normal Phase chromatography
Suitable for HILIC applications
High sample loading capacity
Ideal for preparative purification and scale-up
Typical Applications
Preparative HPLC
Compound purification
HILIC purification
Normal Phase purification
Polar compound isolation
Hydrophilic compound purification
Natural product purification
Pharmaceutical purification
Method scale-up
Fraction collection applications
Specifications
Product Type: Preparative HPLC Column
Stationary Phase: NP Diol™
Chromatography Mode: Normal Phase / HILIC
Particle Size: 10 µm
Pore Size: 100Å
Column Dimensions: 30 mm ID x 100 mm
Recommended Flow Rate: 30–60 mL/min
Column Hardware: Stainless Steel
Brand: Cogent
Special Order Item Information
Please review the Special Order Item Information for complete details.
For pricing confirmation, availability, lead times, or application assistance, please contact MICROSOLV Customer Service.
Important Notes
Suitable for Normal Phase chromatography
Suitable for HILIC applications
Designed for purification of hydrophilic and polar compounds
Alternative to unmodified silica columns
High loading capacity for preparative work
10 µm particles provide lower backpressure at preparative flow rates
30 mm ID format requires a specialized preparative HPLC system
Well suited for scale-up and high-throughput purification
Intended for compound isolation and purification workflows
This is a Special Order Item
