Catalog Number - 75020-P100

Cogent HPS Phenyl™ Preparative HPLC Columns are designed for high-capacity purification of aromatic and structurally related compounds using reversed-phase chromatography. Manufactured using a monofunctional four-carbon ligand with an attached phenyl group bonded to high-purity 120Å silica and fully end capped for excellent peak shape and reproducibility, this stationary phase provides unique aromatic selectivity through π-π interactions. HPS Phenyl™ is particularly effective for compounds that may be difficult to separate on conventional C18 phases and is widely used for purification and scale-up applications involving complex aromatic analytes.

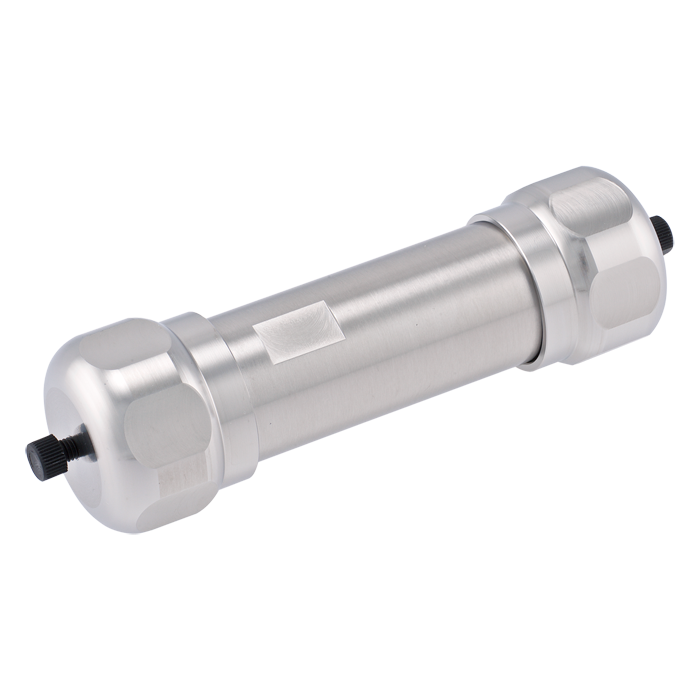

75020-P100 is packed with 5 µm HPS Phenyl™ particles in a 21.2 mm ID x 100 mm preparative format. The 5 µm particle size provides excellent chromatographic efficiency with lower operating backpressure than smaller particles, while the 21.2 mm internal diameter provides substantial sample loading capacity for preparative purification. The 100 mm length offers an excellent balance of throughput, recovery, and chromatographic resolution.

The HPS Phenyl™ stationary phase is especially useful for purification of positional isomers, tocopherols, flavonoids, polynuclear aromatic hydrocarbons, nitro-aromatic compounds, active pharmaceutical ingredients (APIs), natural products, and related compounds. The unique aromatic selectivity often provides improved separation of structurally similar compounds that may not be adequately resolved using traditional alkyl-bonded phases, making it an excellent choice for preparative purification and compound isolation workflows.

Key Benefits

• HPS Phenyl™ stationary phase

• Fully end capped

• Monofunctional phenyl bonded phase

• High-purity 120Å silica

• 5 µm preparative particle size

• Enhanced aromatic selectivity

• Excellent for positional isomer purification

• Lower operating backpressure

• High loading capacity for purification

• Ideal for preparative reversed-phase separations

Typical Applications

• Preparative HPLC

• Compound purification

• Positional isomer purification

• Tocopherol purification

• Flavonoid purification

• Polynuclear aromatic compound isolation

• Nitro-aromatic compound purification

• API purification

• Natural product purification

• Reversed-phase chromatography

Specifications

• Product Type: Preparative HPLC Column

• Stationary Phase: HPS Phenyl™

• Chromatography Mode: Reversed Phase

• Particle Size: 5 µm

• Pore Size: 120Å

• Column Dimensions: 21.2 mm ID x 100 mm

• Recommended Flow Rate: 15–30 mL/min

• Column Hardware: Stainless Steel

• Brand: Cogent

Special Order Item Information

• Please review the Special Order Item Information for complete details.

• For pricing confirmation, availability, lead times, or application assistance, please contact MICROSOLV Customer Service.

Important Notes

• Suitable for reversed-phase chromatography

• Fully end capped stationary phase

• Provides unique aromatic and π-π interaction selectivity

• Excellent for positional isomer purification

• Ideal for flavonoids, tocopherols, and aromatic compounds

• High loading capacity for preparative applications

• 21.2 mm ID format requires a specialized preparative HPLC system

• 100 mm length provides an excellent balance of purification speed and resolution

• Lower backpressure compared to smaller particle columns

• Useful when additional selectivity beyond C18 phases is required

• This is a Special Order Item
