Catalog Number - 68540-SP-PG1-3

Cogent NP Amino™ Wide Pore Semi-Preparative Guard Column Cartridges are designed to protect valuable semi-preparative HPLC columns from particulate contamination and strongly retained compounds that can reduce column performance and shorten column life. Packed with the same NP Amino™ Wide Pore stationary phase as the corresponding semi-preparative columns, these guard cartridges help maintain chromatographic performance while reducing replacement costs and downtime.

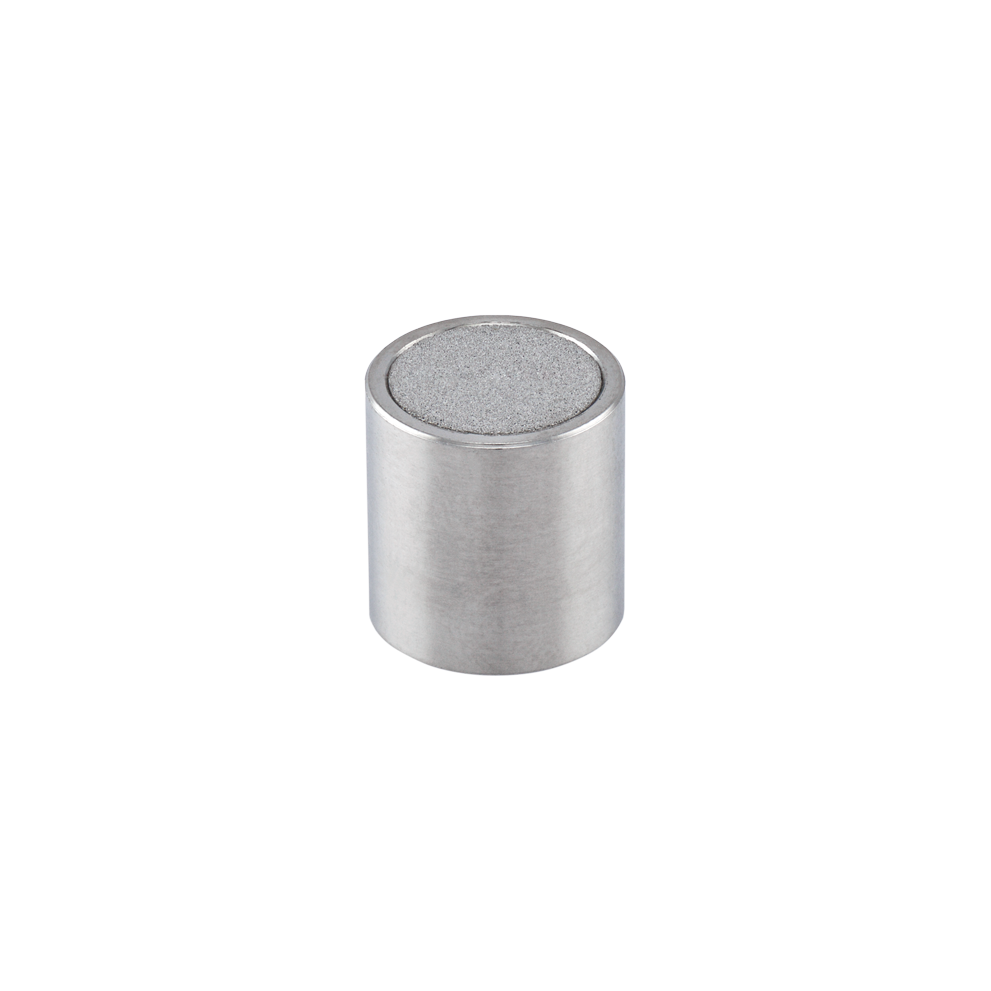

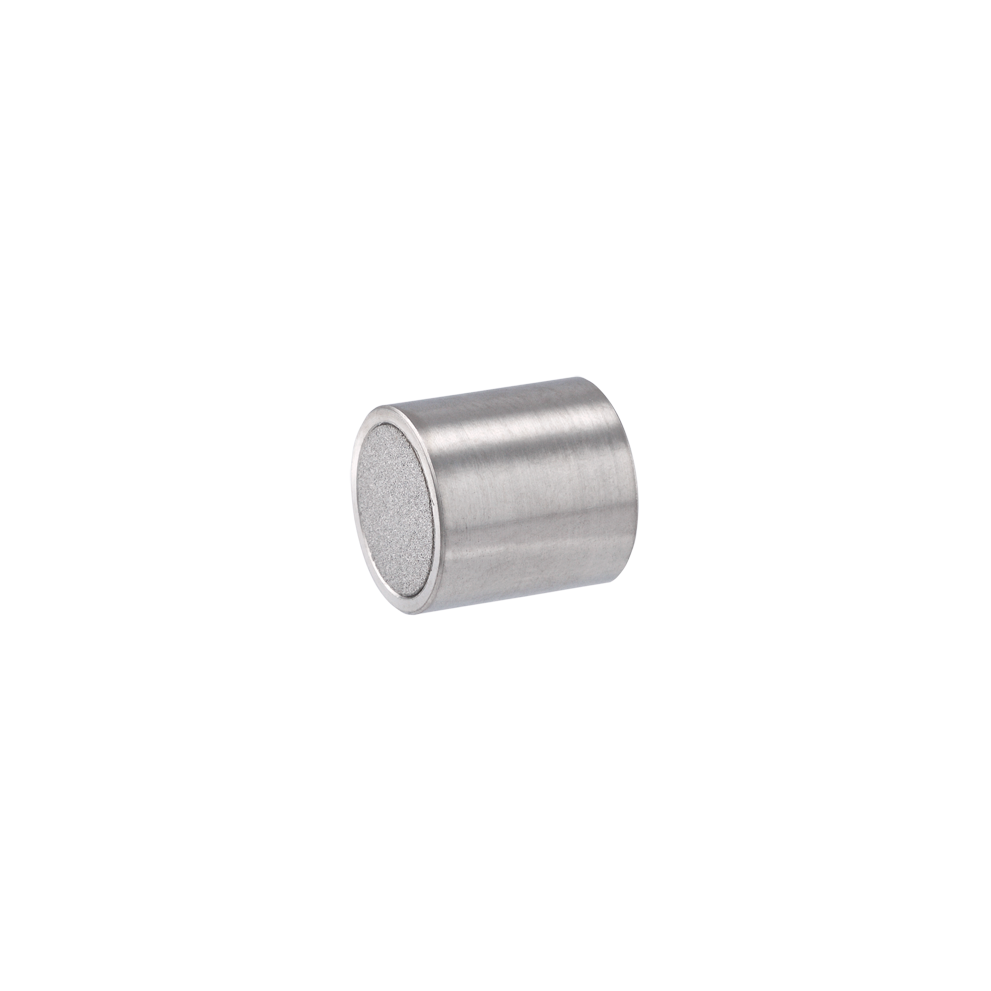

68540-SP-PG1-3 is packed with 5 µm NP Amino™ Wide Pore particles in a 10 mm ID x 10 mm guard cartridge format with a 300Å pore size. Manufactured using a three-carbon propyl ligand containing a terminal amino functional group bonded to the highest purity silica available, this stationary phase is not end capped and provides the same selectivity characteristics as Cogent NP Amino™ Wide Pore semi-preparative columns. The wide pore structure improves accessibility for larger molecules, making it especially suitable for complex sugars, larger polar compounds, and analytes containing carboxylic acid functionalities.

Designed specifically to protect NP Amino™ Wide Pore semi-preparative columns, these guard cartridges help prevent particulate matter and strongly adsorbed contaminants from reaching the analytical bed. Regular replacement of the guard cartridge can help extend column life while maintaining chromatographic efficiency and reproducibility throughout purification workflows.

Key Benefits

• NP Amino™ Wide Pore stationary phase

• Propyl amino bonded silica

• Not end capped

• 300Å wide pore structure

• 5 µm particle size

• Protects semi-preparative columns from contamination

• Extends semi-preparative column lifetime

• Stainless steel cartridge construction

• Stainless steel frits

• Matched chemistry to NP Amino™ Wide Pore semi-preparative columns

Typical Applications

• Semi-preparative HPLC

• Complex sugar purification

• Carbohydrate purification

• Organic acid separations

• HILIC chromatography

• Normal Phase chromatography

• Large molecule purification

• Method development

• Column protection

• Sample cleanup applications

Specifications

• Product Type: Semi-Preparative Guard Column Cartridge

• Stationary Phase: NP Amino™ Wide Pore

• Chromatography Mode: Normal Phase / HILIC

• Particle Size: 5 µm

• Pore Size: 300Å

• Cartridge Dimensions: 10 mm ID x 10 mm

• Hardware Material: Stainless Steel

• Frit Material: Stainless Steel

• Package Quantity: 5 Cartridges

• Compatible Column Size: 10 mm ID Semi-Preparative Columns

• Brand: Cogent

Required Guard Column Holder

• Requires the Cogent 10 mm ID Semi-Preparative Guard Column Holder (Catalog Number 83000-SP-GH) for installation and use.

• See the Cogent 10 mm ID Semi-Preparative Guard Column Holder product page for complete compatibility and ordering information.

Special Order Item Information

• Please review the Special Order Item Information for complete details.

• For pricing confirmation, availability, lead times, or application assistance, please contact MICROSOLV Customer Service.

Important Notes

• Designed to protect 10 mm ID NP Amino™ Wide Pore semi-preparative columns

• Suitable for Normal Phase chromatography

• Suitable for HILIC applications

• Ideal for complex sugars and larger polar compounds

• Propyl amino bonded stationary phase

• Wide pore structure improves accessibility for larger analytes

• Helps prevent contamination of semi-preparative columns

• Extends column service life and reduces operating costs

• Requires the Cogent 10 mm ID Semi-Preparative Guard Column Holder (83000-SP-GH)

• Five guard cartridges per package

• Intended for semi-preparative purification workflows

• This is a Special Order Item
