Catalog Number - 68540-SP-PG1

Cogent NP Amino™ Semi-Preparative Guard Column Cartridges are designed to protect valuable semi-preparative HPLC columns from particulate contamination and strongly retained compounds that can reduce column performance and shorten column life. Packed with the same NP Amino™ stationary phase as the corresponding semi-preparative columns, these guard cartridges help maintain chromatographic performance while reducing replacement costs and downtime.

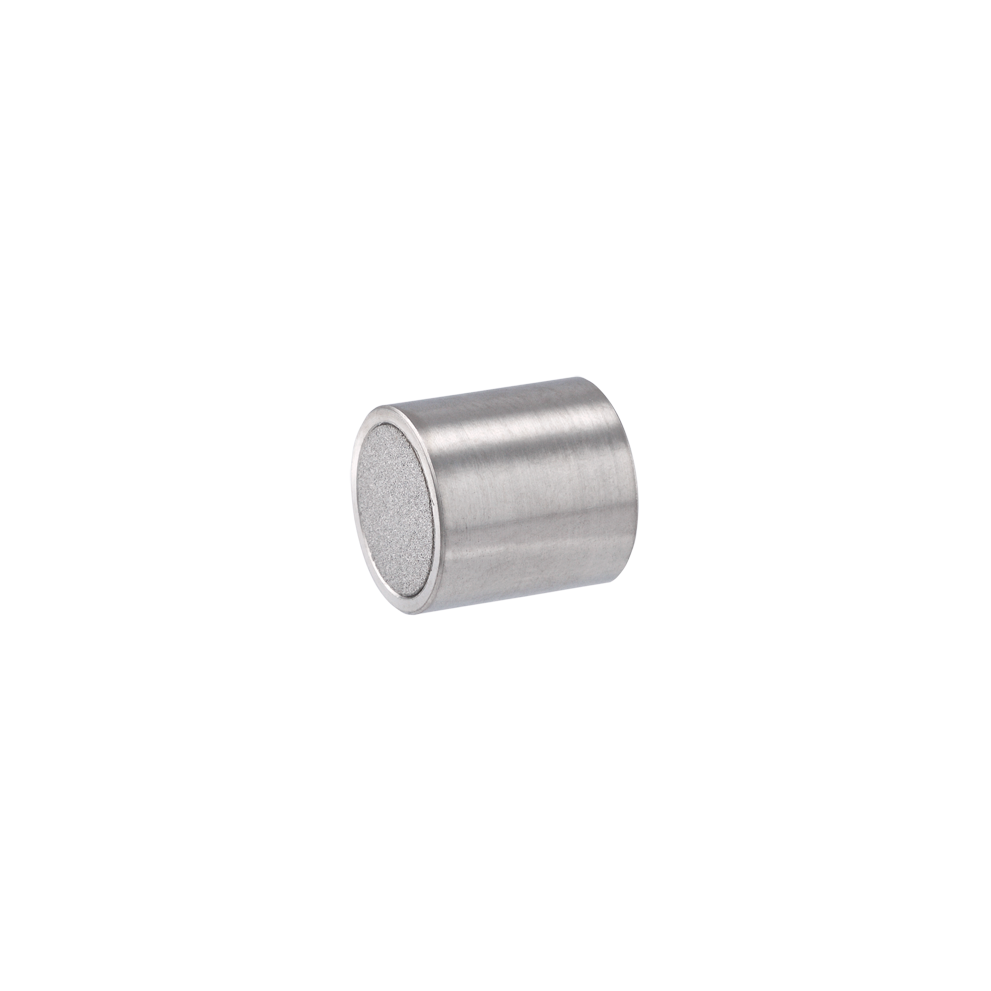

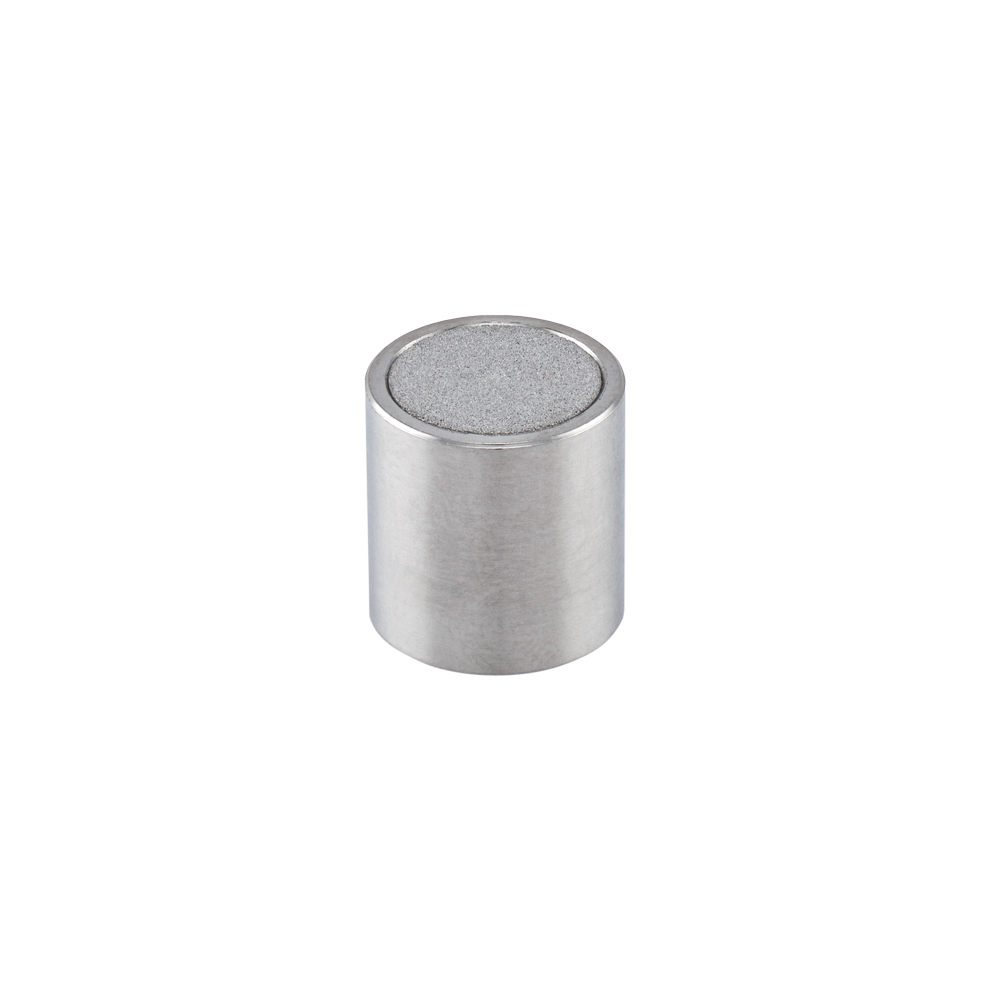

68540-SP-PG1 is packed with 5 µm NP Amino™ particles in a 10 mm ID x 10 mm guard cartridge format with a 100Å pore size. Manufactured using a three-carbon propyl ligand containing a terminal amino functional group bonded to the highest purity silica available, this stationary phase is not end capped and provides the same selectivity characteristics as Cogent NP Amino™ semi-preparative columns. Each cartridge is packed in a stainless steel tube with stainless steel frits for durability and reliable operation in purification applications.

Designed specifically to protect NP Amino™ semi-preparative columns, these guard cartridges help prevent particulate matter and strongly adsorbed contaminants from reaching the analytical bed. They are particularly useful for HILIC and Normal Phase separations involving sugars, compounds containing carboxylic acid groups, and other highly polar analytes. Routine guard cartridge replacement helps extend column life while maintaining reproducible chromatographic performance.

Key Benefits

• NP Amino™ stationary phase

• Propyl amino bonded silica

• Not end capped

• 100Å pore size

• 5 µm particle size

• Protects semi-preparative columns from contamination

• Extends semi-preparative column lifetime

• Stainless steel cartridge construction

• Stainless steel frits

• Matched chemistry to NP Amino™ semi-preparative columns

Typical Applications

• Semi-preparative HPLC

• Sugar purification

• Carbohydrate purification

• Organic acid separations

• HILIC chromatography

• Normal Phase chromatography

• Polar compound purification

• Method development

• Column protection

• Sample cleanup applications

Specifications

• Product Type: Semi-Preparative Guard Column Cartridge

• Stationary Phase: NP Amino™

• Chromatography Mode: Normal Phase / HILIC

• Particle Size: 5 µm

• Pore Size: 100Å

• Cartridge Dimensions: 10 mm ID x 10 mm

• Hardware Material: Stainless Steel

• Frit Material: Stainless Steel

• Package Quantity: 5 Cartridges

• Compatible Column Size: 10 mm ID Semi-Preparative Columns

• Brand: Cogent

Required Guard Column Holder

• Requires the Cogent 10 mm ID Semi-Preparative Guard Column Holder (Catalog Number 83000-SP-GH) for installation and use.

• See the Cogent 10 mm ID Semi-Preparative Guard Column Holder product page for complete compatibility and ordering information.

Special Order Item Information

• Please review the Special Order Item Information for complete details.

• For pricing confirmation, availability, lead times, or application assistance, please contact MICROSOLV Customer Service.

Important Notes

• Designed to protect 10 mm ID NP Amino™ semi-preparative columns

• Suitable for Normal Phase chromatography

• Suitable for HILIC applications

• Ideal for sugars and other polar compounds

• Propyl amino bonded stationary phase

• Helps prevent contamination of semi-preparative columns

• Extends column service life and reduces operating costs

• Requires the Cogent 10 mm ID Semi-Preparative Guard Column Holder (83000-SP-GH)

• Five guard cartridges per package

• Intended for semi-preparative purification workflows

• This is a Special Order Item

  ---
