Catalog Number - 68540-P30-PG1

Cogent NP Amino™ Preparative Guard Column Cartridges are designed to protect valuable preparative HPLC columns from particulate contamination and strongly retained compounds that can reduce column performance and shorten column lifetime. Manufactured using the same NP Amino™ stationary phase chemistry as the corresponding preparative column, these guard cartridges help maintain chromatographic performance while reducing the cost and downtime associated with replacing larger preparative columns.

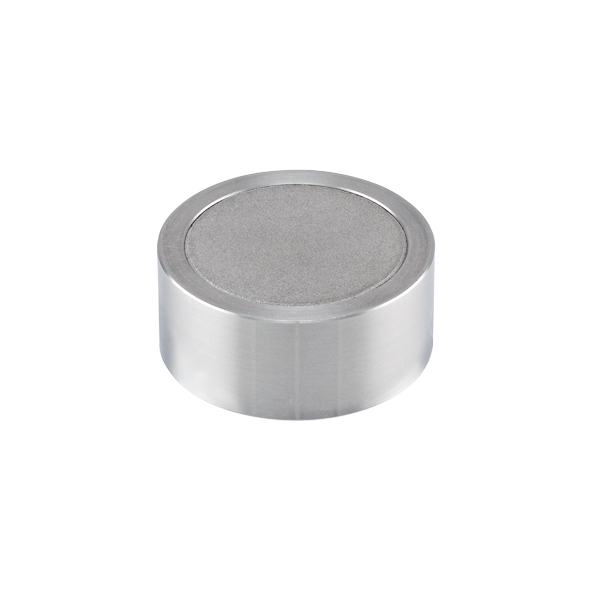

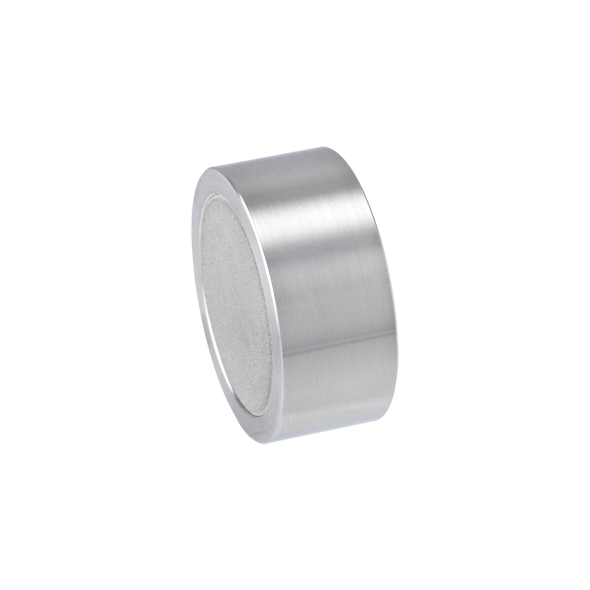

68540-P30-PG1 is packed with 5 µm NP Amino™ particles in a 30 mm ID x 10 mm guard cartridge format with a 100Å pore size. Manufactured using a three-carbon propyl ligand containing a terminal amino functional group bonded to high-purity silica, this stationary phase is not end capped and provides the same selectivity characteristics as Cogent NP Amino™ preparative columns. The stainless steel cartridge construction includes stainless steel frits for durability and reliable operation in demanding preparative chromatography applications.

This guard cartridge is intended for use with 30 mm ID Cogent NP Amino™ preparative columns used in Normal Phase and HILIC chromatography. It is particularly useful for protecting columns used for purification of sugars, compounds containing carboxylic acid functionalities, and other highly polar analytes. Routine replacement of the guard cartridge can help extend preparative column life while maintaining chromatographic efficiency and reproducibility.

Key Benefits

• NP Amino™ stationary phase

• Propyl amino bonded silica

• Not end capped

• 100Å pore size

• 5 µm particle size

• Protects preparative columns from contamination

• Extends preparative column lifetime

• Stainless steel cartridge construction

• Stainless steel frits

• Matched chemistry to NP Amino™ preparative columns

Typical Applications

• Preparative HPLC

• Guard column protection

• Sugar purification workflows

• Carbohydrate purification

• Organic acid purification

• HILIC chromatography

• Normal Phase chromatography

• Preparative method development

• Column life extension

• Sample cleanup applications

Specifications

• Product Type: Preparative Guard Column Cartridge

• Stationary Phase: NP Amino™

• Chromatography Mode: Normal Phase / HILIC

• Particle Size: 5 µm

• Pore Size: 100Å

• Cartridge Dimensions: 30 mm ID x 10 mm

• Hardware Material: Stainless Steel

• Frit Material: Stainless Steel

• Compatible Column Size: 30 mm ID Preparative Columns

• Brand: Cogent

Required Guard Column Holder

• Requires the Cogent 30 mm ID Preparative Guard Column Holder (Catalog Number 83000-P30-GH) for installation and use.

Special Order Item Information

• Please review the Special Order Item Information for complete details.

• For pricing confirmation, availability, lead times, or application assistance, please contact MICROSOLV Customer Service.

Important Notes

• Designed to protect 30 mm ID NP Amino™ preparative columns

• Suitable for Normal Phase chromatography

• Suitable for HILIC applications

• Ideal for sugars and other polar compounds

• Propyl amino bonded stationary phase

• Helps prevent contamination of preparative columns

• Extends column service life and reduces operating costs

• Requires a 30 mm ID preparative guard column holder

• Intended for preparative purification workflows

• This is a Special Order Item

  ---
