Catalog Number - 68524-P30-PG1

Cogent RP Phenyl™ Preparative Guard Column Cartridges are designed to protect preparative HPLC columns from particulates, strongly retained compounds, and other contaminants that can reduce column performance and shorten column service life. Packed with the same stationary phase as the analytical column, these cartridges help maintain chromatographic performance while reducing operating costs associated with replacing larger preparative columns.

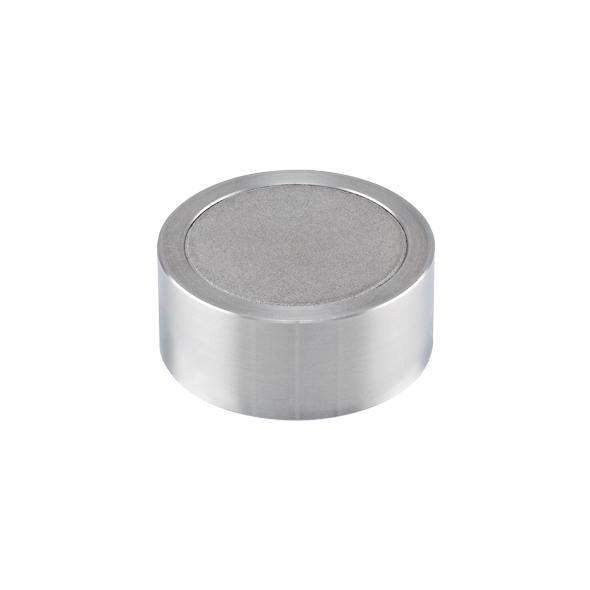

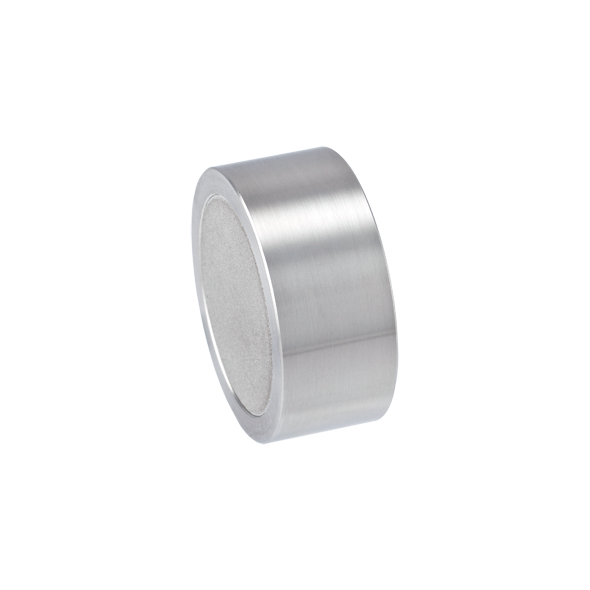

Catalog Number 68524-P30-PG1 is packed with 5 µm RP Phenyl™ stationary phase featuring a 100Å pore size. Manufactured using ultra-high purity silica with a traditional three-carbon linker and terminal Phenyl functionality, this phase is fully double end-capped to minimize secondary interactions and provide highly reproducible chromatographic performance. The cartridge is packed in a stainless steel tube with stainless steel frits and is designed to protect RP Phenyl™ preparative columns from particulate contamination and strongly retained sample components.

The 30 mm ID x 10 mm format is specifically designed for use with 30 mm ID RP Phenyl™ preparative HPLC columns. Routine guard cartridge replacement helps maintain separation efficiency, reduce downtime, and extend preparative column service life.

Key Benefits

• RP Phenyl™ stationary phase

• USP L11 equivalent chemistry

• Ultra-high purity silica support

• Fully double end-capped

• Phenyl bonded phase

• 100Å pore size

• Suitable for reversed-phase chromatography

• Protects preparative columns from contamination

• Extends column lifetime

• Stainless steel cartridge construction with stainless steel frits

Typical Applications

• Preparative HPLC

• Preparative column protection

• Positional isomer separations

• Tocopherol purification

• Flavonoid purification

• Active pharmaceutical ingredient (API) purification

• Natural product isolation

• Fraction collection

• Process development

• Routine guard cartridge replacement

Specifications

• Product Type: Preparative Guard Column Cartridge

• Stationary Phase: RP Phenyl™

• Chromatography Mode: Reversed Phase

• USP Classification: L11

• Particle Size: 5 µm

• Pore Size: 100Å

• Cartridge Dimensions: 30 mm ID x 10 mm

• Construction: Stainless Steel Cartridge

• Frit Material: Stainless Steel

• Quantity: 1 Each

• Brand: Cogent

Guard Column Requirements

• A 83000‑P30‑GH Prep Guard Column Holder for 30 mm Cogent Cartridges is required for use with this guard column cartridge.

Special Order Item Information

• Please review the Special Order Item Information for complete details.

• For pricing confirmation, availability, lead times, or application assistance, please contact MICROSOLV Customer Service.

Important Notes

• Suitable for reversed-phase chromatography

• USP L11 equivalent chemistry

• Fully double end-capped stationary phase

• Designed to protect RP Phenyl™ preparative columns from particulates and strongly retained contaminants

• Helps extend preparative column lifetime and maintain chromatographic performance

• Designed specifically for 30 mm ID preparative columns

• Requires a compatible Cogent Guard Column Holder

• Intended for routine replacement as part of preventive maintenance

• This is a Special Order Item
