Catalog Number - 68524-P21-250

Cogent RP Phenyl™ Preparative HPLC Columns are designed for high-capacity purification, preparative separations, and process development involving aromatic compounds and structurally related analytes. Manufactured using ultra-high purity silica bonded with a three-carbon linker and terminal Phenyl functionality, this stationary phase is fully double end-capped to minimize secondary interactions and provide highly reproducible chromatographic performance. RP Phenyl™ offers enhanced aromatic selectivity and is an excellent choice for preparative separations involving compounds containing phenyl rings and related structures.

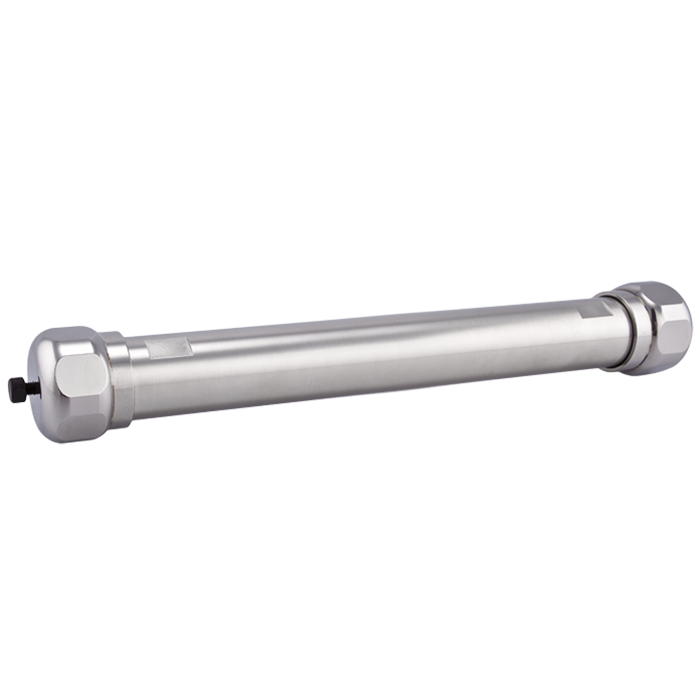

68524-P21-250 is packed with 5 µm RP Phenyl™ particles featuring a 100Å pore size in a 21.2 mm ID x 250 mm preparative format. The 5 µm particle size performs well at preparative flow rates while maintaining moderate backpressure. The large internal diameter and extended column length provide maximum loading capacity and increased resolution, making this column ideal for purification, fraction collection, and analytical-to-preparative method scale-up.

The 21.2 mm ID x 250 mm format is particularly well suited for purification of positional isomers, tocopherols, flavonoids, polynuclear aromatic hydrocarbons, nitro-aromatic compounds, active pharmaceutical ingredients (APIs), natural products, and related compounds containing aromatic structures. Typical operating flow rates are approximately 15–25 mL/min depending on mobile phase composition, system pressure limitations, and application requirements. A specialized preparative HPLC system capable of supporting these flow rates and sample loads is required.

Key Benefits

• RP Phenyl™ stationary phase

• USP L11 equivalent chemistry

• Ultra-high purity silica support

• Fully double end-capped

• Phenyl bonded phase

• 100Å pore size

• Suitable for reversed-phase chromatography

• Enhanced aromatic selectivity

• High sample loading capacity

• Ideal for preparative purification and method scale-up

Typical Applications

• Preparative purification

• Positional isomer separations

• Tocopherol purification

• Flavonoid purification

• Polynuclear aromatic hydrocarbon separations

• Nitro-aromatic compound purification

• Active pharmaceutical ingredient (API) purification

• Natural product isolation

• Fraction collection

• Method scale-up and process development

Specifications

• Product Type: Preparative HPLC Column

• Stationary Phase: RP Phenyl™

• Chromatography Mode: Reversed Phase

• USP Classification: L11

• Particle Size: 5 µm

• Pore Size: 100Å

• Column Dimensions: 21.2 mm ID x 250 mm

• Recommended Flow Rate: 15–25 mL/min

• Column Hardware: Stainless Steel

• Brand: Cogent

Special Order Item Information

• Please review the Special Order Item Information for complete details.

• For pricing confirmation, availability, lead times, or application assistance, please contact MICROSOLV Customer Service.

Important Notes

• Suitable for reversed-phase chromatography

• USP L11 equivalent chemistry

• Fully double end-capped stationary phase

• Excellent selectivity for aromatic compounds

• Ideal for purification of compounds containing phenyl ring structures

• High loading capacity for preparative applications

• Typical operating range is approximately 15–25 mL/min

• Requires a specialized preparative HPLC system

• Well suited for purification, fraction collection, and analytical-to-preparative method scale-up

• This is a Special Order Item
