Catalog Number - 68524-P21-1503M

Cogent RP Phenyl™ Wide Pore Preparative HPLC Columns are designed for high-capacity purification, preparative separations, and process development involving larger aromatic compounds and structurally related analytes. Manufactured using ultra-high purity silica bonded with a three-carbon linker and terminal Phenyl functionality, this stationary phase is fully double end-capped to minimize secondary interactions and provide highly reproducible chromatographic performance. The 300Å wide pore structure improves analyte accessibility for larger molecules while maintaining the unique aromatic selectivity characteristic of RP Phenyl™ chemistry.

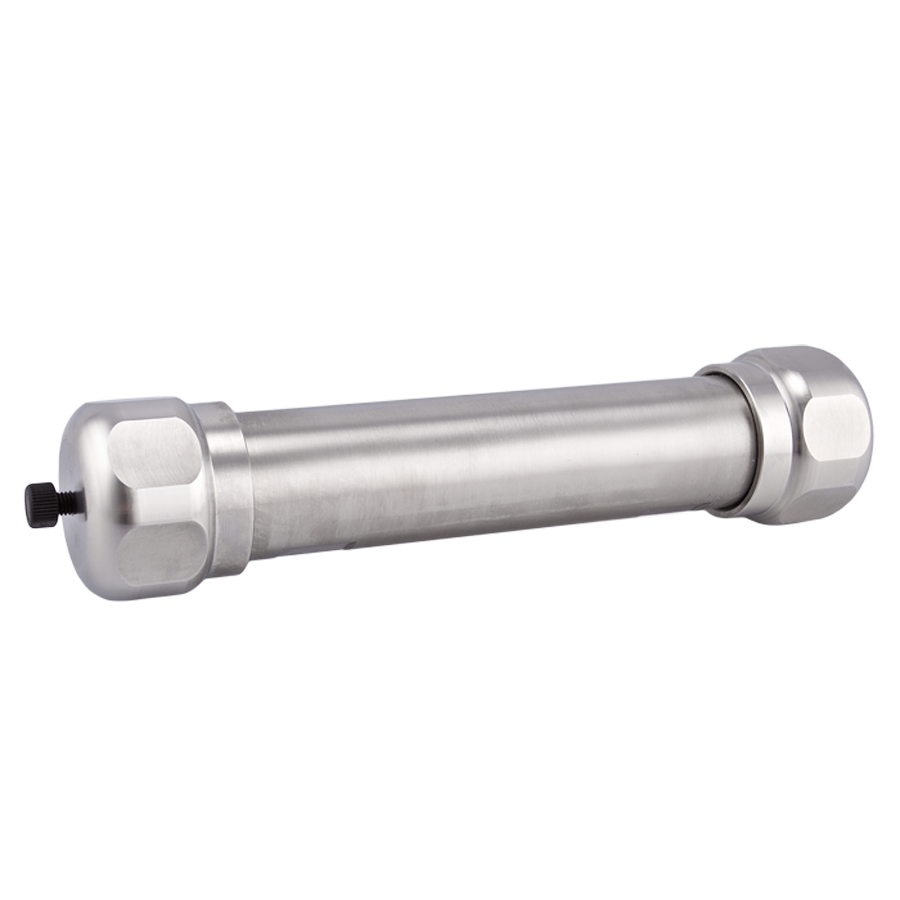

68524-P21-1503M is packed with 5 µm RP Phenyl™ Wide Pore particles in a 21.2 mm ID x 150 mm preparative format. The combination of 5 µm particles and 300Å pores provides efficient mass transfer for larger compounds while supporting preparative flow rates with manageable operating pressures. The large internal diameter and longer column length provide both high loading capacity and enhanced resolution, making this column well suited for demanding purification applications.

The 21.2 mm ID x 150 mm format is ideal for purification of larger positional isomers, tocopherols, flavonoids, polynuclear aromatic hydrocarbons, nitro-aromatic compounds, active pharmaceutical ingredients (APIs), natural products, peptides, and related aromatic compounds. Typical operating flow rates are approximately 15–25 mL/min depending on mobile phase composition, system pressure limitations, and application requirements. A specialized preparative HPLC system capable of supporting these flow rates and sample loads is required.

Key Benefits

• RP Phenyl™ Wide Pore stationary phase

• USP L11 equivalent chemistry

• Ultra-high purity silica support

• Fully double end-capped

• Phenyl bonded phase

• 300Å pore size

• Suitable for reversed-phase chromatography

• Enhanced aromatic selectivity

• Improved accessibility for larger molecules

• High sample loading capacity

Typical Applications

• Preparative purification

• Large positional isomer separations

• Tocopherol purification

• Flavonoid purification

• Polynuclear aromatic hydrocarbon separations

• Nitro-aromatic compound purification

• Active pharmaceutical ingredient (API) purification

• Natural product isolation

• Peptide purification

• Method scale-up and process development

Specifications

• Product Type: Preparative HPLC Column

• Stationary Phase: RP Phenyl™ Wide Pore

• Chromatography Mode: Reversed Phase

• USP Classification: L11

• Particle Size: 5 µm

• Pore Size: 300Å

• Column Dimensions: 21.2 mm ID x 150 mm

• Recommended Flow Rate: 15–25 mL/min

• Column Hardware: Stainless Steel

• Brand: Cogent

Special Order Item Information

• Please review the Special Order Item Information for complete details.

• For pricing confirmation, availability, lead times, or application assistance, please contact MICROSOLV Customer Service.

Important Notes

• Suitable for reversed-phase chromatography

• USP L11 equivalent chemistry

• Fully double end-capped stationary phase

• Wide pore design improves accessibility for larger molecules

• Excellent for purification of peptides, natural products, APIs, and other large aromatic compounds

• High loading capacity for preparative applications

• Typical operating range is approximately 15–25 mL/min

• Requires a specialized preparative HPLC system

• Well suited for purification, fraction collection, and analytical-to-preparative method scale-up

• This is a Special Order Item
