Prep Guard Column Cartridge, RP Phenyl Wide Pore, 10um, 300A. 21.2mm ID x 10mm Length. Cogent Brand. 1 EA.
Additional Information:
Cogent RP Phenyl Wide Pore Guard Column Cartridges are packed with the same C3-phenyl bonded stationary phase used in Cogent RP Phenyl Wide Pore preparative columns. Manufactured with high-purity silica and exhaustive double endcapping, these cartridges provide the aromatic selectivity and π-π interaction characteristics that make RP Phenyl an effective choice when C18 or C8 phases do not provide sufficient resolution of aromatic, structurally related, or larger molecular weight compounds.

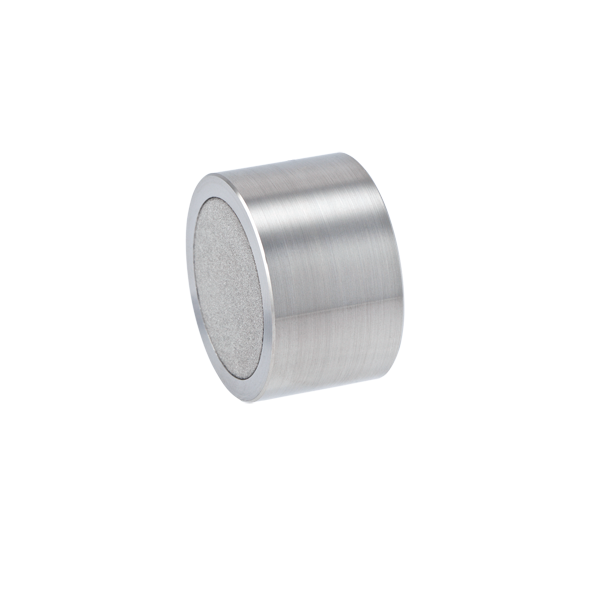

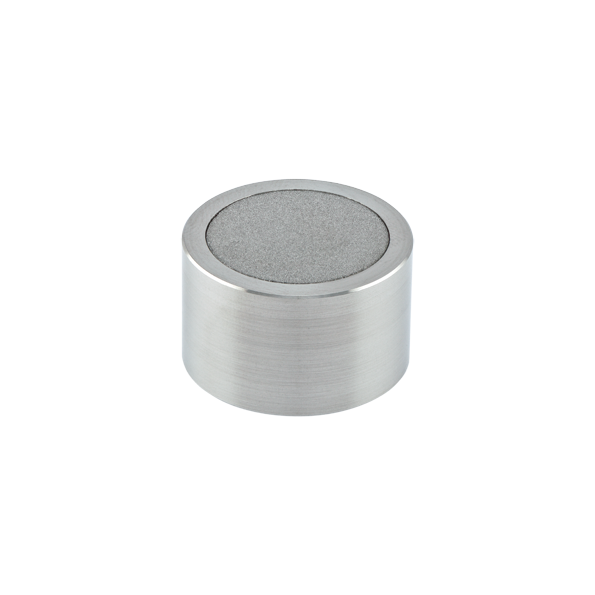

68024-P21-PG1-3 is a preparative guard column cartridge packed with 10 µm RP Phenyl Wide Pore particles featuring a 300 Å pore size in a 21.2 mm ID x 10 mm format. Installed ahead of the preparative column, the cartridge helps capture particulates, strongly retained contaminants, and sample matrix components before they reach the analytical bed. This protection helps maintain column efficiency, improve reproducibility, and extend the service life of the primary column.
The wide pore design is particularly suitable for larger molecules and peptide-related applications while maintaining RP Phenyl selectivity. The cartridge is constructed from stainless steel tubing with stainless steel frits and is designed for use with compatible 21.2 mm ID RP Phenyl Wide Pore preparative columns.
Key Benefits
RP Phenyl Wide Pore stationary phase
C3-phenyl bonded chemistry
Strong π-π interaction selectivity
300 Å pore size for larger molecules and peptides
High-purity silica support
Fully double endcapped
Helps protect preparative columns from contaminants
Maintains chromatographic performance
Stainless steel cartridge construction
Designed for preparative HPLC applications
Typical Applications
Preparative HPLC purification
Fraction collection
Peptide purification
Aromatic compound purification
Active pharmaceutical ingredient (API) purification
Natural product purification
Process development
Method scale-up
Column protection
High-loading preparative workflows
Specifications
Product Type: Preparative Guard Column Cartridge
Stationary Phase: RP Phenyl Wide Pore
Chromatography Mode: Reversed Phase
Bonded Phase: C3-Phenyl
Endcapping: Fully Double Endcapped
Particle Size: 10 µm
Pore Size: 300 Å
Cartridge Dimensions: 21.2 mm ID x 10 mm
Hardware Material: Stainless Steel
Frit Material: Stainless Steel
Quantity: 1 EA
Brand: Cogent
Guard Column Holder Requirement
A Cogent 21.2 mm ID Preparative Guard Column Holder is required for use with this guard cartridge.
View the Cogent 21.2 mm ID Preparative Guard Column Holder (83000-P21-GH)
Additional Resources
Special Order Item Information
Important Notes
Designed to protect RP Phenyl Wide Pore preparative HPLC columns
Wide pore design is suitable for larger molecules and peptides
Matching stationary phase helps maintain chromatographic selectivity
Recommended for routine purification and scale-up workflows
Replace as needed based on sample cleanliness and operating conditions
Requires a compatible 21.2 mm ID preparative guard column holder
