Column Filters, for HPLC, 2.0 um Stainless Steel filter element and All-PEEK body. Disposable, with end plugs. Natural. Cogent Brand. 10/PK.
Additional Info:
The Cogent In‑Line Column Filter (2.0 µm) in the 10‑pack configuration is a cost‑effective solution for laboratories that require routine pre‑column protection with minimal pressure impact. These disposable in‑line filters are designed to protect analytical HPLC columns from undissolved particulates and pump‑seal shedding, helping preserve column performance and extend column life.
Each unit features a 2.0 µm stainless steel filter element housed in a natural‑color all‑PEEK body, providing excellent chemical compatibility and a metal‑free flow path outside the filter element. The larger pack size reduces reordering frequency and lowers per‑unit cost, making it ideal for high‑throughput or production environments.

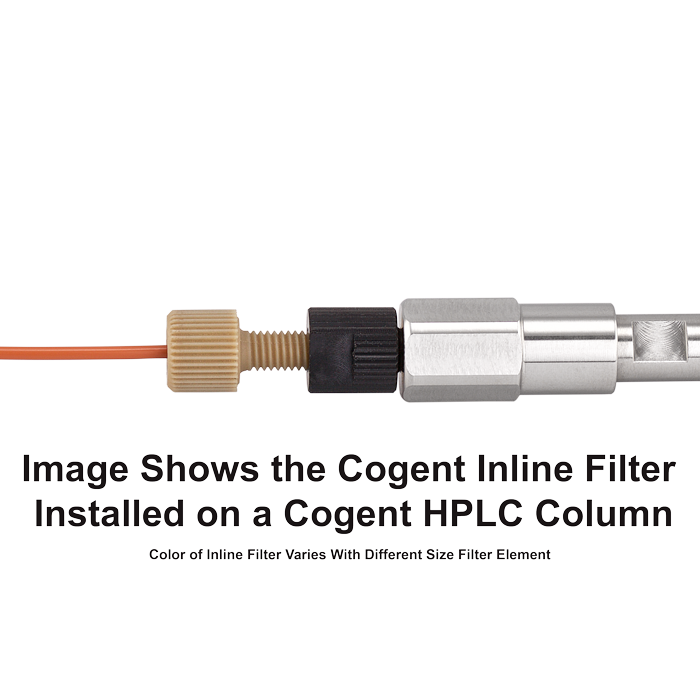

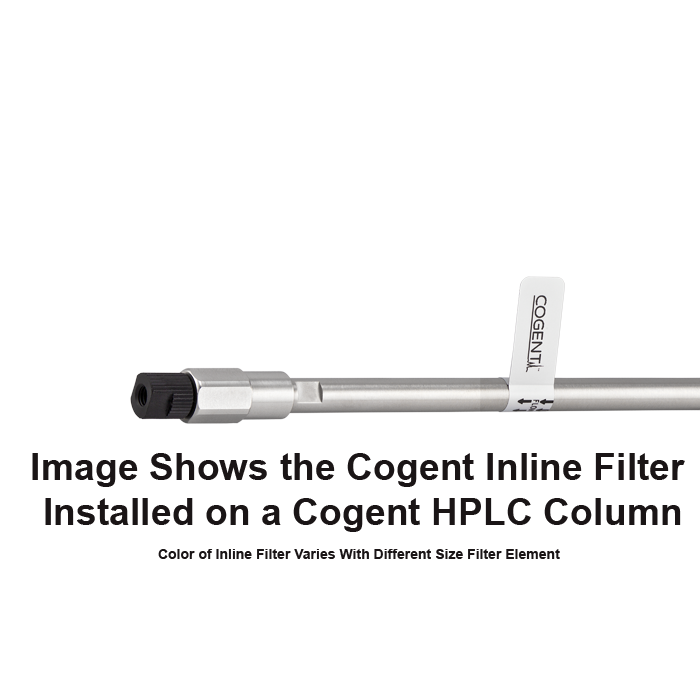

The universal connection design fits all standard analytical HPLC column threads and pilot lengths. Installation is straightforward using hand tightening or a wrench, enabling fast replacement during routine maintenance.
Key Features
Effective Pre‑Column Protection
Prevents particulates from entering the analytical column
Reduces risk of frit blockage and column damage
Supports longer column lifetime and consistent performance
2.0 µm Stainless Steel Filter Element
Optimized for lower flow restriction than finer‑pore filters
Ideal for cleaner samples or pressure‑sensitive methods
Maintains stable backpressure profiles
All‑PEEK Disposable Housing
Broad chemical compatibility
Lightweight, corrosion‑resistant design
Disposable—no cleaning or regeneration required
Universal HPLC Connection
Fits all analytical HPLC column threads and pilot lengths
Compatible with hand‑tight or wrench installation
Easily integrated into existing HPLC systems
High‑Value Pack Size

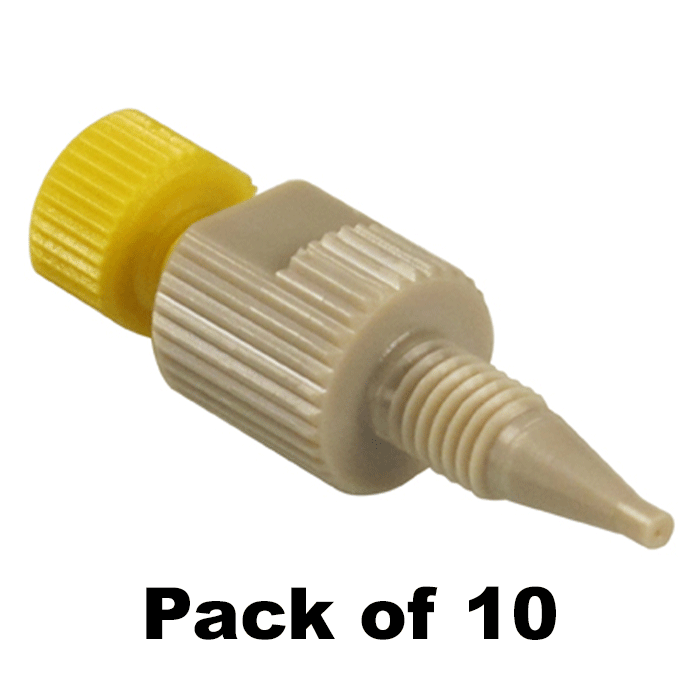

10 filters per package
Lower cost per unit compared with smaller packs
Suited for high‑use laboratories
Usage & Replacement Guidance
Monitor system backpressure when in‑line filters are installed. A gradual pressure increase typically indicates filter loading.
Replacement steps:
Reduce system pressure to atmospheric
Disconnect the used filter
Dispose of the unit
Install a new filter and resume operation
These devices are commonly referred to as pre‑column filters due to their upstream placement.
Pressure Rating & Compatibility
Maximum pressure: 4,500 psi
Compatible with: Analytical HPLC systems
Not recommended for: UHPLC pressure ranges
A 0.5 µm version is available when finer particulate retention is required.
Typical Applications
Routine analytical HPLC
Cleaner sample matrices
Method development and validation
Column life‑extension programs
High‑throughput laboratory operations
