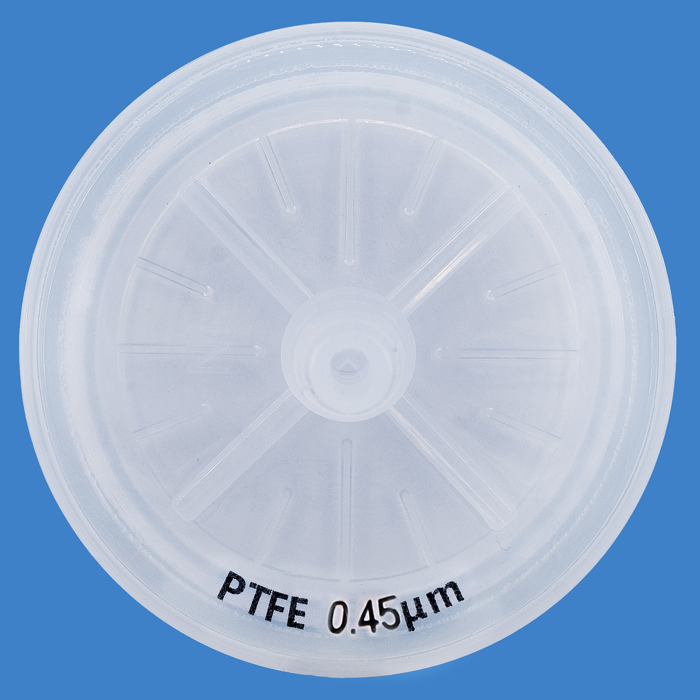

Capsule venting filter, 0.45 um hydrophobic PTFE membrane, filtration area of 20 cm2 in 64 mm OD polypropylene housing. Hose barb connections. Non sterile. Antarisz brand. 20/PK.
Additional Info:
The CS10-58650-45V Antarisz™ Capsule Vent Filters are high-performance hydrophobic membrane filters designed for laboratory venting, gas exchange, and vacuum protection applications. Featuring a 0.45 µm hydrophobic PTFE membrane, these filters provide high airflow with effective particulate and microbial reduction, making them ideal for venting systems where maximum throughput is required.
Hydrophobic PTFE membranes resist moisture and aggressive chemicals, preventing liquid intrusion while enabling efficient airflow. Compared to 0.22 µm vent filters, the 0.45 µm pore size provides higher airflow (≈8 L/min at 0.2 bar), making it ideal for applications prioritizing flow over sterile filtration.
The 20 cm² filtration area supports low back pressure and efficient gas exchange, while the lightweight polypropylene capsule design prevents tubing restriction in carboy and vessel venting setups.
These filters are autoclavable (≥20 cycles at 121°C) and provide validated bacterial retention (Serratia marcescens LRV >7), ensuring reliable performance in demanding laboratory environments.
Key Features
0.45 µm Hydrophobic PTFE Membrane
Ideal for high-flow venting and particulate reduction
Higher airflow vs. 0.22 µm membranes
High Airflow Performance
~8 L/min at 0.2 bar
Minimizes pressure buildup in systems
Large Filtration Area (20 cm²)
Enhances airflow efficiency
Reduces back pressure
Excellent Chemical Resistance
Compatible with solvents, acids, and bases
Suitable for harsh environments
Autoclavable & Durable
≥20 sterilization cycles at 121°C
Designed for repeated use
Lightweight Capsule Design
Prevents tubing kinks and restriction
Easy system integration
Validated Bacterial Retention
Serratia marcescens LRV >7
Effective contamination control
Flexible Connection Options

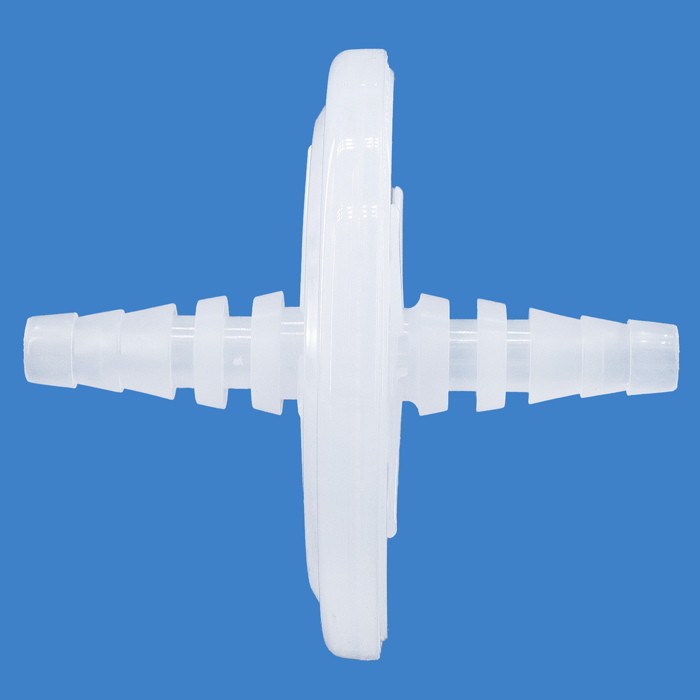

1/4–3/8" stepped hose barb
Optional 1/8" MNPT
Typical Applications
Bioreactor & Fermentation Venting – high-flow gas exchange
Carboy & Media Bottle Venting – pressure equalization and contamination control
Vacuum Line Protection – prevents particulate ingress
Cell Culture Gas Purge – non-sterile high-flow applications
Filling Systems – particulate removal and venting
HPLC Solvent Venting – container venting and air exchange
Specifications
Filter Type: Capsule Vent Filter
Membrane Material: PTFE (Hydrophobic)
Pore Size: 0.45 µm
Filtration Area: 20 cm²
Housing Material: Polypropylene (PP)
Outer Diameter: 64 mm
Connections: 1/4–3/8" hose barb / optional 1/8" MNPT
Air Flow Rate: ~8 L/min @ 0.2 bar
Bubble Point (60% IPA): >0.5 bar
Max Operating Temp: 121°C
Autoclave Cycles: ≥20
Bacterial Retention: Serratia marcescens LRV >7
Endotoxin Level: <0.25 EU/mL
Sterility: Non-sterile
Biosafety: USP Class VI
Pack Size: 20/PK
Brand: Antarisz™
