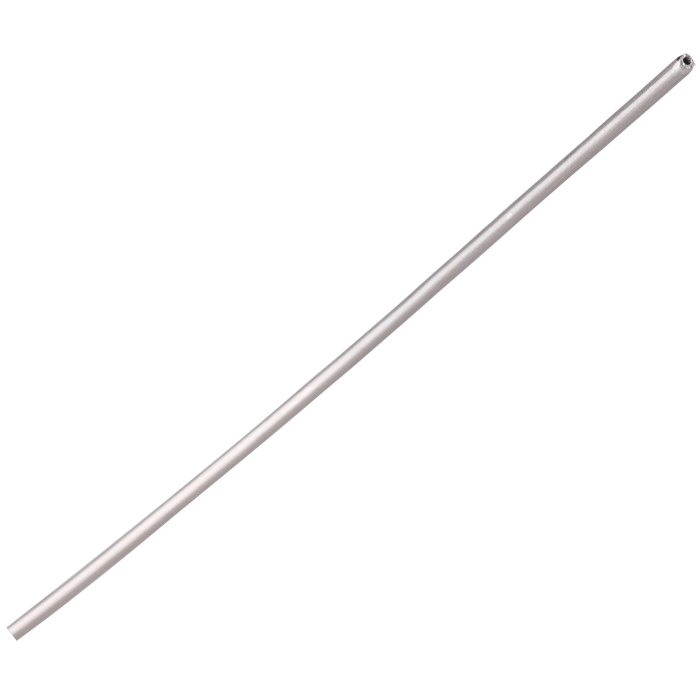

Tubing, Stainless Steel, 0.040 inch (1.00 mm) ID, 1/16 inch (1.60 mm) OD, HPLC grade, 1 meter roll, ARE-Applied Research brand. 1 EA.
Additional Information:
ARE-Applied Research HPLC Grade Stainless Steel tubing is manufactured from high-purity 316L stainless steel and is designed for demanding high-pressure liquid chromatography applications. Welded and annealed for consistent performance, this tubing is manufactured and tested according to EN 10217-7 standards, providing the strength, dimensional accuracy, and reliability required for modern analytical laboratories.
49440-COIL-1M is supplied as a 1-meter continuous length with a 0.040 inch (1.00 mm) internal diameter and a 1/16 inch (1.60 mm) outer diameter. The large internal diameter provides significantly increased flow capacity and reduced flow restriction compared to smaller-bore tubing, making it suitable for solvent delivery, sample transfer, preparative chromatography support applications, and other laboratory fluid pathways where higher flow rates are required.
The corrosion-resistant 316L stainless steel construction provides excellent compatibility with a wide range of chromatographic mobile phases while maintaining exceptional mechanical strength. With a maximum pressure rating of 8,100 psi (558.47 bar) and a maximum operating temperature of 400°C, this tubing is well suited for HPLC and other laboratory applications requiring reliable fluid transport under demanding conditions.
Key Benefits
HPLC-grade 316L stainless steel construction
Manufactured and tested to EN 10217-7 standards
Large internal diameter for increased flow capacity
Maximum pressure rating of 8,100 psi (558.47 bar)
Excellent corrosion resistance
Suitable for custom fluid pathways
High temperature resistance up to 400°C
Durable welded and annealed construction
Typical Applications
HPLC systems
Solvent transfer lines
Sample transfer pathways
Detector connections
Analytical fluid pathways
Method development systems
High-flow chromatography applications
System optimization and replacement tubing
Specifications
Product Type: Stainless Steel Tubing
Material: 316L Stainless Steel
Internal Diameter: 0.040 in. (1.00 mm)
Outer Diameter: 1/16 in. (1.60 mm)
Length: 1 Meter
Configuration: Continuous Length
Maximum Pressure: 8,100 psi (558.47 bar)
Maximum Temperature: 400°C
Wall Thickness: 0.287 mm
Manufacturing Standard: EN 10217-7
Dimensional Tolerance: ±0.05 mm
Brand: ARE-Applied Research
Resources
Important Notes
Designed for HPLC and laboratory fluid transfer applications
Welded and annealed stainless steel construction
Large-bore tubing supports higher flow rates
Manufactured from corrosion-resistant 316L stainless steel
Maximum pressure rating of 8,100 psi
Maximum operating temperature of 400°C
Precision dimensional tolerances of ±0.05 mm
Suitable for analytical and preparative fluid pathways
