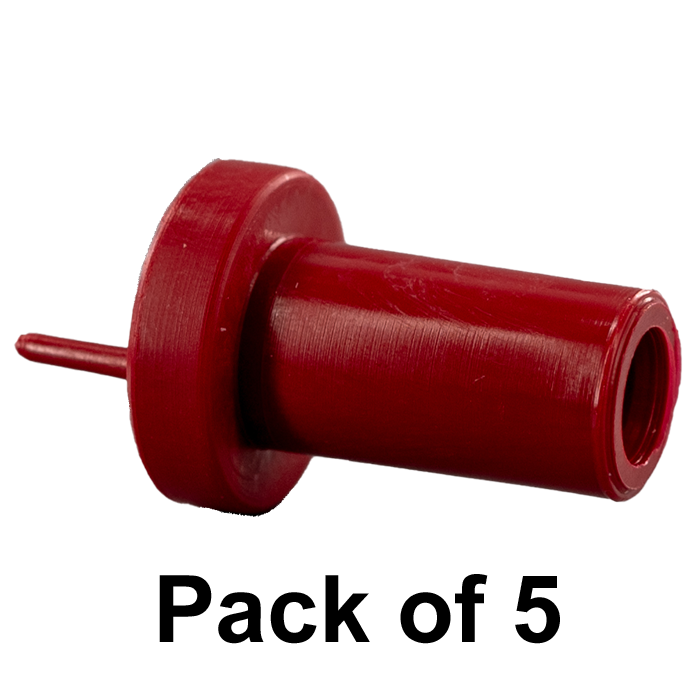

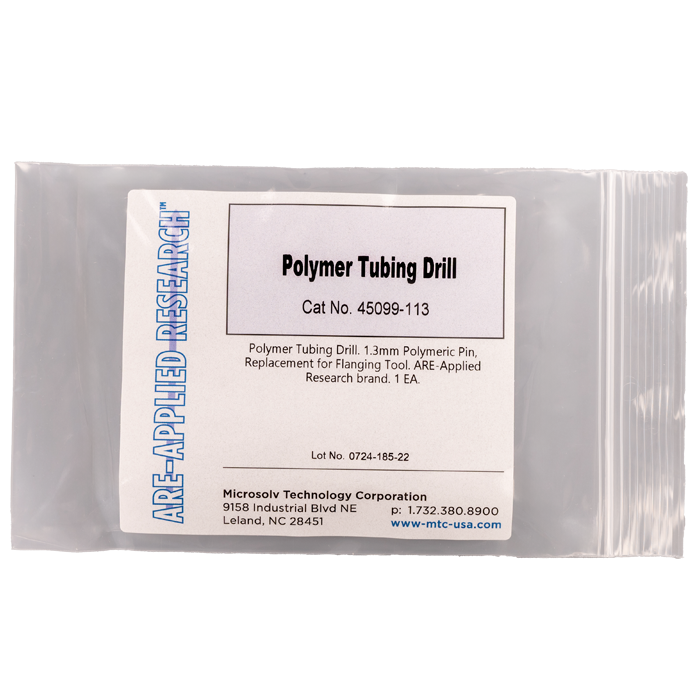

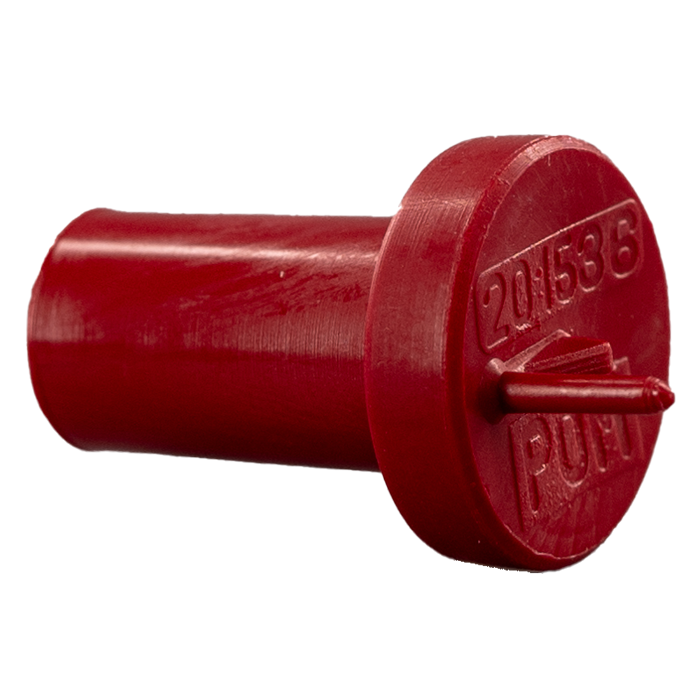

Polymer Tubing Drill. 1.3mm Polymeric Pin, Replacement for Flanging Tool. ARE-Applied Research brand. 5/PK.
Additional Info:
The 45099‑113‑005 Polymer Tubing Flanging Drills (5‑Pack) are precision replacement components designed for use with the MICROSOLV Flanging Tool, enabling controlled and repeatable cold flanging of polymer (plastic) tubing tips—particularly for larger internal diameter (ID) tubing.
Each drill features a 1.3 mm polymeric pin, providing maximum internal support within this drill range during the flaring process. This support is essential when working with larger tubing sizes, where maintaining geometry during deformation is critical for achieving a uniform, stable flange.
The polymeric pin material is specifically designed to:
Reduce mechanical stress during flaring
Minimize deformation of softer tubing materials
Maintain consistent and repeatable flange geometry
When used with the flanging tool, this drill produces mechanically formed (cold‑formed) flares, eliminating heat‑related variability and resulting in:
Improved dimensional stability
Reduced tubing distortion
Reliable, repeatable sealing surfaces
The 5‑pack configuration ensures consistent availability for routine maintenance and multi‑user laboratory environments, reducing downtime and maintaining workflow efficiency.
Why Choose the 1.3 mm Polymeric Pin Drill
This drill is typically selected when:
Working with large ID polymer tubing
Maximum internal support is required during flaring
Expanding beyond standard flanging tool kit capabilities
Reliable, repeatable flange geometry is critical
The 1.3 mm pin provides the highest level of internal support in the polymer drill series, making it ideal for larger bore tubing and higher‑flow applications.
Key Features
Designed for Larger Polymer Tubing
Compatible with PTFE, FEP, PFA, ETFE, and similar materials
Optimized for larger internal diameter tubing
Ensures consistent flaring performance
Polymeric Pin Construction
1.3 mm polymeric pin
Provides enhanced internal support
Minimizes tubing deformation during flaring
Compatible with Flanging Tool Systems
Designed for MICROSOLV flanging tools
Maintains precision and repeatability
Supports consistent lab workflows
Cold‑Forming Flare Technology
Mechanical flaring (no heat required)
Produces stable, durable tubing flares
Improves connection reliability
Bulk Efficiency
5‑pack configuration for routine use
Ideal for multi‑user environments
Ensures availability across workstations
Typical Applications
Flanging large ID polymer tubing
Replacement of flanging tool drill components
Expanding flanging tool system capabilities
Low‑pressure chromatography and fluidic systems
Laboratory tubing preparation workflows
