Catalog Number - 58847-01-002

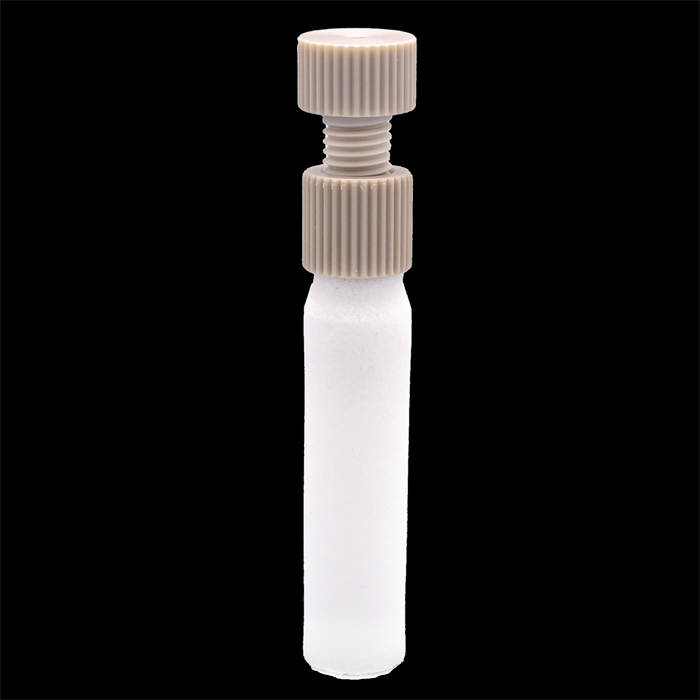

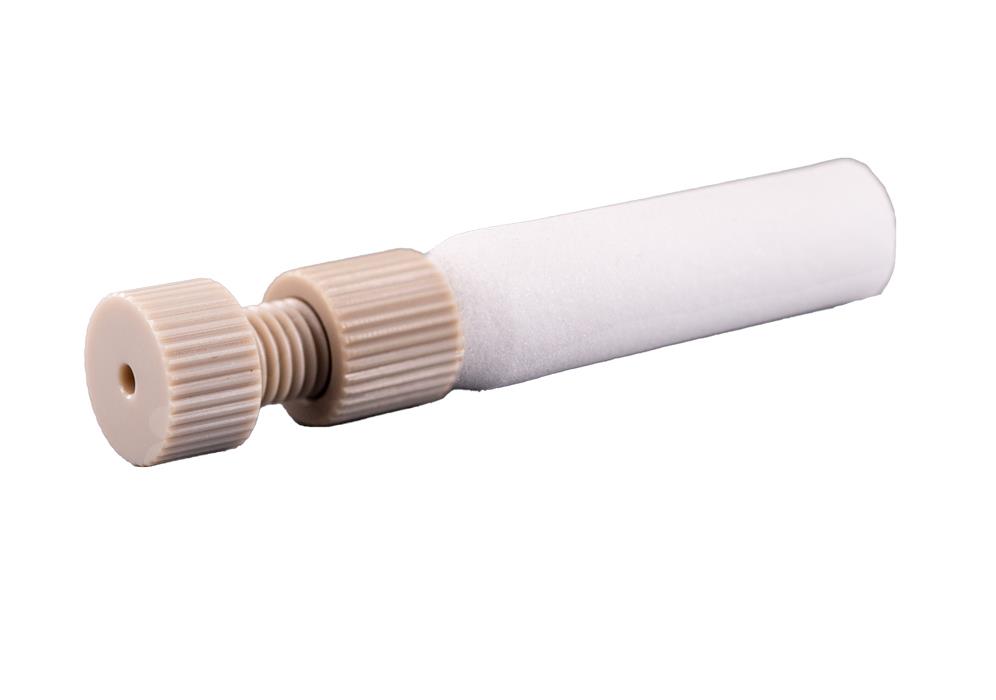

The 58847-01-002 EPP‑Porous Products Mobile Phase Filter is a polyethylene solvent pickup filter designed for HPLC reservoirs, providing high particle capacity, low flow resistance, and reliable system protection.

With a 20 µm porosity, it removes large undissolved particles, helping protect pumps, columns, and instruments. The white filter body allows easy visual detection of trapped debris, while the low resistance design ensures efficient solvent flow compared to finer filters.

Designed for 1/16 inch (1.6 mm) tubing, the unit includes PEEK-compatible connection components for secure, repeatable use. The soft, replaceable filter element supports easy maintenance and long-term operation.

Key Features

20 µm High‑Capacity Filtration

• Removes undissolved particulates

• Protects HPLC pumps and columns

Low Flow Resistance

• Less restriction than finer filters (2 µm, 10 µm)

• Improves solvent uptake efficiency

Visible Contamination Monitoring

• White filter body allows quick particle inspection

Biocompatible Polyethylene Design

• Broad solvent compatibility

• Durable and reliable

1/16 Inch Connection Compatibility

• Fits standard HPLC tubing systems

• Includes PEEK connection components

Reusable & Replaceable Element

• Soft filter is easy to remove and replace

• Supports continuous operation

Simple Installation

• Insert tubing and tighten by hand

• Place in reservoir bottle → connect to pump

• Optional sparging with low‑pressure He or N₂

Available Product & Replacement Options

• Economical Pack of 5 Polyethylene Mobile Phase Inlet Filters, 20 µm, 1/16 Inch Connection

• Replacement Elements for Polyethylene Mobile Phase Inlet Filters, 20 µm (PEEK Connector Compatible)

Specifications

• Type: Mobile Phase Inlet / Solvent Pickup Filter

• Material: Polyethylene

• Pore Size: 20 µm

• Connection Size: 1/16 inch (1.6 mm)

• Color: White

• Compatibility: HPLC solvent reservoirs and pump inlet systems

• Included Components: ETFE ferrule, low‑pressure male nut connector

• Brand: EPP‑Porous Products

Typical Applications

HPLC solvent filtration, mobile phase preparation, pump protection, laboratory fluid handling, and high‑capacity inlet filtration workflows
