Catalog Number - 58835-20-002

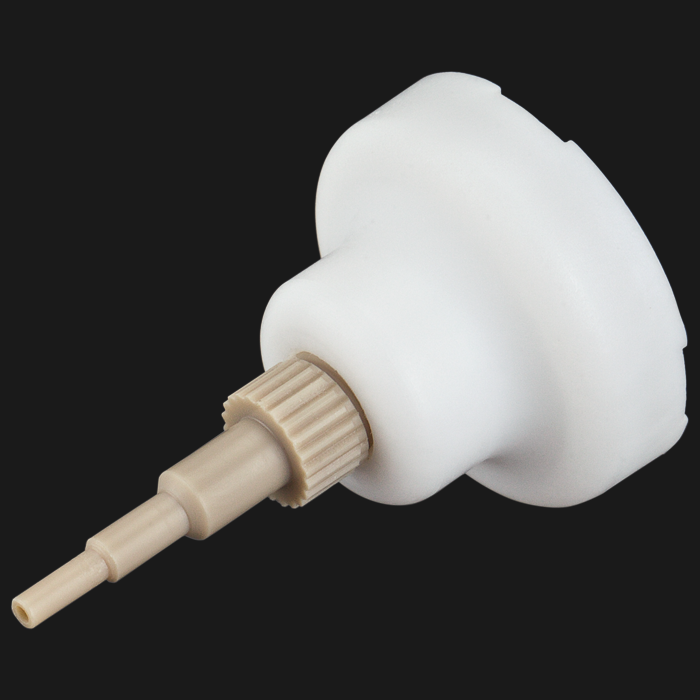

58835-20-002 ARE‑Applied Research Mobile Phase Inlet Filters are high‑capacity, economy solvent filtration devices engineered for HPLC, UHPLC, and LC‑MS mobile phase delivery systems, delivering maximum solvent recovery, ultra‑low flow restriction, and dependable protection of critical instrument components.

These filters feature a “Last Drop” flat bottom‑draw design, enabling nearly complete withdrawal of solvent from reservoir bottles—an essential advantage for high‑throughput workflows, bulk solvent usage, and long unattended runs.

Each filter incorporates a 10 µm stainless steel filter element combined with PEEK / PTFE structural components, offering exceptional durability, chemical resistance, and long service life in demanding analytical environments.

✅ Explore bulk pack options for high‑volume workflows and lab standardization

“Last Drop” Design – Maximum Solvent Utilization

• Wide 22 mm flat filter geometry

• Designed to rest at the lowest point in the bottle

• Draws solvent to near‑empty conditions

• Minimizes waste and prevents pump starvation

✅ Ideal for high‑volume solvent use and extended analytical sequences

✅ Improves efficiency and solvent cost control

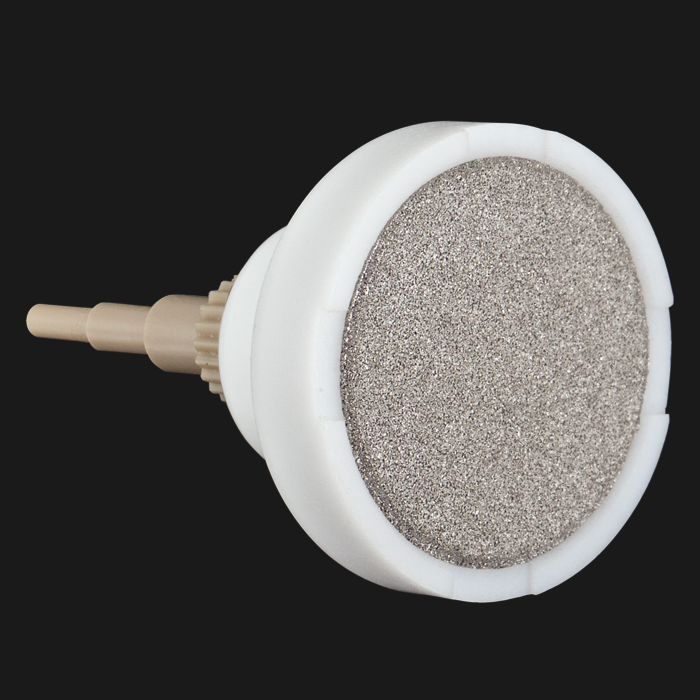

10 µm Stainless Steel Element – Ultra‑High Flow Capacity

• Filters particles ≥ 10 µm

• Protects:

  • Pump seals and check valves

  • Injection systems

  • HPLC columns and detectors

• Stainless steel media provides:

  • Maximum flow capacity

  • Minimal flow restriction

  • Exceptional mechanical strength and longevity

✅ Ideal for high‑flow systems and pre‑filtered solvents

PEEK / PTFE Construction – Durable & Chemically Compatible

• Structural materials:

  • PEEK (polyether ether ketone)

  • PTFE (inert fluoropolymer)

• Provides:

  • Chemical resistance to common HPLC solvents

  • Robust, long‑lasting performance

  • Stable operation under demanding conditions

✅ Suitable for analytical and routine laboratory workflows

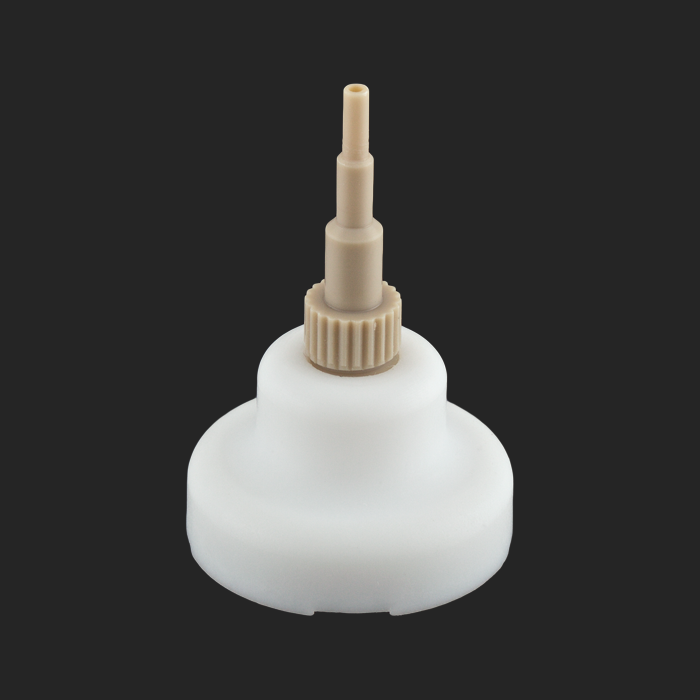

Tripod Connector – Universal, Tool‑Free Integration

• All‑PEEK tripod tubing connector

• Accepts:

  • 1/16" OD tubing

  • 1/8" OD tubing

• No ferrules or nuts required

• Simple push‑fit connection

✅ Enables fast setup and flexible system configuration across tubing sizes

Economy Configuration – Cost‑Effective Performance

• Simplified design with integrated connector

• Lower cost per unit compared to premium configurations

• Maintains:

  • High filtration capacity

  • Maximum solvent recovery

  • Reliable system protection

✅ Ideal for budget‑conscious labs and high‑volume operations

Performance Advantages – High‑Flow Chromatography Systems

Compared to smaller pore inlet filters:

• Lowest restriction for maximum throughput

• Reduced clogging risk in demanding workflows

• Stable solvent delivery at high flow rates

• Extended intervals between maintenance

✅ Aligns with best practices for high‑efficiency chromatography systems

System Compatibility & Use

Designed for use with:

• HPLC / UHPLC mobile phase systems

• LC‑MS solvent delivery systems

• Low‑pressure tubing configurations (1/16" and 1/8")

• Standard mobile phase reservoir bottles

✅ Installs directly into mobile phase bottles for inline filtration

Typical Applications

• High‑flow HPLC mobile phase filtration

• Bulk solvent preparation and delivery

• LC‑MS solvent protection

• Pre‑filtered solvent workflows

• Routine analytical and QC laboratories

• Long‑duration and unattended runs

• Integrated into original equipment manufacturer (OEM) product designs

Important Usage Notes

• Designed for low‑pressure systems only

• Ensure tubing is fully seated on tripod connector

• Inspect filter element regularly for buildup

• Replace when flow performance declines
