Catalog Number - 48220-09-002

The 48220-09-002 Mobile Phase Filters are high-capacity 316L stainless steel solvent inlet filters designed for efficient removal of large particulates and consistent solvent flow in HPLC systems. Engineered for durability and high throughput, they help protect pumps, columns, and instrumentation from contamination.

The 20 µm pore size removes larger undissolved particles while delivering ultra-low backpressure compared to 2 µm, 5 µm, or 10 µm filters, improving solvent uptake and vacuum efficiency.

Each filter is passivated with a 30% nitric acid treatment, enhancing corrosion resistance and ensuring compatibility with a wide range of HPLC mobile phases.

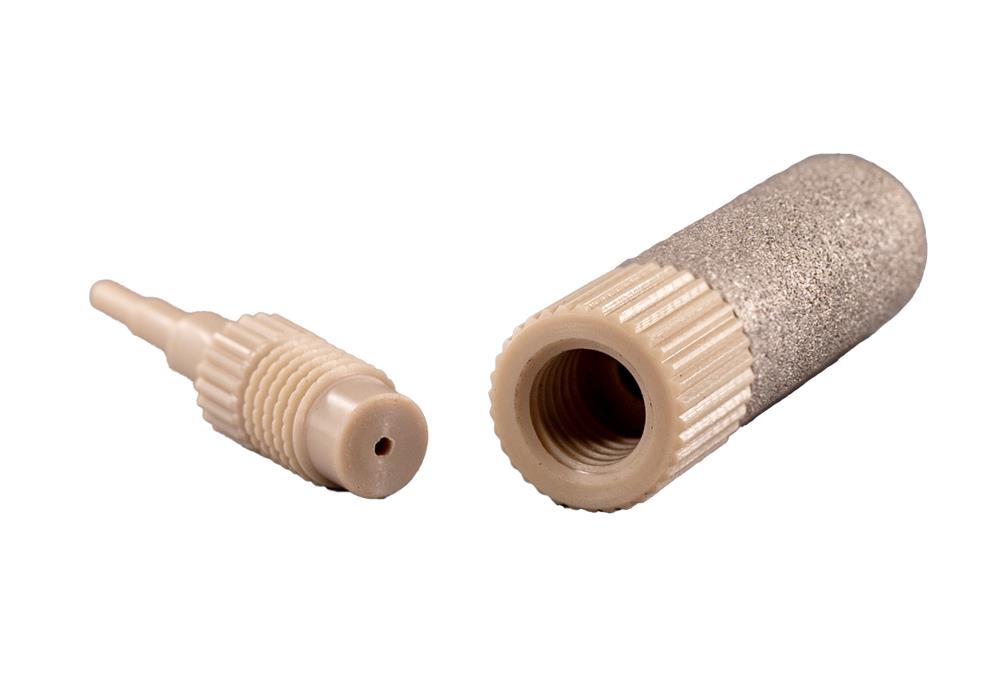

The integrated all‑PEEK tripod connector (3-step molded design) allows direct tubing connection without ferrules or nuts, supporting:

• 1/16 inch (1.6 mm) tubing

• 1/8 inch (3.2 mm) tubing

Designed for direct placement in mobile phase reservoir bottles, these filters are intended for inlet (vacuum) filtration only and are not recommended for sparging.

Key Features

20 µm High-Capacity Filtration

• Removes large particulates efficiently

• Protects HPLC pumps and columns

Ultra-Low Backpressure Performance

• Less restriction than 2 µm, 5 µm, and 10 µm filters

• Improves solvent flow and vacuum efficiency

316L Stainless Steel Construction

• Chemically resistant and robust

• Passivated for long-term durability

Universal Tripod Connector (All‑PEEK)

• Fits 1/16 inch and 1/8 inch tubing

• No ferrules or nuts required

High Throughput Design

• Supports stable solvent delivery

• Ideal for high-flow applications

Reservoir-Ready Installation

• Place directly in solvent bottles

• Quick, tool-free setup

Application-Specific Use

• Designed for inlet (vacuum) filtration

• ⚠️ Not suitable for sparging

Available Product & Replacement Options

• View mobile phase filters for sparging with 1/16 inch or 1/8 inch male nut and ferrule connectors

• Explore economical 5-pack stainless steel 20 µm tripod mobile phase filters

Specifications

• Type: Mobile Phase Inlet / Solvent Pickup Filter

• Material: 316L Stainless Steel (passivated), All‑PEEK connector

• Pore Size: 20 µm

• Dimensions: 0.375 inch OD x 1 inch length

• Connection Type: Tripod (fits 1/16 inch and 1/8 inch tubing)

• Compatibility: HPLC solvent reservoirs and pump inlet systems

• Application: Inlet (vacuum) filtration only

• Brand: EPP‑Porous Products

• Pack Size: 2/PK

Typical Applications

HPLC mobile phase filtration, removal of large particulates, pump protection, solvent preparation, and high-flow analytical workflows requiring minimal backpressure.
