Catalog Number - 48220-08-002

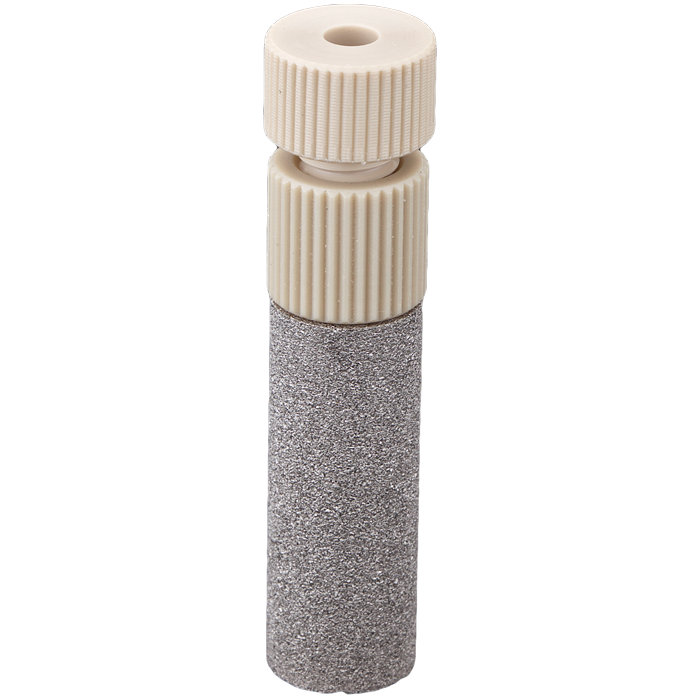

The 48220-08-002 Mobile Phase Filters are high-capacity 316L stainless steel solvent inlet filters designed for efficient removal of large particulates while maintaining excellent solvent flow in HPLC systems. Built for durability and high throughput, these filters protect pumps, columns, and instrumentation from contamination.

The 20 µm pore size removes larger undissolved particles while providing very low flow resistance, improving solvent uptake and reducing vacuum demand compared to finer filters.

Each filter is passivated with a 30% nitric acid treatment, enhancing corrosion resistance and ensuring compatibility with a wide range of HPLC mobile phases.

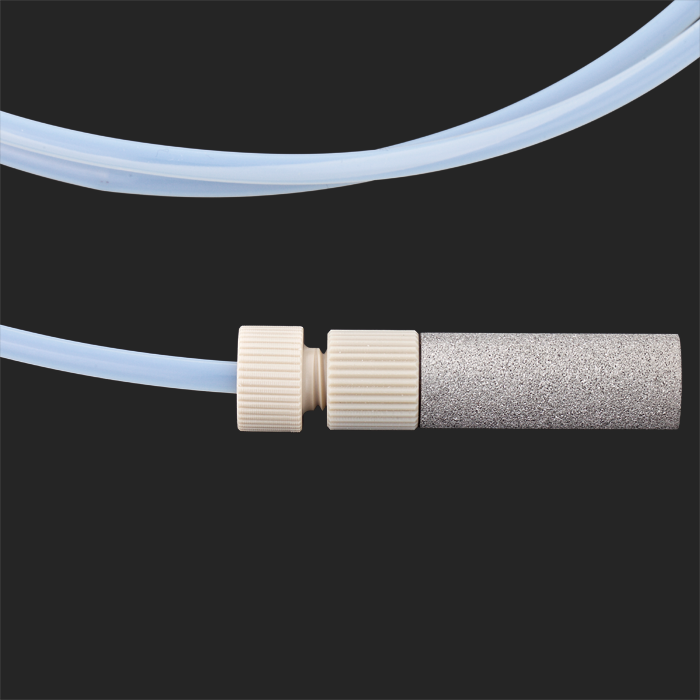

Designed for 1/8 inch tubing, each unit includes PEEK connection components for secure, low-pressure connections.

Key Features

20 µm High-Capacity Filtration

• Removes large undissolved particles

• Protects HPLC pumps and columns

Ultra-Low Flow Resistance

• Minimal restriction vs. finer filters

• Supports fast, steady solvent uptake

316L Stainless Steel Construction

• Chemically resistant and robust

• Passivated for long-term durability

1/8 Inch Connection System

• Includes ETFE ferrule and low-pressure male nut

• Fits 1/8 inch (3.2 mm) tubing

PEEK Fitting Components

• Corrosion-resistant and reliable

• Designed for low-pressure use

Sparging Compatible

• Suitable for low-pressure helium or nitrogen

Installation

1. Insert 1/8 inch tubing into the filter

2. Hand-tighten using included ferrule and nut

3. Place in mobile phase reservoir bottle

4. Connect tubing to HPLC pump inlet

Available Product & Replacement Options

• View replacement ETFE ferrules for 1/8 inch stainless steel mobile phase filters

• Explore economical 5-pack stainless steel 20 µm mobile phase filters with 1/8 inch connectors

Specifications

• Type: Mobile Phase Inlet / Solvent Pickup Filter

• Material: 316L Stainless Steel (passivated), PEEK fittings

• Pore Size: 20 µm

• Dimensions: 0.375 inch OD x 1 inch length

• Connection Type: 1/8 inch tubing (ETFE ferrule + male nut included)

• Compatibility: HPLC solvent reservoirs and pump inlet systems

• Application: Inlet filtration and sparging

• Brand: EPP‑Porous Products

• Pack Size: 2/PK

Typical Applications

HPLC mobile phase filtration, removal of larger particulates, pump protection, solvent preparation, and high-flow analytical workflows requiring minimal restriction.
