Catalog Number - 48220-07-002

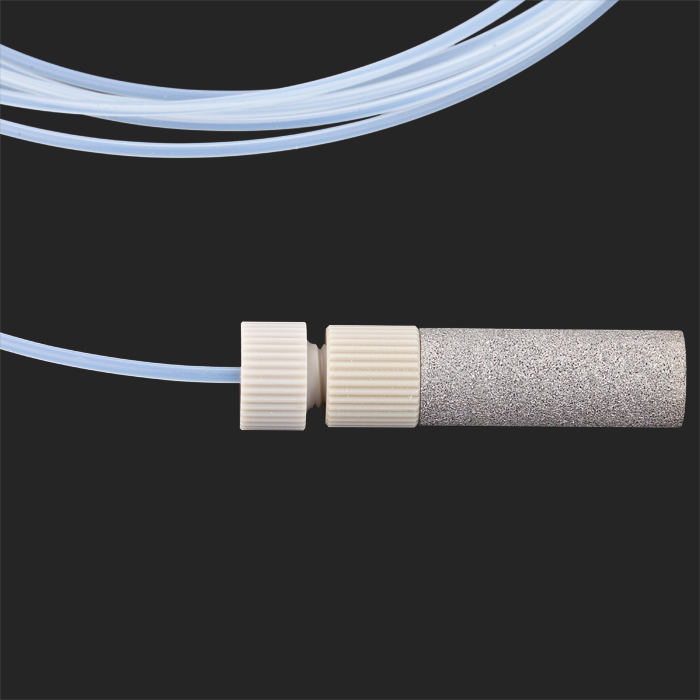

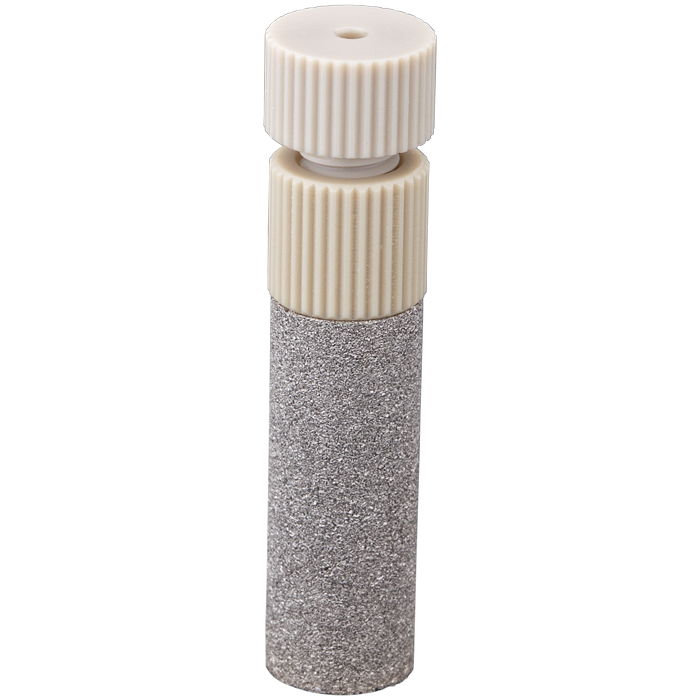

The 48220-07-002 Mobile Phase Filters are high-capacity 316L stainless steel solvent inlet filters designed for efficient removal of large particulates and reliable solvent delivery in HPLC systems. Engineered for high throughput and durability, they help protect pumps, columns, and instrumentation from contamination.

The 20 µm pore size removes larger undissolved particles while maintaining very low flow resistance, allowing improved solvent uptake and reduced vacuum load compared to finer filters.

Each filter is passivated with a 30% nitric acid treatment, enhancing corrosion resistance and ensuring compatibility with a wide range of HPLC solvents.

Designed for 1/16 inch tubing, each unit includes PEEK connection components for secure, low-pressure operation.

Key Features

20 µm High-Capacity Filtration

• Removes large particulates efficiently

• Protects HPLC pumps and columns

Ultra-Low Flow Resistance

• Minimal restriction vs. finer filters

• Supports fast, stable solvent uptake

316L Stainless Steel Construction

• Strong and chemically resistant

• Passivated for corrosion protection

1/16 Inch Connection System

• Includes ETFE ferrule and low-pressure male nut

• Fits 1/16 inch (1.6 mm) tubing

PEEK Fitting Components

• Durable and reliable connections

• Designed for low-pressure use

Sparging Compatible

• Suitable for low-pressure helium or nitrogen

Installation

1. Insert 1/16 inch tubing into the filter

2. Hand-tighten using included ferrule and nut

3. Place in mobile phase reservoir bottle

4. Connect tubing to HPLC pump inlet

Available Product & Replacement Options

• View replacement ETFE ferrules for 1/16 inch stainless steel mobile phase filters

• Explore economical 5-pack stainless steel 20 µm mobile phase filters

Specifications

• Type: Mobile Phase Inlet / Solvent Pickup Filter

• Material: 316L Stainless Steel (passivated), PEEK fittings

• Pore Size: 20 µm

• Dimensions: 0.375 inch OD x 1 inch length

• Connection Type: 1/16 inch tubing (ETFE ferrule + male nut included)

• Compatibility: HPLC solvent reservoirs and pump inlet systems

• Application: Inlet filtration and sparging

• Brand: EPP‑Porous Products

• Pack Size: 2/PK

Typical Applications

HPLC mobile phase filtration, removal of larger particulates, pump protection, solvent preparation, and high-flow workflows requiring minimal restriction.
