Catalog Number - 48220-06-005

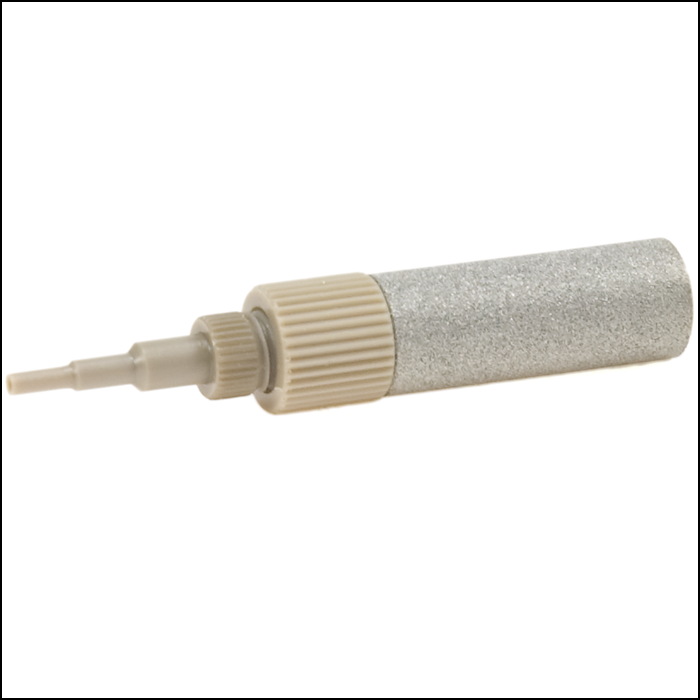

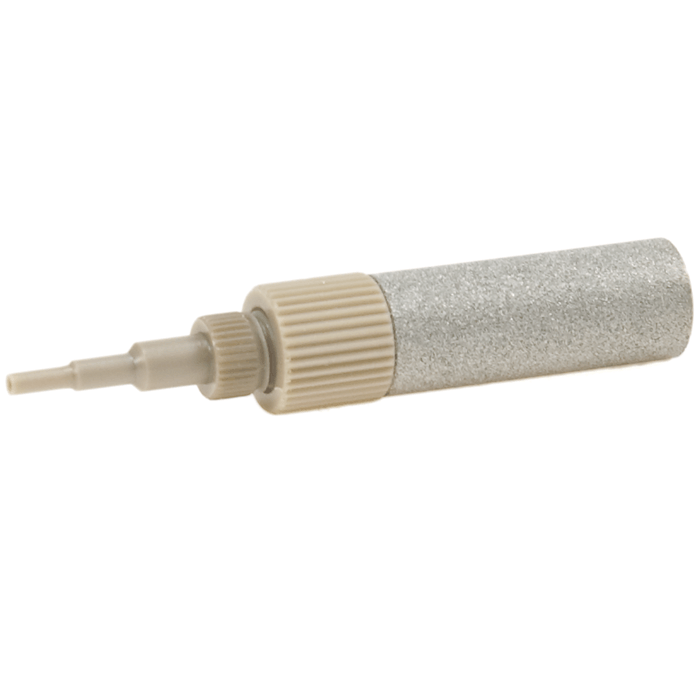

The 48220-06-005 Mobile Phase Filters are high-capacity 316L stainless steel solvent inlet filters engineered for efficient particulate removal and consistent solvent delivery in HPLC systems. Designed for durability and high throughput, these filters protect pumps, columns, and instrumentation from contamination.

The 10 µm pore size removes larger undissolved particles while producing lower backpressure than finer filters (2 µm or 5 µm), improving vacuum efficiency and solvent uptake.

Each filter is passivated with a 30% nitric acid treatment, enhancing corrosion resistance and ensuring compatibility with a wide range of HPLC solvents.

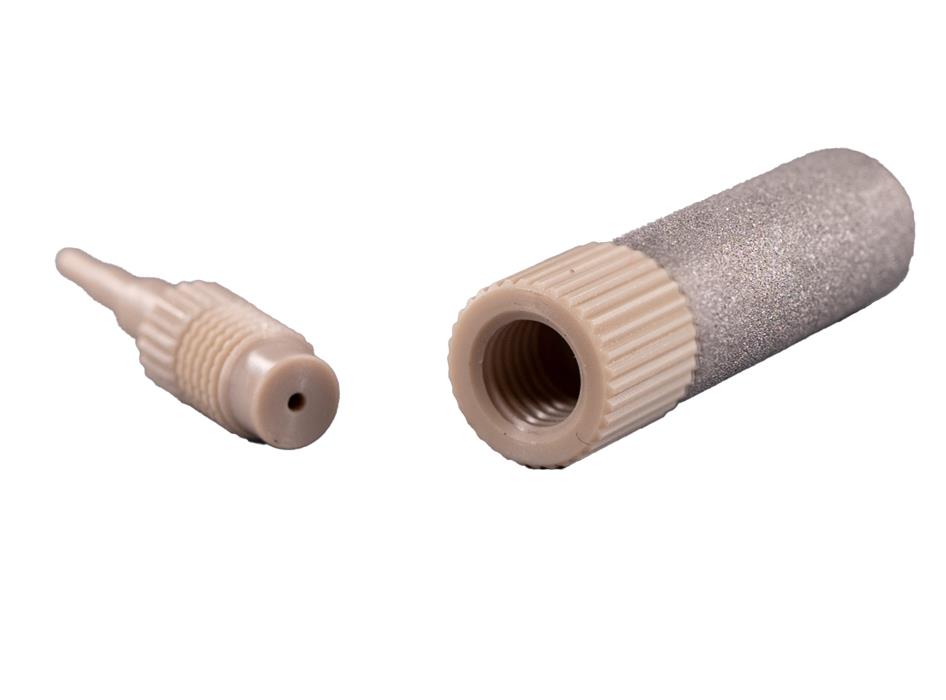

The integrated all‑PEEK tripod connector (3-step molded design) enables direct tubing connection without ferrules or nuts, supporting:

• 1/16 inch (1.6 mm) tubing

• 1/8 inch (3.2 mm) tubing

These filters are designed for direct placement in mobile phase reservoir bottles and are intended for inlet (vacuum) filtration only. They are not recommended for sparging.

Key Features

10 µm High-Capacity Filtration

• Removes larger undissolved particles

• Protects pumps and analytical columns

Low Backpressure Performance

• Less restriction than 2 µm and 5 µm filters

• Improves solvent flow and vacuum efficiency

316L Stainless Steel Construction

• Chemically resistant and durable

• Passivated for long-term performance

Universal Tripod Connector (All‑PEEK)

• Fits 1/16 inch and 1/8 inch tubing

• No ferrules or nuts required

High Throughput Design

• Supports consistent solvent delivery

• Ideal for routine and high-demand applications

Reservoir-Ready Installation

• Place directly in solvent bottles

• Fast, tool-free setup

Application-Specific Use

• Designed for inlet (vacuum) filtration

• ⚠️ Not suitable for sparging

Available Product & Replacement Options

• View mobile phase filters for sparging with 1/16 inch or 1/8 inch male nut and ferrule connectors

• Explore 2-pack stainless steel 10 µm tripod mobile phase filters

Specifications

• Type: Mobile Phase Inlet / Solvent Pickup Filter

• Material: 316L Stainless Steel (passivated), All‑PEEK connector

• Pore Size: 10 µm

• Dimensions: 0.375 inch OD x 1 inch length

• Connection Type: Tripod (fits 1/16 inch and 1/8 inch tubing)

• Compatibility: HPLC solvent reservoirs and pump inlet systems

• Application: Inlet (vacuum) filtration only

• Brand: EPP‑Porous Products

• Pack Size: 5/PK

Typical Applications

HPLC mobile phase filtration, removal of larger particulates, pump protection, solvent preparation, and high-throughput analytical workflows.
