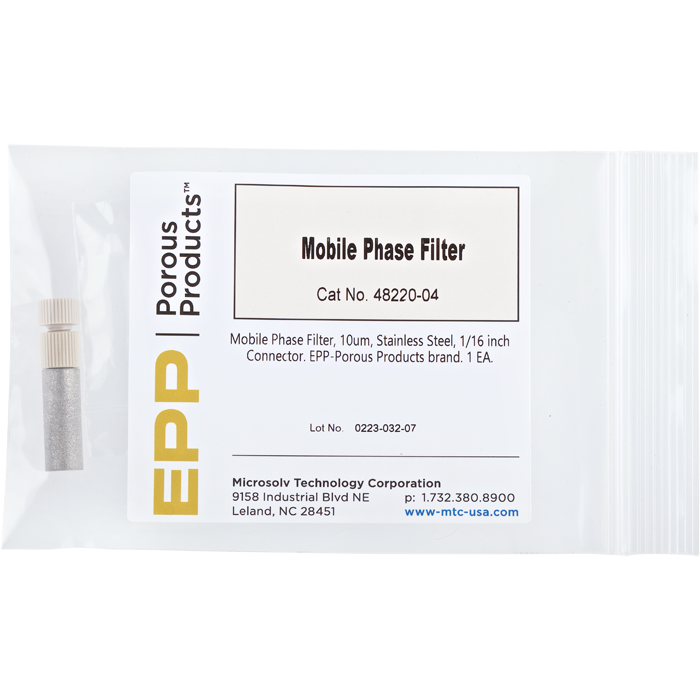

Catalog Number - 48220-04-002

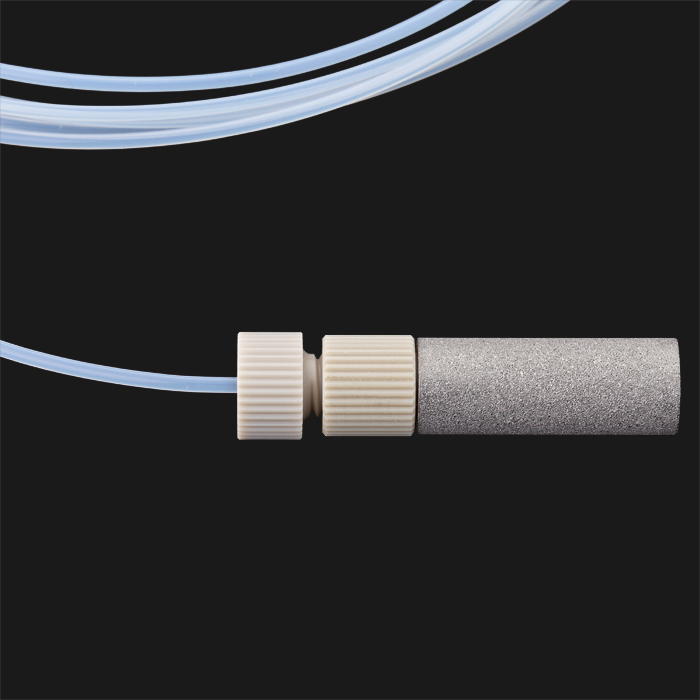

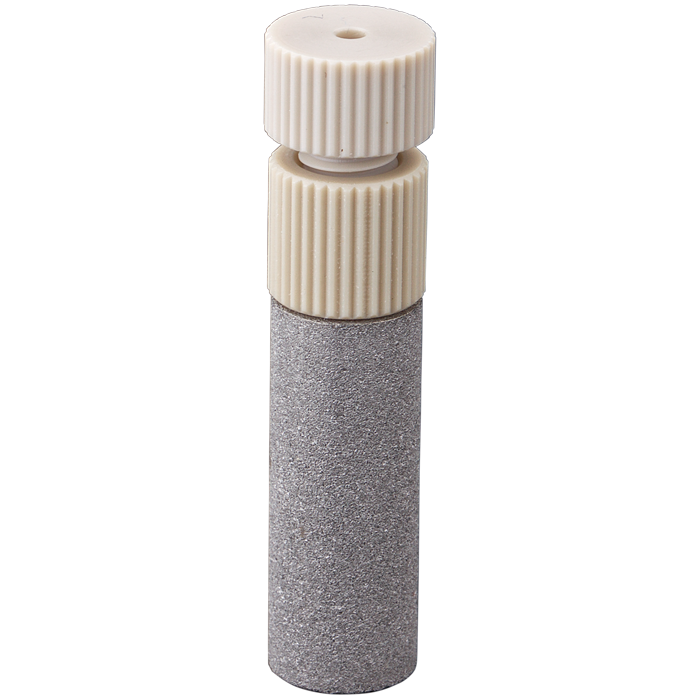

The 48220-04-002 Mobile Phase Filters are durable 316L stainless steel solvent inlet filters designed for high-capacity particulate removal and efficient solvent flow in HPLC systems. These filters deliver excellent throughput with low restriction, helping protect pumps, columns, and instruments from contamination.

The 10 µm pore size removes larger undissolved particles while maintaining lower flow resistance than finer filters, supporting stable solvent uptake and efficient vacuum performance.

Each filter is passivated with a 30% nitric acid treatment, improving corrosion resistance and ensuring compatibility with a wide range of mobile phases.

Designed for 1/16 inch tubing, each unit includes PEEK connection components for secure, low-pressure operation.

Key Features

10 µm Particulate Filtration

• Removes larger undissolved particles

• Protects HPLC pumps and columns

316L Stainless Steel Construction

• Strong and chemically resistant

• Passivated for enhanced durability

High Throughput, Low Resistance

• Lower restriction than finer filters

• Supports efficient solvent delivery

1/16 Inch Connection System

• Includes ETFE ferrule and low-pressure male nut

• Fits 1/16 inch (1.6 mm) tubing

PEEK Fitting Components

• Corrosion-resistant and reliable

• Designed for low-pressure applications

Sparging Compatible

• Suitable for low-pressure helium or nitrogen use

Installation

1. Insert 1/16 inch tubing into the filter

2. Hand-tighten using included ferrule and nut

3. Place filter in solvent reservoir

4. Connect tubing to HPLC pump inlet

Available Product & Replacement Options

• View replacement ETFE ferrules for 1/16 inch stainless steel mobile phase filters

• Explore economical 5-pack stainless steel 10 µm mobile phase filters

Specifications

• Type: Mobile Phase Inlet / Solvent Pickup Filter

• Material: 316L Stainless Steel (passivated), PEEK fittings

• Pore Size: 10 µm

• Dimensions: 0.375 inch OD x 1 inch length

• Connection Type: 1/16 inch tubing (ETFE ferrule + male nut included)

• Compatibility: HPLC solvent reservoirs and pump inlet systems

• Application: Inlet filtration and sparging

• Brand: EPP‑Porous Products

• Pack Size: 2/PK

Typical Applications

HPLC mobile phase filtration, removal of larger particulates, pump protection, solvent preparation, and high-throughput workflows requiring durable stainless steel inlet filters.
