Catalog Number - 48220-01-002

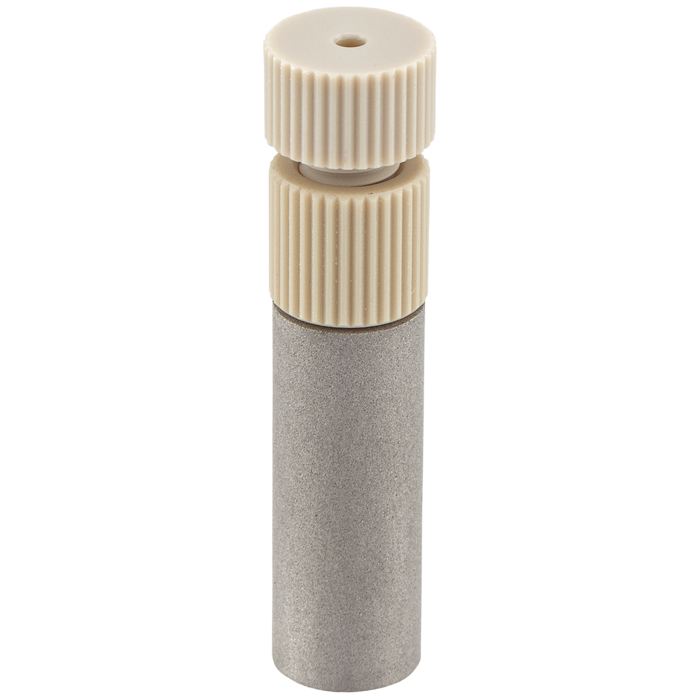

The 48220-01-002 Mobile Phase Filters are durable 316L stainless steel solvent inlet filters designed for high-efficiency particulate removal in HPLC systems. Engineered for high filtration capacity and consistent solvent flow, these filters help prevent contamination from reaching pumps, columns, and instrumentation.

The 2 µm pore size provides fine filtration of undissolved particles, offering enhanced protection compared to higher micron inlet filters.

Each unit is passivated using a 30% nitric acid process, improving corrosion resistance and ensuring compatibility with a wide range of HPLC solvents.

Designed for 1/16 inch tubing, each filter includes PEEK connection components for secure, low-pressure operation.

Key Features

2 µm Fine Particulate Filtration

• Removes small particles before pump entry

• Extends column and system life

316L Stainless Steel Construction

• Chemically resistant and mechanically robust

• Passivated for improved durability

High Capacity, Efficient Flow

• Maintains strong solvent throughput

• Minimizes flow restriction

1/16 Inch Connection System

• Includes ETFE ferrule and low-pressure male nut

• Compatible with standard 1/16 inch (1.6 mm) tubing

PEEK Fitting Components

• Corrosion-resistant and reliable

• Suitable for low-pressure applications

Optional Sparging Use

• Compatible with low-pressure helium or nitrogen sparging

Installation

1. Insert 1/16 inch tubing into the top of the filter

2. Hand-tighten using included ferrule and nut

3. Place filter in mobile phase reservoir bottle

4. Connect tubing to HPLC pump inlet

Available Product & Replacement Options

• View replacement ETFE ferrules for 1/16 inch stainless steel mobile phase filters

• Explore economical 5-pack stainless steel 2 µm mobile phase filters for higher-volume use

Specifications

• Type: Mobile Phase Inlet / Solvent Pickup Filter

• Material: 316L Stainless Steel (passivated), PEEK fittings

• Pore Size: 2 µm

• Dimensions: 0.375 inch OD x 1 inch length

• Connection Type: 1/16 inch tubing (ETFE ferrule + male nut included)

• Compatibility: HPLC solvent reservoirs and pump inlet systems

• Application: Inlet filtration and optional sparging

• Brand: EPP‑Porous Products

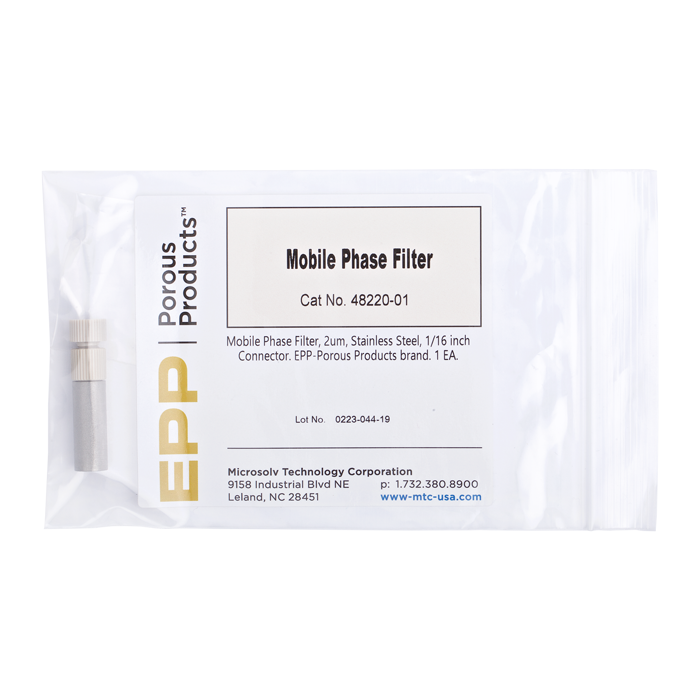

• Pack Size: 2/PK

Typical Applications

HPLC mobile phase filtration, fine particulate removal, pump and column protection, solvent preparation, and lab workflows requiring durable stainless steel inlet filters.
