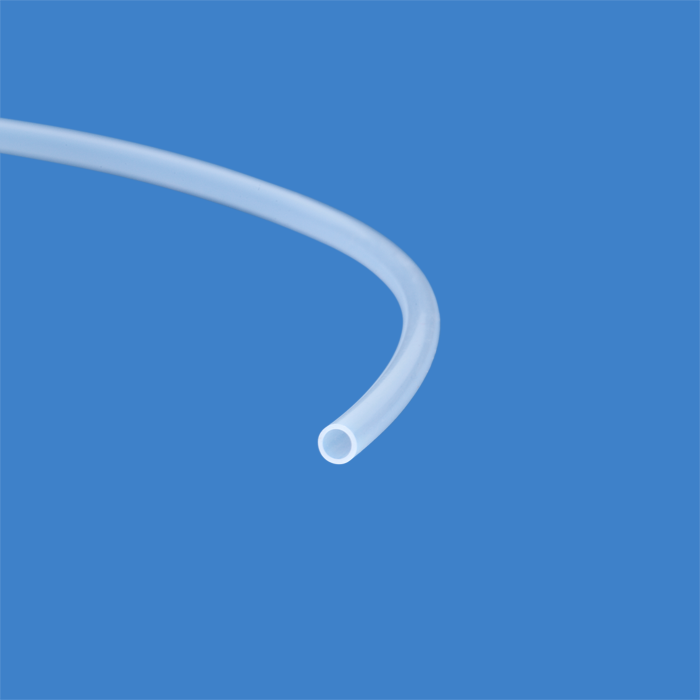

Tubing, PTFE, 0.11 inch (3.0 mm) ID, 0.15 inch (4.0 mm) OD,low pressure, 1 meter roll, ARE-Applied Research brand. 1 EA.
Additional Info:
49225-03-1M ARE‑Applied Research PTFE Tubing is a thin‑walled, high‑capacity fluid transfer solution engineered for HPLC, UHPLC, LC‑MS, and general laboratory applications, providing a large internal diameter for very high flow rates with minimal restriction.
Manufactured from 100% virgin PTFE resin, this tubing contains no additives or plasticizers, ensuring maximum chemical purity and compatibility with sensitive analytical workflows.
Precision Dimensions – Maximum Flow Capacity
Inner Diameter (ID): 0.11" (3.0 mm)
Outer Diameter (OD): 0.15" (4.0 mm)
Wall Thickness: 0.50 mm
Tolerance (ID & OD): ± 0.20 mm
✅ Large bore design enables very high flow rates with minimal backpressure
Thin‑Walled Construction – Efficient Bulk Transfer
Thin‑wall design provides:
Enhanced flexibility
Reduced flow resistance
Improved fluid throughput
✅ Ideal for bulk solvent delivery and large‑volume waste systems
Low‑Pressure Chromatography Performance
Designed for low‑pressure fluid applications, including:
Pre‑pump mobile phase delivery
Post‑detector solvent waste lines
Bulk solvent transfer systems
Pressure Rating: 290 psi (20 bar)
✅ Suitable for high‑flow, low‑pressure laboratory operations
Virgin PTFE Construction – High Purity & Inertness
Manufactured from 100% virgin PTFE
No additives, fillers, or colorants
Chemically inert and non‑reactive
✅ Minimizes contamination risk in LC‑MS and trace‑level analytical workflows
Broad Chemical & Thermal Resistance
Compatible with:
Organic solvents
Acids and bases
Aqueous mobile phases
Maximum Temperature: 260 °C
✅ Performs reliably in aggressive chemical and high‑temperature environments
Micro‑Porous Structure – Application Consideration
PTFE tubing contains micropores allowing slight gas exchange
Important when working with:
Degassed solvents
Oxygen‑sensitive workflows
✅ Consider alternative tubing when gas impermeability is required
Flexible & Durable Design
Flexible for easy routing and installation
Durable for repeated laboratory use
Natural translucent appearance allows visual monitoring of flow
✅ Supports efficient system setup and maintenance
Regulatory Compliance
Compliant with:
RoHS EU Directive 2011/65/EU
Amendment (EU) 2015/863
✅ Meets global environmental and safety standards
Available Length Options
✅ Select the appropriate length for your application:
1 meter roll (this item)
✅ Custom cut lengths available through Customer Service
Typical Applications
Bulk solvent delivery systems
High‑volume solvent transfer
Large‑capacity waste line routing
Pre‑pump mobile phase transport
General laboratory fluid handling
Important Usage Notes
Not intended for high‑pressure HPLC pump connections
Consider permeability when using degassed or oxygen‑sensitive solvents
Use properly sized fittings for secure, leak‑free connections
