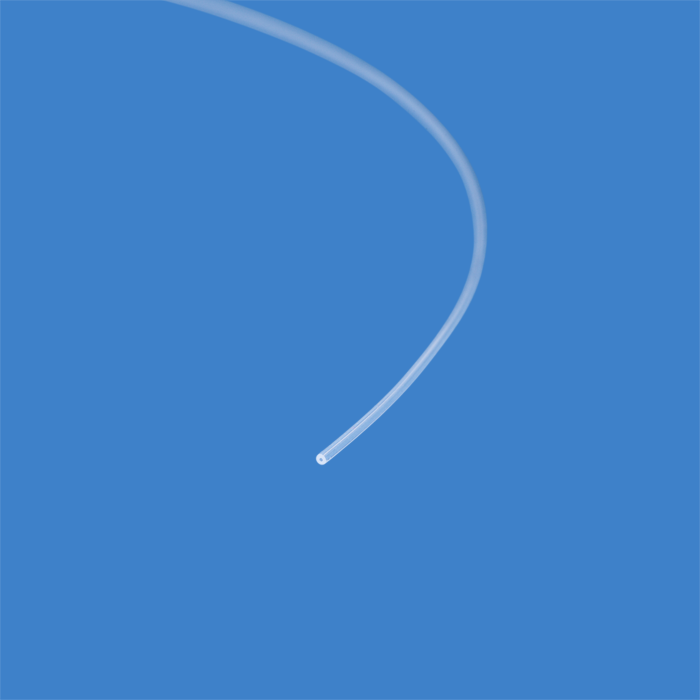

Tubing, ETFE, 0.010 inch (0.25 mm) ID, 1/32nd inch (0.79 mm) OD, low pressure, Your continuous length tubing, priced per meter. ARE-Applied Research brand.
Additional Information:
ARE-Applied Research ETFE (Ethylene Tetrafluoroethylene), commonly known by the trade name Tefzel™, tubing is manufactured from virgin ETFE resin without the use of processing additives. ETFE tubing is widely used in low-pressure laboratory fluid handling applications due to its excellent chemical resistance, low permeability, and mechanical durability.
48509-10-1C allows laboratories and manufacturers to order a continuous length of natural translucent ETFE tubing with a 0.010 inch (0.25 mm) internal diameter and 1/32 inch (0.79 mm) outer diameter. This Special Order Item is priced per meter, allowing users to specify the exact tubing length required while minimizing waste and reducing the need for unions or additional connections.
The small internal diameter helps minimize dead volume, making it well suited for low-flow analytical applications and laboratory fluid transfer systems. Compared to PTFE tubing, ETFE offers lower gas permeability while maintaining excellent chemical compatibility with most laboratory solvents and reagents. ETFE is chemically inert except when used with certain halogenated compounds.
The translucent tubing wall allows visual monitoring of fluid movement while providing excellent durability and dimensional stability.
Lengths of 15 meters or longer are supplied on a convenient spool for easier storage, handling, and dispensing.
Key Benefits
Continuous length tubing specified by the customer
Manufactured from virgin ETFE resin without additives
Low permeability compared to PTFE tubing
Excellent chemical resistance
Small internal diameter helps minimize dead volume
Natural translucent tubing allows fluid visibility
Lengths of 15 meters and longer supplied on a convenient spool
Tight dimensional tolerances for reliable connections
Typical Applications
HPLC mobile phase delivery
HPLC solvent waste systems
Laboratory fluid transfer
Analytical instrumentation
Low-flow fluid delivery
Reagent transfer systems
Sample transport lines
General low-pressure laboratory applications
Specifications
Product Type: ETFE Tubing
Material: ETFE (Tefzel™)
Internal Diameter: 0.010 in. (0.25 mm)
Outer Diameter: 1/32 in. (0.79 mm)
Wall Thickness: 0.27 mm
Color: Natural, Translucent
Length: Continuous Length
Pricing Basis: Per Meter
Lengths ≥15 Meters: Supplied on Spool
Pressure Rating: 2150 psi (150 bar)
Dimensional Tolerance: ±0.05 mm
Brand: ARE-Applied Research
Additional Lengths
Special Order Item Information
This item is supplied in the length specified at the time of order.
Special Order Items cannot be canceled or returned once an order has been placed.
Custom cuts are available to meet specific application requirements.
Important Notes
Special Order Item
Continuous length tubing priced per meter
Lengths of 15 meters or longer supplied on a convenient spool
Manufactured from virgin ETFE resin
Lower permeability than PTFE tubing
Suitable before and after HPLC pumps
Natural translucent tubing allows fluid visibility
Pressure rated to 2150 psi (150 bar)
Excellent chemical resistance
Not recommended for certain halogenated compounds
