Catalog Number - 48220-05

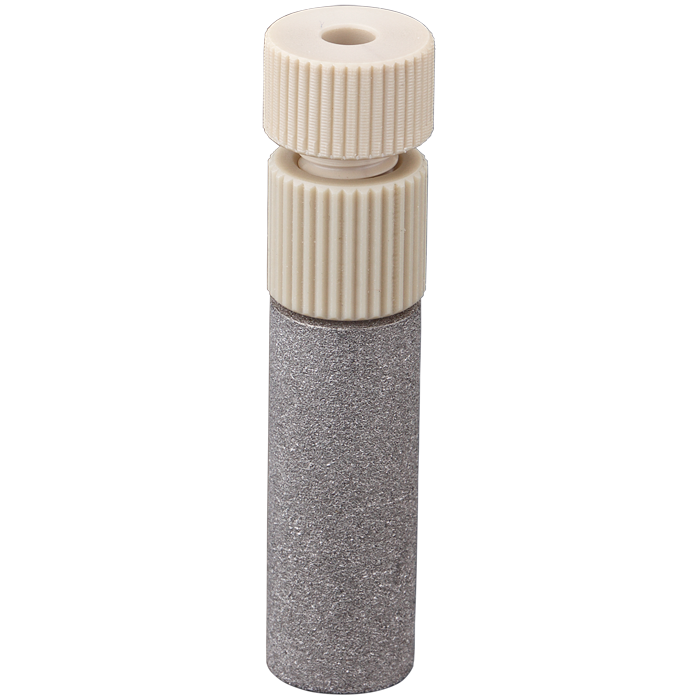

The 48220-05 Mobile Phase Filter is a durable 316L stainless steel solvent inlet filter designed for high-capacity particulate removal and efficient solvent flow in HPLC systems. Built for excellent throughput and system protection, it helps prevent contaminants from reaching pumps, columns, and instrumentation.

The 10 µm pore size removes larger undissolved particles while maintaining low flow resistance, supporting consistent solvent uptake and improved vacuum efficiency compared to finer filters.

Each unit is passivated with a 30% nitric acid treatment, enhancing corrosion resistance and ensuring compatibility with a wide range of HPLC solvents.

Designed for 1/8 inch tubing, each filter includes PEEK connection components for secure, reliable low-pressure connections.

Key Features

10 µm Particulate Filtration

• Removes larger undissolved particles

• Protects pumps and columns

316L Stainless Steel Construction

• Chemically resistant and robust

• Passivated for corrosion protection

High Flow, Low Restriction

• Lower resistance than finer filters

• Supports efficient solvent delivery

1/8 Inch Connection System

• Includes ETFE ferrule and low-pressure male nut

• Fits 1/8 inch (3.2 mm) tubing

PEEK Fitting Components

• Corrosion-resistant and reliable

• Designed for low-pressure use

Sparging Compatible

• Suitable for low-pressure helium or nitrogen

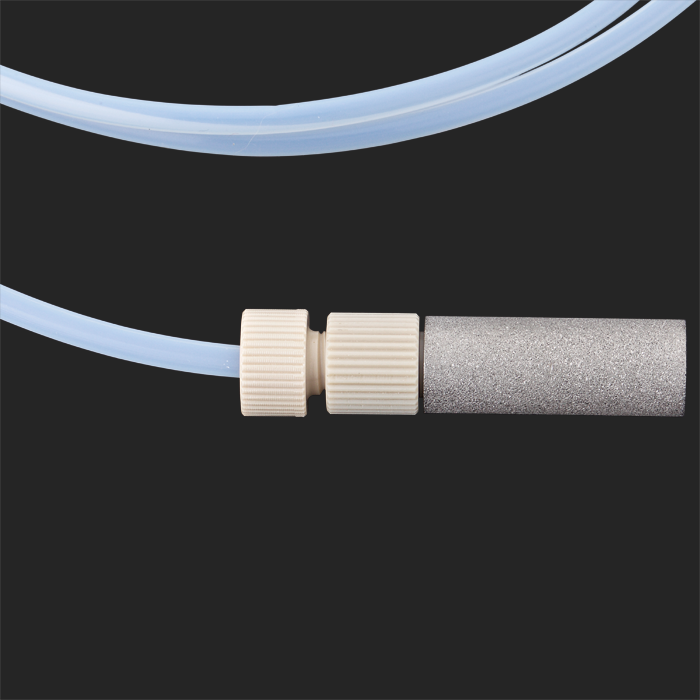

Installation

1. Insert 1/8 inch tubing into the filter

2. Hand-tighten with included ferrule and nut

3. Place in mobile phase reservoir bottle

4. Connect tubing to HPLC pump inlet

Available Product & Replacement Options

• View replacement ETFE ferrules for 1/8 inch stainless steel mobile phase filters

• Explore economical 5-pack stainless steel 10 µm mobile phase filters with 1/8 inch connectors

• Contact Customer Service for custom configurations and bulk pricing

Specifications

• Type: Mobile Phase Inlet / Solvent Pickup Filter

• Material: 316L Stainless Steel (passivated), PEEK fittings

• Pore Size: 10 µm

• Dimensions: 0.375 inch OD x 1 inch length

• Connection Type: 1/8 inch tubing (ETFE ferrule + male nut included)

• Compatibility: HPLC solvent reservoirs and pump inlet systems

• Application: Inlet filtration and sparging

• Brand: EPP‑Porous Products

• Item Type: Custom / Bulk Order

Typical Applications

HPLC mobile phase filtration, removal of larger particulates, pump protection, solvent preparation, and high-throughput laboratory workflows.
