Guard Column cartridge, UDC Cholesterol, replacement, 4.0 mm ID x 10 mm long cartridge packed with 4 um, 100 A phase. Cogent TYPE-C Brand. 1 EA.
Additional Info:

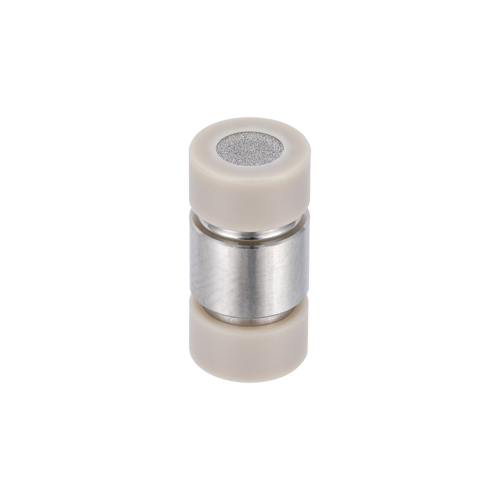

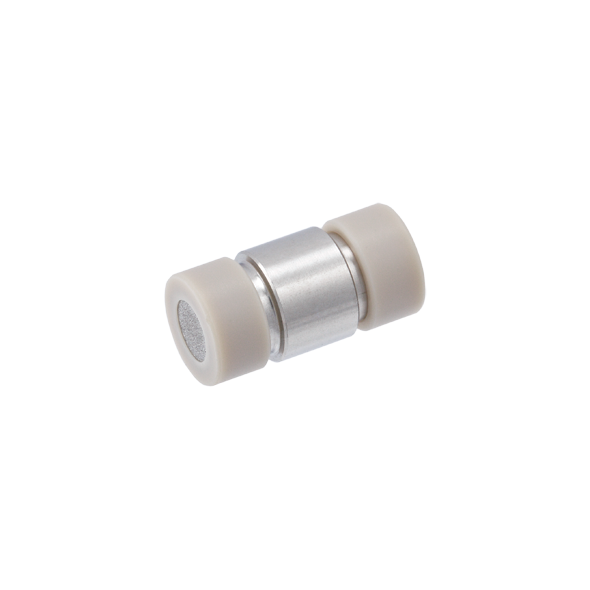

The 69069‑PG6 Cogent UDC‑Cholesterol Guard Column Cartridge is a single replacement cartridge designed to protect analytical HPLC columns while maintaining the unique shape‑selective performance of the UDC‑Cholesterol stationary phase.
Each cartridge is:
4.0 mm ID × 10 mm length
Packed with 4 µm, 100 Å TYPE‑C™ silica hydride UDC‑Cholesterol phase
Constructed in stainless steel housing with SS frits
The cartridge is supplied in an individual protective Delrin™ case, preventing contamination, drying, and physical damage prior to use.
⚠️ Requires guard column holder (sold separately)
Designed for Standard Analytical Column IDs
This cartridge is optimized for:
3.0 mm ID solvent‑saving columns
4.0 mm ID analytical columns
4.6 mm ID standard HPLC columns
Ideal for conventional HPLC systems, providing:
Minimal peak dispersion
Maintained chromatographic efficiency
Reliable and reproducible performance
Why Use a Single Guard Cartridge
A single‑cartridge format is ideal when:
Testing different guard phases during method development
Using multiple analytical column chemistries
Replacing cartridges individually as needed
Avoiding bulk purchase while maintaining protection
This provides maximum flexibility for method optimization and specialized workflows.
Why Use Guard Column Protection
Analytical columns are exposed to:
Particulates and system contaminants
Strongly retained compounds
Sample matrix buildup
Irreversible adsorption and fouling
The 69069‑PG6 cartridge provides a sacrificial protection layer, helping to:
Extend analytical column lifetime significantly
Maintain chromatographic performance and consistency
Reduce downtime and replacement costs
Improve reproducibility across analyses
Cartridges can be replaced quickly without disturbing the analytical column.
UDC‑Cholesterol™ Guard Phase Advantages
Using the same stationary phase as your analytical column ensures:
Matched shape selectivity and retention behavior
No disruption to method performance
Seamless analyte transfer
Shape‑Selective Interaction
Separates compounds based on 3D molecular structure and steric fit
Ideal for isomers and closely related compounds
Strong Hydrophobic Interaction
Effective for lipids and hydrophobic analytes
Enhances retention of difficult compounds
Tunable Selectivity
Adjust separations using:
Temperature changes
Mobile phase composition
Cogent TYPE‑C™ Technology Benefits
Silica Hydride Surface
Direct Si–C bonding (no end‑capping required)
Reduced silanol activity
Improved peak shape for basic and polar analytes
Faster Equilibration
Reduced run‑to‑run cycle times
Increased analytical throughput
Durability
Resistant to hydrolysis
Long cartridge and column life
Stable under demanding analytical conditions
Typical Applications
Standard analytical HPLC workflows
Steroidal compound analysis
Structural isomer separations
Lipids and hydrophobic analytes
Peptides, proteins, and oligonucleotides
Methods requiring shape‑selectivity protection
