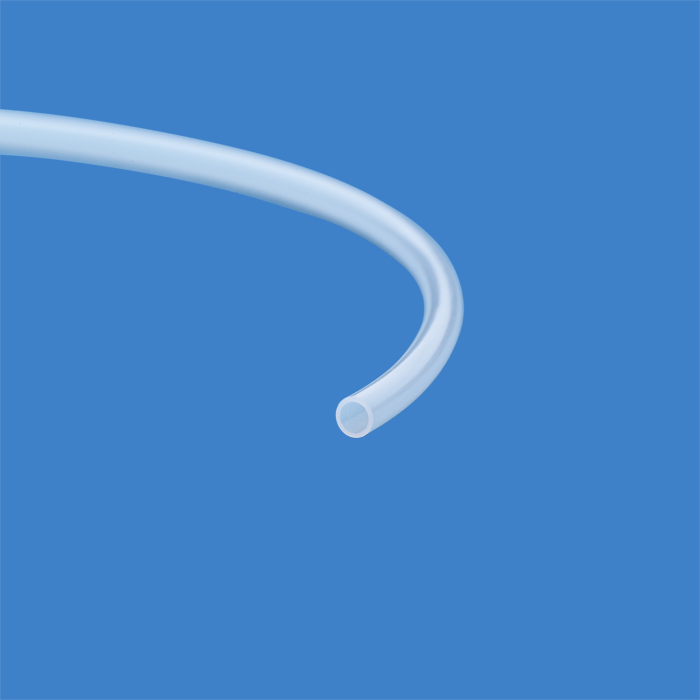

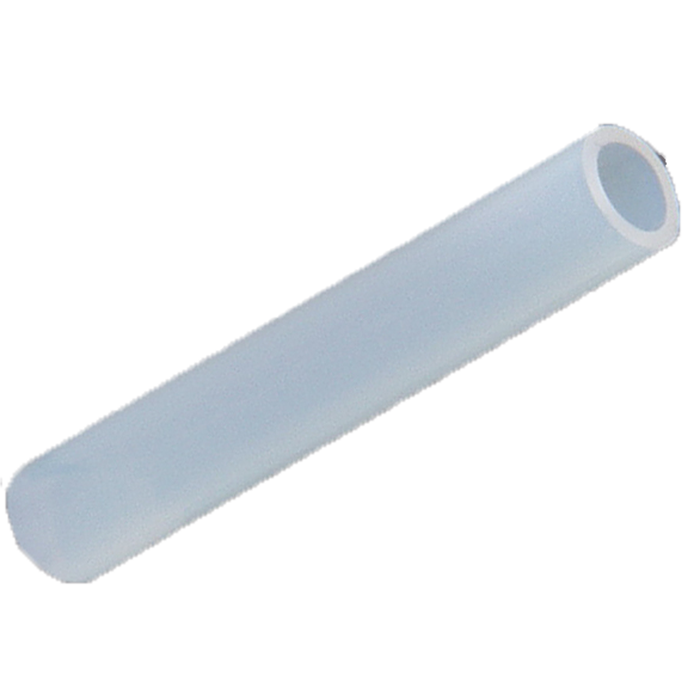

CUSTOM ITEM: Tubing, PTFE, 0.095 inch (2.4 mm) ID, 1/8th inch (3.2 mm) OD, low pressure. Your custom continuous length Tubing, priced per meter. ARE-Applied Research brand.
Additional Info:
49225-100-1C ARE‑Applied Research PTFE Tubing is a made‑to‑order, custom continuous length solution engineered for HPLC, UHPLC, LC‑MS, and general laboratory applications, providing a large internal diameter for high‑volume solvent transfer along with continuous lengths to eliminate connections and optimize system performance.
Manufactured from 100% virgin PTFE resin, this tubing contains no additives or plasticizers, ensuring maximum chemical purity and compatibility with sensitive analytical workflows.
Custom Continuous Length – Built to Your Specification
Supplied in user‑defined continuous lengths
Priced per meter
Eliminates unions and additional fittings
Reduces dead volume and potential leak points
✅ Ideal for bulk fluid systems, long routing paths, and OEM applications
✅ Recommended for validated system designs and finalized configurations
Precision Dimensions – High Flow Capacity
Inner Diameter (ID): 0.095" (2.4 mm)
Outer Diameter (OD): 1/8" (3.2 mm)
Wall Thickness: 0.40 mm
Tolerance (ID & OD): ± 0.20 mm
✅ Large bore design supports very high flow rates with reduced backpressure
Thin‑Walled Construction – Efficient Bulk Transfer
Thin‑wall design improves:
Flexibility
Flow efficiency
Ease of routing
✅ Ideal for high‑volume solvent delivery and waste systems
Low‑Pressure Chromatography Performance
Designed for low‑pressure applications, including:
Pre‑pump mobile phase delivery
Post‑detector solvent waste lines
Bulk solvent transfer systems
Pressure Rating: 290 psi (20 bar)
✅ Suitable for high‑flow, low‑pressure chromatography and lab systems
Virgin PTFE Construction – High Purity & Inertness
Manufactured from 100% virgin PTFE
No additives, fillers, or colorants
Chemically inert and non‑reactive
✅ Minimizes contamination risk in LC‑MS and trace‑level analytical workflows
Broad Chemical & Thermal Resistance
Compatible with:
Organic solvents
Acids and bases
Aqueous mobile phases
Maximum Temperature: 260 °C
✅ Performs reliably in aggressive chemical and high‑temperature environments
Micro‑Porous Structure – Application Consideration
PTFE tubing contains micropores allowing slight gas exchange
Important when working with:
Degassed solvents
Oxygen‑sensitive workflows
✅ Consider alternative tubing when gas impermeability is required
Flexible & Durable Design
Flexible for long continuous runs and custom routing
Durable under repeated laboratory use
Natural translucent appearance allows visual monitoring of flow
✅ Supports efficient installation and system maintenance
Spool Supply for Longer Lengths
Lengths ≥ 15 meters supplied on a spool
Reduces kinking and improves handling
Enables clean installation for extended runs
✅ Ideal for large‑scale or continuous fluid systems
Regulatory Compliance
Compliant with:
RoHS EU Directive 2011/65/EU
Amendment (EU) 2015/863
✅ Meets global environmental and safety standards
Available Standard Length Options
✅ Use pre-cut lengths if custom tubing is not required:
Typical Applications
Bulk solvent delivery systems
High‑volume solvent transfer
Extended waste line routing
Pre‑pump mobile phase transport
OEM and instrument integration
Important Usage Notes
Not intended for high‑pressure HPLC pump connections
Consider permeability when using degassed or oxygen‑sensitive solvents
Use properly sized fittings for secure, leak‑free connections
🚨Made‑to‑Order & Pricing Information
This is a custom, made‑to‑order item.
Orders cannot be canceled once placed
Custom items are non‑returnable
