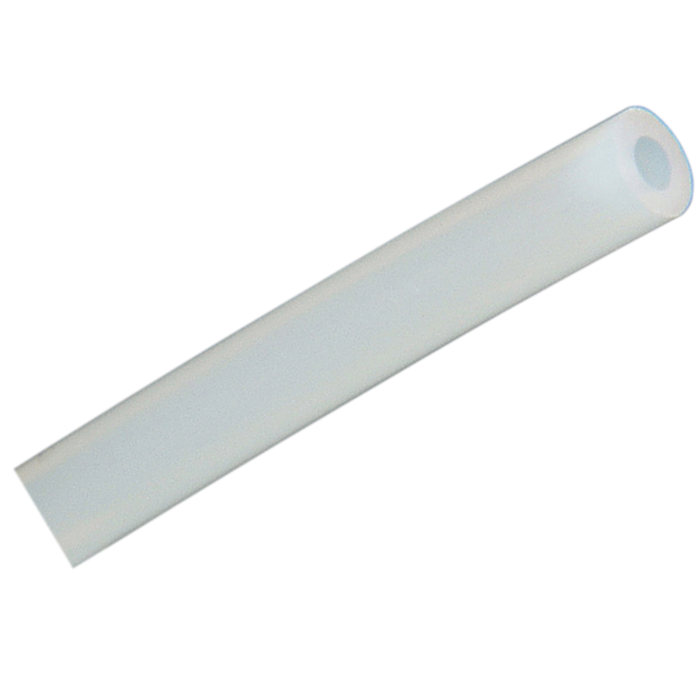

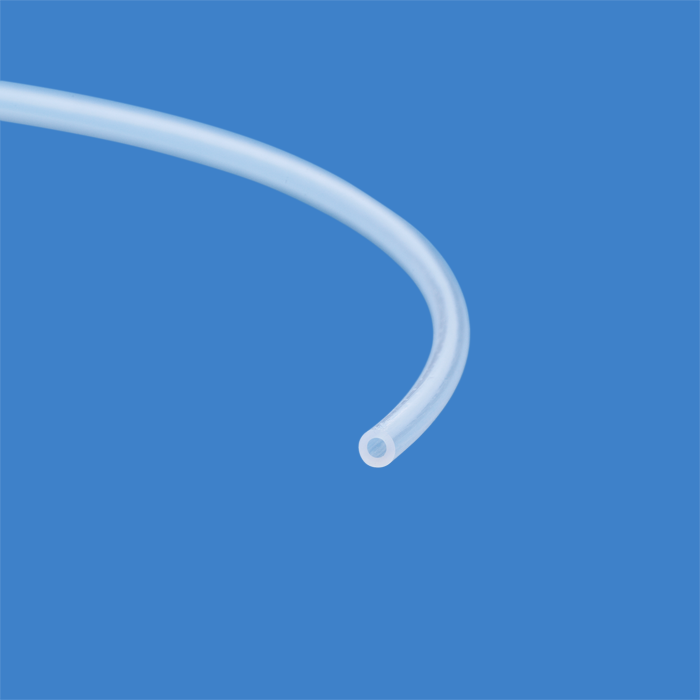

Tubing, PTFE, 1/16th inch (1.6 mm) ID, 1/8th inch (3.2 mm) OD, low pressure, 1 meter roll, ARE-Applied Research brand. 1 EA.
Additional Info:
49225-65-1M ARE‑Applied Research PTFE Tubing is a thin‑walled, high‑capacity fluid transfer solution engineered for HPLC, UHPLC, LC‑MS, and general laboratory applications, providing a large internal diameter for very high flow rates and minimal restriction.
Manufactured from 100% virgin PTFE resin, this tubing contains no additives or plasticizers, ensuring maximum purity and compatibility with sensitive analytical workflows.
Precision Dimensions – Maximum Flow Capacity
Inner Diameter (ID): 1/16" (1.6 mm)
Outer Diameter (OD): 1/8" (3.2 mm)
Wall Thickness: 0.80 mm
Tolerance (ID & OD): ± 0.20 mm
✅ Large bore design supports very high flow rates and minimal backpressure
Thin‑Walled Construction – Flexible High‑Volume Transfer
Thin‑wall design increases flexibility
Supports efficient routing in bulk fluid pathways
✅ Ideal for large‑volume solvent transfer and waste handling
Low‑Pressure Chromatography Performance
Designed for low‑pressure applications, including:
Pre‑pump mobile phase delivery
Post‑detector solvent waste lines
Bulk solvent transfer systems
Pressure Rating: 510 psi (35 bar)
✅ Suitable for high‑volume flow in low‑pressure environments
Virgin PTFE Construction – High Purity & Inertness
Manufactured from 100% virgin PTFE
No additives or colorants
Chemically inert and non‑reactive
✅ Ensures minimal contamination risk in LC‑MS and analytical workflows
Broad Chemical & Thermal Resistance
Compatible with:
Organic solvents
Acids and bases
Aqueous solutions
Maximum Temperature: 260 °C
✅ Performs reliably in aggressive chemical and elevated temperature conditions
Micro‑Porous Structure – Application Consideration
PTFE tubing contains micropores allowing gas exchange
Important when using:
Degassed solvents
Oxygen‑sensitive applications
✅ Consider alternative tubing when gas impermeability is critical
Flexible & Durable Design
Flexible for easy routing and installation
Durable under repeated laboratory use
Natural translucent appearance allows visual monitoring of flow
✅ Supports efficient setup and maintenance
Regulatory Compliance
Compliant with:
RoHS EU Directive 2011/65/EU
Amendment (EU) 2015/863
✅ Meets global environmental and safety standards
Available Length Options
✅ Select the appropriate size for your application:
1 meter roll (this item)
✅ Custom cut lengths available through Customer Service
Typical Applications
Bulk solvent delivery systems
High‑volume waste lines
Pre‑pump mobile phase routing
General laboratory fluid transfer
OEM and instrument integration
Important Usage Notes
Not intended for high‑pressure HPLC pump connections
Consider permeability when using degassed or oxygen‑sensitive solvents
Use properly sized fittings for secure, leak‑free connections
