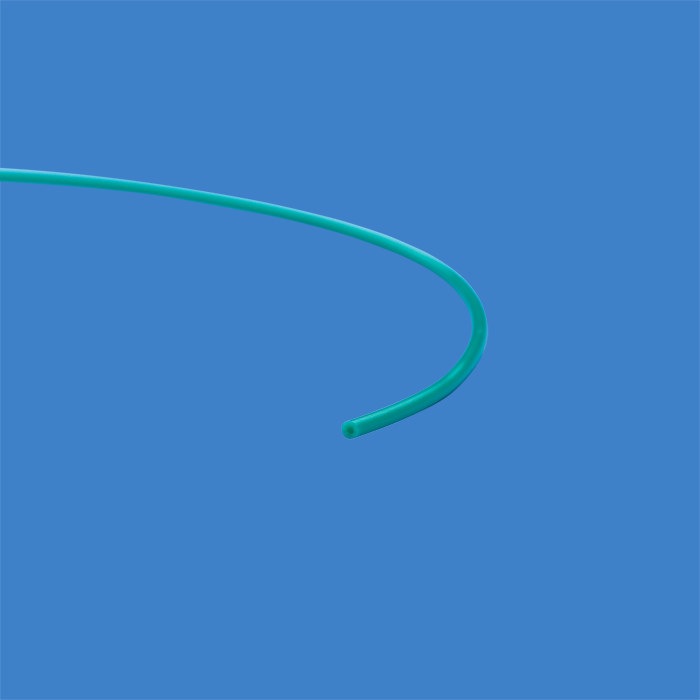

CUSTOM ITEM: Tubing, PTFE, 0.030 inch (0.75 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, green, Your custom continuous length tubing, priced per meter. ARE-Applied Research brand.
Additional Info:
47240-30-1C ARE‑Applied Research PTFE Tubing is a made‑to‑order, custom continuous length solution engineered for HPLC, UHPLC, LC‑MS, and general laboratory applications, delivering maximum flow capacity and uninterrupted tubing runs for optimized system performance and reduced connection points.
Manufactured from 100% virgin PTFE resin, this tubing contains no additives or plasticizers, except for trace pigment used solely for visual identification, ensuring low extractables and compatibility with sensitive analytical workflows.
✅ Review custom order guidelines and non‑returnable terms for made‑to‑order tubing
Custom Continuous Length – Built to Your Specifications
Supplied in user‑defined continuous lengths
Priced per meter
Eliminates unions and unnecessary fittings
Reduces dead volume and leak potential
✅ Ideal for OEM systems, high‑flow applications, and optimized fluid routing
✅ Recommended for finalized designs and validated systems
Precision Dimensions – Maximum Flow Optimization
Inner Diameter (ID): 0.030" (0.75 mm)
Outer Diameter (OD): 1/16" (1.6 mm)
Wall Thickness: 0.425 mm
Tolerance (ID & OD): ± 0.10 mm
✅ Largest ID in this series provides maximum flow rates with minimal resistance
Green Pigmentation – Visual Line Identification
Green‑pigmented PTFE tubing
Supports:
Visual differentiation of fluid lines
Organized multi‑line systems
Faster maintenance and troubleshooting
✅ Used for visual identification only (not functional or standardized color coding)
Low‑Pressure Chromatography Performance
Designed for low‑pressure fluid paths, including:
Pre‑pump mobile phase delivery
Post‑detector solvent waste lines
Bulk solvent transfer
Pressure Rating: 510 psi (35.1 bar)
✅ Ideal for high‑flow solvent transfer in low‑pressure environments
Virgin PTFE Construction – High Purity & Inertness
Manufactured from 100% virgin PTFE
No additives (except trace pigment)
Chemically inert and non‑reactive
✅ Minimizes contamination in LC‑MS and trace‑level analytical workflows
Broad Chemical & Thermal Resistance
Compatible with:
Organic solvents
Acids and bases
Aqueous mobile phases
Maximum Temperature: 260 °C
✅ Suitable for demanding chemical and high‑temperature applications
Micro‑Porous Structure – Application Consideration
PTFE tubing contains micropores allowing slight gas exchange
Important when working with:
Degassed solvents
Oxygen‑sensitive workflows
✅ Consider alternative tubing where gas impermeability is required
Flexible & Durable Design
Flexible for custom routing and long continuous runs
Durable under repeated lab use
Maintains clear visual differentiation in complex systems
✅ Supports efficient system installation and maintenance
Spool Supply for Longer Lengths
Lengths ≥ 15 meters supplied on a spool
Reduces kinking and improves handling
Supports clean installation for extended runs
✅ Ideal for large-scale or continuous fluid systems
Regulatory Compliance
Compliant with:
RoHS EU Directive 2011/65/EU
Amendment (EU) 2015/863
✅ Meets global environmental and safety standards
Available Standard Length Options
Typical Applications
High‑flow HPLC mobile phase delivery systems
Bulk solvent transfer
Continuous solvent routing (pre‑ and post‑pump)
LC‑MS fluid transfer lines
OEM instrument integration
Important Usage Notes
Not intended for high‑pressure HPLC pump head connections
Green pigmentation is for visual identification only
Consider permeability when using degassed or oxygen‑sensitive solvents
Ensure proper fittings for secure, leak‑free connections
🚨Made‑to‑Order & Pricing Information
This is a custom, made‑to‑order item.
Orders cannot be canceled once placed
Custom items are non‑returnable
