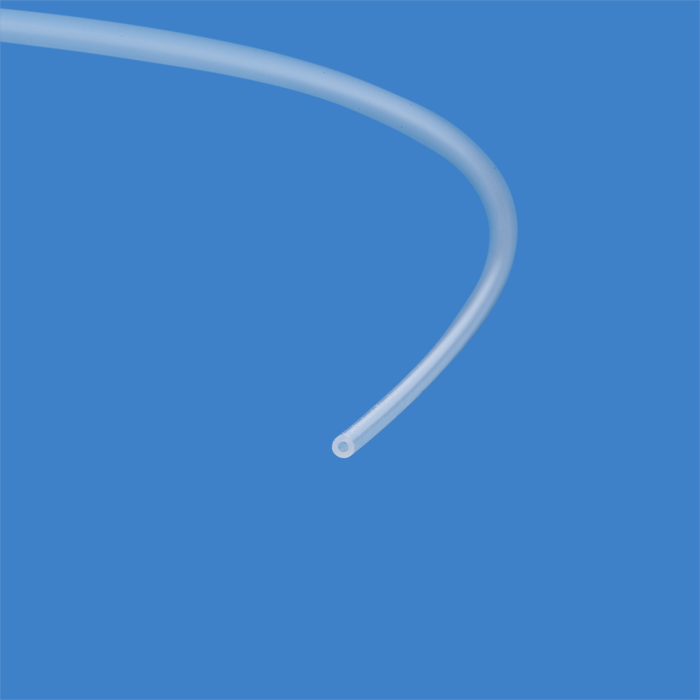

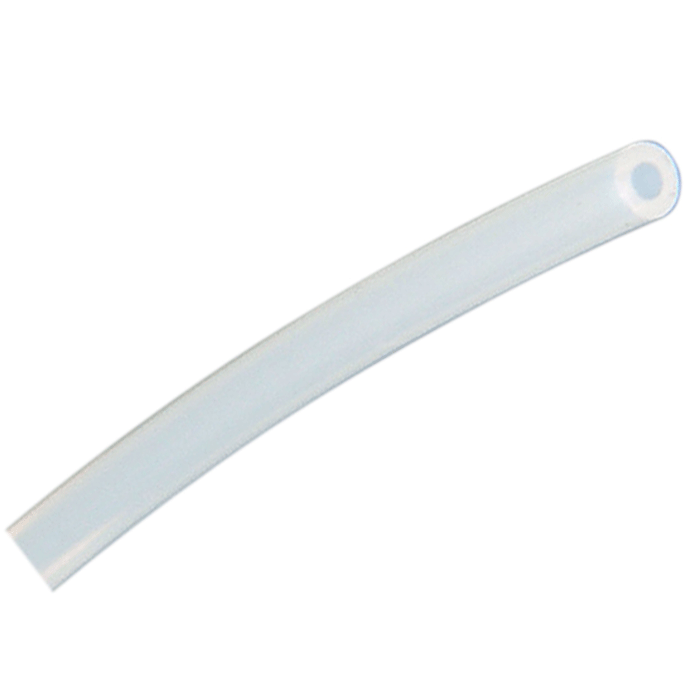

Tubing, PTFE, 0.030 inch (0.75 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, Your custom continuous length tubing, priced per meter. ARE-Applied Research brand.
Additional Info:
49210-30-1C ARE‑Applied Research PTFE Tubing is a made‑to‑order, custom continuous length solution engineered for HPLC, UHPLC, LC‑MS, and general laboratory applications, offering maximum internal diameter for high‑flow solvent transfer combined with continuous lengths to reduce fittings, dead volume, and system complexity.
Manufactured from 100% virgin PTFE resin, this tubing contains no additives or plasticizers, ensuring low extractables and excellent compatibility with sensitive analytical workflows.
✅ Review custom order guidelines and non‑returnable terms for made‑to‑order tubing
Custom Continuous Length – Built to Your Specification
Supplied in user‑defined continuous lengths
Priced per meter
Eliminates unions and extra fittings
Reduces dead volume and potential leak points
✅ Ideal for OEM systems, custom HPLC builds, and optimized fluid routing
✅ Recommended for validated system designs and finalized configurations
Precision Dimensions – Maximum Flow Optimization
Inner Diameter (ID): 0.030" (0.75 mm)
Outer Diameter (OD): 1/16" (1.6 mm)
Wall Thickness: 0.425 mm
Tolerance (ID & OD): ± 0.10 mm
✅ Largest ID in this series delivers maximum flow rates with minimal resistance
Low‑Pressure Chromatography Performance
Designed for low‑pressure fluid paths, including:
Pre‑pump mobile phase delivery
Post‑detector solvent waste lines
Bulk solvent transfer
Pressure Rating: 510 psi (35.1 bar)
✅ Ideal for high‑volume solvent movement in low‑pressure systems
Virgin PTFE Construction – High Purity & Inertness
Manufactured from 100% virgin PTFE
No additives or plasticizers (except trace particles from processing)
Chemically inert and non‑reactive
✅ Minimizes contamination in LC‑MS and trace‑level analytical workflows
Broad Chemical & Thermal Resistance
Resistant to:
Organic solvents
Acids and bases
Aqueous mobile phases
Maximum Temperature: 260 °C
✅ Suitable for aggressive chemical environments and elevated temperatures
Micro‑Porous Structure – Application Consideration
PTFE tubing contains micropores allowing slight gas exchange
Important when working with:
Degassed solvents
Oxygen‑sensitive applications
✅ Consider alternative tubing when gas impermeability is critical
Flexible & Durable Design
Flexible for custom routing and long continuous runs
Durable under repeated laboratory use
Natural translucent appearance allows visual monitoring of flow
✅ Supports efficient installation and long-term system reliability
Spool Supply for Longer Lengths
Lengths ≥ 15 meters supplied on a spool
Reduces kinking and improves handling
Enables clean installation for extended tubing runs
✅ Ideal for large systems and continuous fluid pathways
Regulatory Compliance
Compliant with:
RoHS EU Directive 2011/65/EU
Amendment (EU) 2015/863
✅ Meets global environmental and safety standards
Available Standard Length Options
✅ Use pre-cut lengths when continuous tubing is not required:
Typical Applications
High‑flow HPLC mobile phase delivery systems
Bulk solvent transfer and routing
Continuous solvent lines (pre‑ and post‑pump)
LC‑MS fluid transfer systems
OEM instrument manufacturing
Important Usage Notes
Not intended for high‑pressure HPLC pump head connections
Consider permeability for degassed or oxygen‑sensitive solvents
Use proper fittings for secure, leak‑free installation
🚨Made‑to‑Order & Pricing Information
This is a custom, made‑to‑order item.
Orders cannot be canceled once placed
Custom items are non‑returnable
