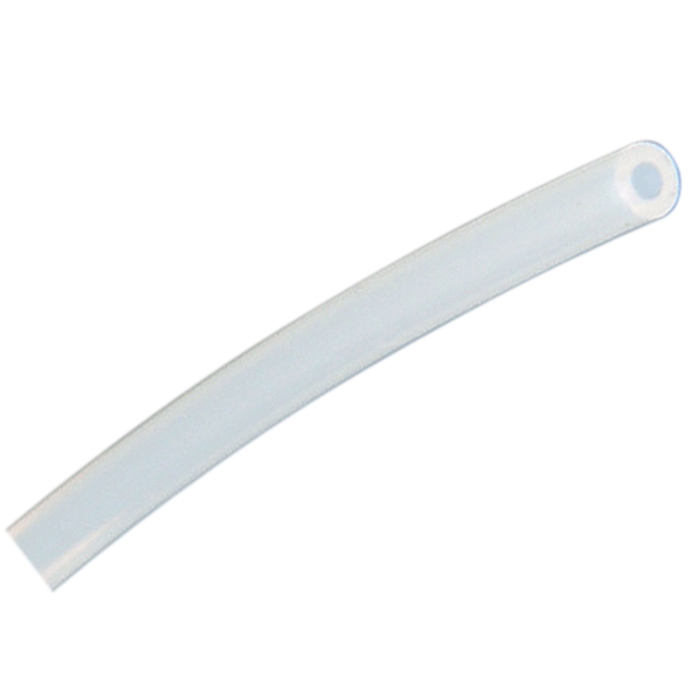

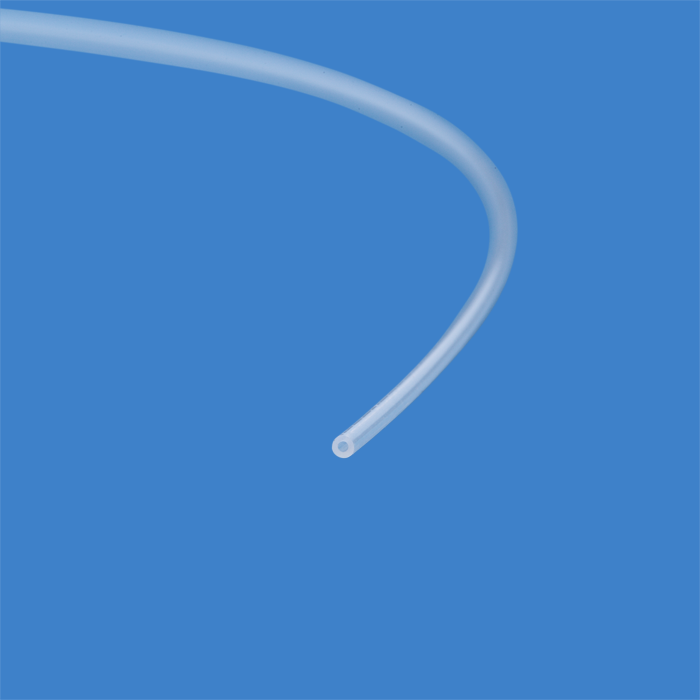

Tubing, PTFE, 0.030 inch (0.75 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 1 meter roll, ARE-Applied Research brand. 1 EA.
Additional Info:
49210-30-1M ARE‑Applied Research PTFE Tubing is a high‑purity, low‑pressure fluid transfer solution engineered for HPLC, UHPLC, LC‑MS, and general laboratory applications, offering a larger internal diameter to support high‑flow solvent routing and reduced backpressure.
Manufactured from 100% virgin PTFE resin, this tubing contains no additives or plasticizers, ensuring clean fluid pathways and compatibility with demanding analytical methods.
Precision Dimensions – Maximum Flow Optimization
Inner Diameter (ID): 0.030" (0.75 mm)
Outer Diameter (OD): 1/16" (1.6 mm)
Wall Thickness: 0.425 mm
Tolerance (ID & OD): ± 0.10 mm
✅ Largest ID in this series provides maximum flow capacity and minimal flow restriction
Low‑Pressure Chromatography Performance
Designed for low‑pressure fluid paths, including:
Pre‑pump mobile phase delivery
Post‑detector solvent waste lines
Bulk solvent transfer
Pressure Rating: 510 psi (35.1 bar)
✅ Ideal for high‑volume, low‑pressure solvent movement
Virgin PTFE Construction – High Purity & Inertness
Manufactured from 100% virgin PTFE
No additives or plasticizers (other than trace particles from manufacturing)
Chemically inert and non‑reactive
✅ Suitable for LC‑MS and trace‑level analytical workflows
Broad Chemical & Thermal Resistance
Resistant to:
Organic solvents
Acids and bases
Aqueous mobile phases
Maximum Temperature: 260 °C
✅ Performs reliably in aggressive chemical and high‑temperature environments
Micro‑Porous Structure – Application Consideration
PTFE tubing contains micropores allowing slight gas exchange
Important considerations:
Degassed solvents
Oxygen‑sensitive applications
✅ Alternative tubing should be considered when gas impermeability is critical
Flexible & Durable Design
Flexible for easy routing and system integration
Durable under repeated laboratory use
Natural translucent appearance allows visual monitoring of flow
✅ Supports efficient setup and maintenance
Regulatory Compliance
Compliant with:
RoHS EU Directive 2011/65/EU
Amendment (EU) 2015/863
✅ Meets global environmental and safety requirements
Available Length Options
✅ Select the appropriate length for your application:
1 meter roll (this item)
✅ Custom cut lengths available—contact Customer Service for specifications and ordering
Typical Applications
High‑flow HPLC mobile phase delivery (pre‑pump)
Bulk solvent transfer
Solvent waste systems
Low‑pressure fluid routing
OEM and instrument integration
Important Usage Notes
Not intended for high‑pressure HPLC pump connections
Consider permeability effects when using degassed or oxygen‑sensitive solvents
Use proper fittings for secure, leak‑free performance
