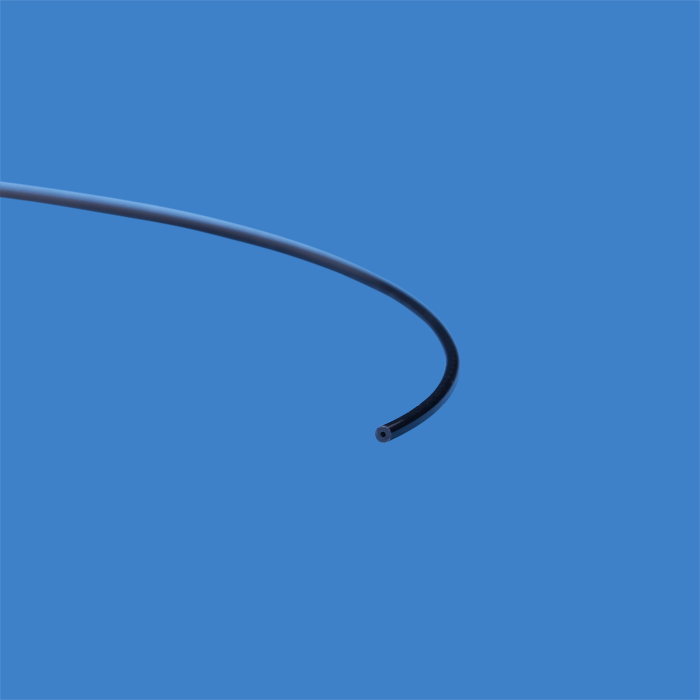

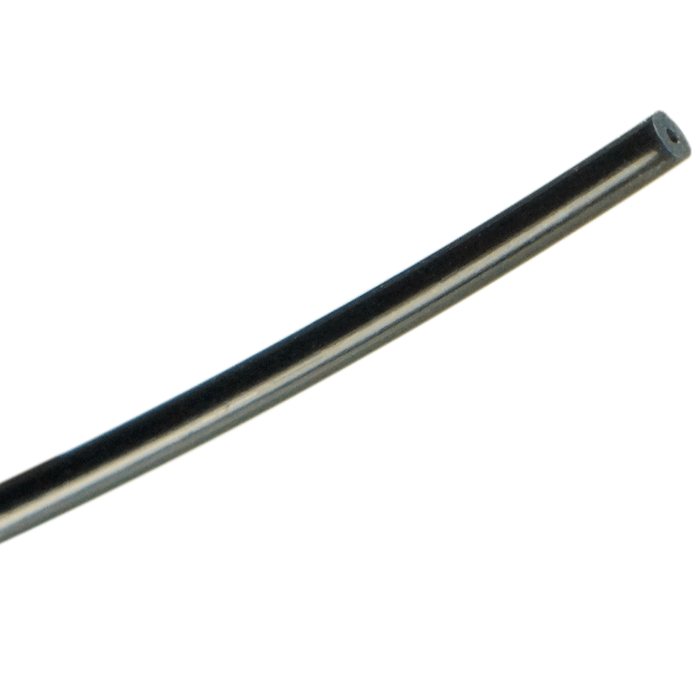

Tubing, PTFE, 0.020 inch (0.50 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, black, 25 meter roll, ARE-Applied Research brand. 1 EA.
Additional Info:
47240-50-C ARE‑Applied Research PTFE Tubing is a high‑purity, low‑pressure fluid transfer solution engineered for HPLC, UHPLC, LC‑MS, and general laboratory applications, offering increased internal diameter for high‑flow performance along with extended length for continuous system routing.
Manufactured from 100% virgin PTFE resin, this tubing contains no additives or plasticizers, except for trace pigment used solely for visual identification, ensuring low extractables and compatibility with sensitive analytical workflows.
Supplied on a convenient 25 meter spool, this configuration is ideal for bulk lab use, OEM integration, and custom installations.
Precision Dimensions – High Flow Optimization
Inner Diameter (ID): 0.020" (0.50 mm)
Outer Diameter (OD): 1/16" (1.6 mm)
Wall Thickness: 0.55 mm
Tolerance (ID & OD): ± 0.10 mm
✅ Larger ID enables higher flow rates and reduced backpressure vs. smaller ID tubing
Black Pigmentation – Visual Line Identification
Black‑pigmented PTFE tubing
Supports:
Visual differentiation of fluid lines
Organized multi‑line systems
Easier maintenance and troubleshooting
✅ Used for visual identification only (no functional or standardized color coding implied)
Low‑Pressure Chromatography Performance
Designed for low‑pressure fluid paths, including:
Pre‑pump mobile phase delivery
Post‑detector solvent waste lines
General solvent transfer
Pressure Rating: 725 psi (49.9 bar)
✅ Ideal for extended tubing runs in higher‑flow applications
Virgin PTFE Construction – High Purity & Inertness
Manufactured from 100% virgin PTFE
No additives (except trace pigment)
Chemically inert and non‑reactive
✅ Minimizes contamination in LC‑MS and trace‑level analytical workflows
Broad Chemical & Thermal Resistance
Resistant to:
Organic solvents
Acids and bases
Aqueous mobile phases
Maximum Temperature: 260 °C
✅ Suitable for demanding and continuous-use laboratory environments
Micro‑Porous Structure – Application Consideration
PTFE tubing contains micropores allowing slight gas exchange
Important when working with:
Degassed solvents
Oxygen‑sensitive workflows
✅ Consider alternative tubing when gas impermeability is required
Flexible & Durable Design
Flexible for long‑distance routing and custom system layouts
Durable under repeated lab use
Maintains clear visual distinction in complex tubing systems
✅ Supports efficient installation and maintenance
Convenient Spool Format – High Volume Efficiency
Supplied on a 25 meter spool
Ideal for:
Bulk laboratory use
Custom cut lengths
OEM manufacturing
✅ Reduces handling complexity and improves workflow efficiency
Regulatory Compliance
Compliant with:
RoHS EU Directive 2011/65/EU
Amendment (EU) 2015/863
✅ Meets global environmental and safety standards
Available Length Options
✅ Choose the appropriate length for your application:
25 meter spool (this item)
✅ Custom cut lengths available through Customer Service
Typical Applications
Extended HPLC mobile phase delivery (pre‑pump)
High‑flow solvent routing
Long solvent waste lines
Multi‑line systems requiring visual differentiation
OEM and instrument integration
Important Usage Notes
Not intended for high‑pressure HPLC pump head connections
Black pigmentation is for visual identification only
Consider permeability when using degassed or oxygen‑sensitive solvents
Use proper fittings to ensure secure, leak‑free connections
