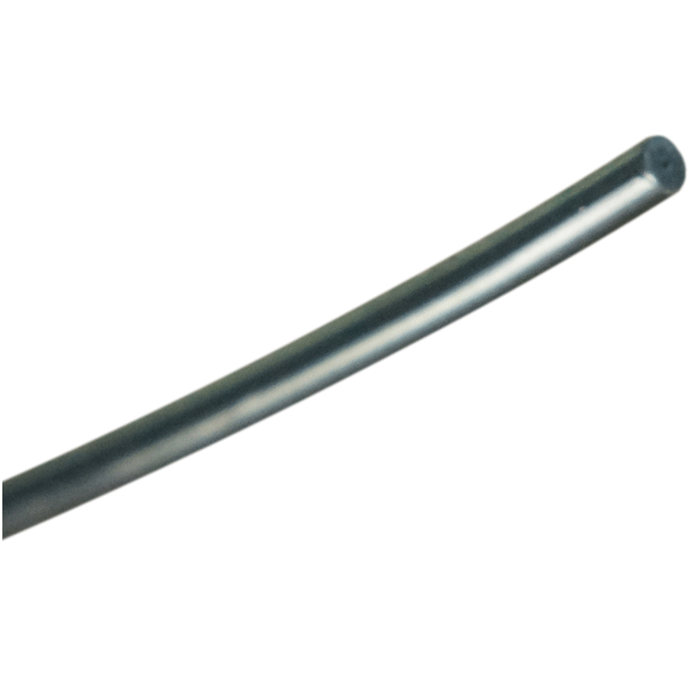

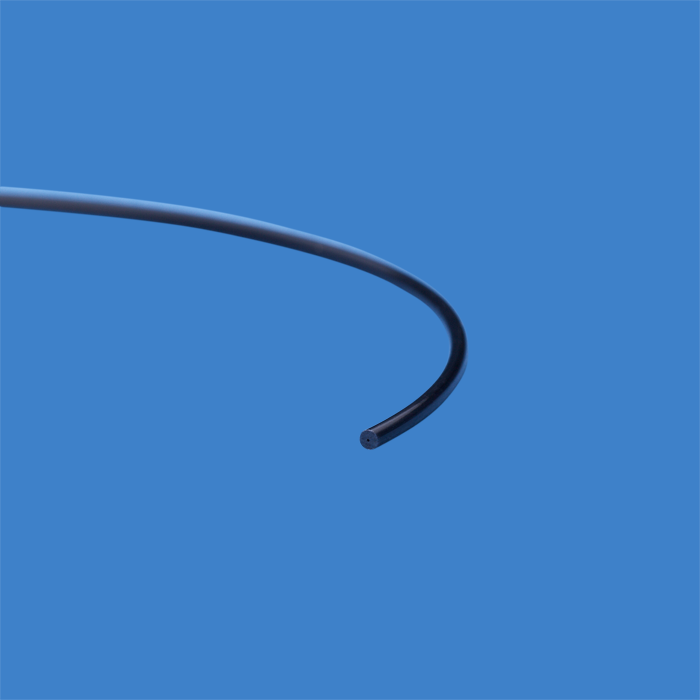

Tubing, PTFE, 0.010 inch (0.25 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, black, 10 meter roll, ARE-Applied Research brand. 1 EA.
Additional Info:
47240-40-10M ARE‑Applied Research PTFE Tubing is a high‑purity, low‑pressure fluid transfer solution engineered for HPLC, UHPLC, LC‑MS, and general laboratory applications, providing enhanced flow capacity and extended tubing length for flexible system design, along with visual differentiation for organized fluid routing.
Manufactured from 100% virgin PTFE resin, this tubing contains no additives or plasticizers, except for trace pigment for visual identification, ensuring low extractables and compatibility with sensitive analytical methods.
Precision Dimensions – Optimized for Higher Flow
Inner Diameter (ID): 0.010" (0.25 mm)
Outer Diameter (OD): 1/16" (1.6 mm)
Wall Thickness: 0.675 mm
Tolerance (ID & OD): ± 0.10 mm
✅ Larger ID provides higher flow rates and reduced resistance vs. smaller ID tubing
Black Pigmentation – Visual Line Identification
Black‑pigmented PTFE tubing
Supports:
Clear identification of fluid lines
Organization of multi‑line systems
Simplified maintenance and troubleshooting
✅ Used for visual identification only (no functional or standardized color coding implied)
Low‑Pressure Chromatography Performance
Designed for low‑pressure fluid paths, including:
Pre‑pump mobile phase delivery
Post‑detector waste lines
General solvent transfer
Pressure Rating: 800 psi (55.2 bar)
✅ Ensures stable and reliable solvent handling over extended runs
Virgin PTFE Construction – High Purity & Inertness
Manufactured from 100% virgin PTFE
No additives (except trace pigment)
Chemically inert and non‑reactive
✅ Minimizes contamination risk in LC‑MS and high‑sensitivity workflows
Broad Chemical & Thermal Resistance
Resistant to:
Organic solvents
Acids and bases
Aqueous mobile phases
Maximum Temperature: 260 °C
✅ Suitable for demanding and long‑duration laboratory applications
Micro‑Porous Structure – Application Consideration
PTFE tubing contains micropores allowing slight gas exchange
Important when working with:
Degassed solvents
Oxygen‑sensitive workflows
✅ Consider alternative tubing where gas impermeability is critical
Flexible & Durable Design
Flexible for long‑distance routing and system integration
Durable for repeated lab use
Maintains clear visual identification across complex tubing layouts
✅ Supports efficient installation and ongoing maintenance
Regulatory Compliance
Compliant with:
RoHS EU Directive 2011/65/EU
Amendment (EU) 2015/863
✅ Meets global environmental and safety standards
Available Length Options
✅ Select the length appropriate for your application:
10 meter roll (this item)
✅ Custom cut lengths available through Customer Service
Typical Applications
Extended HPLC mobile phase delivery (pre‑pump)
Long solvent waste lines
Multi‑line systems requiring visual differentiation
Low‑pressure fluid transfer
OEM and instrument integration
Important Usage Notes
Not intended for high‑pressure HPLC pump head connections
Black pigmentation is for visual identification only
Consider permeability for degassed or oxygen‑sensitive solvents
Use proper fittings to ensure secure, leak‑free connections
