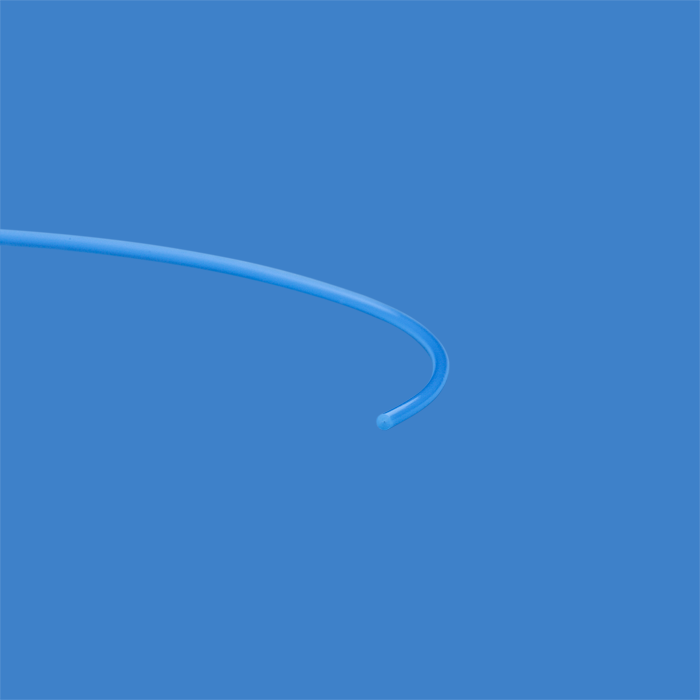

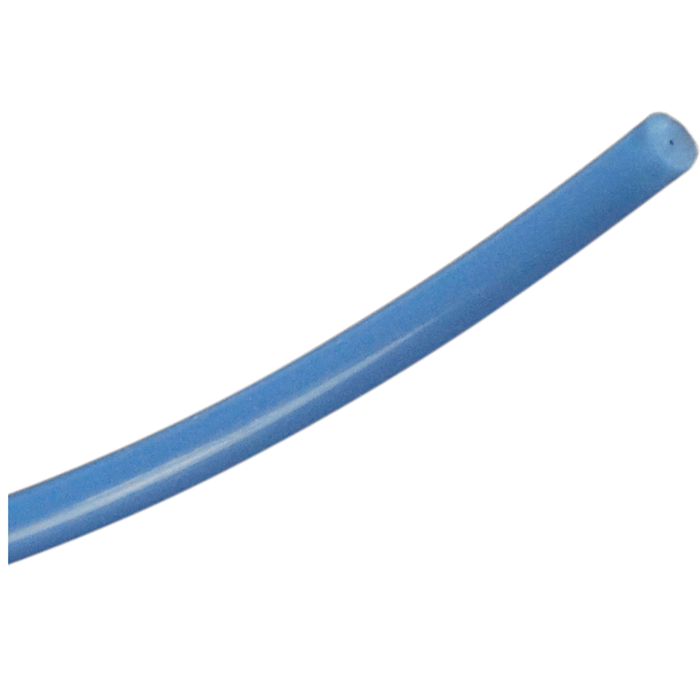

CUSTOM ITEM: Tubing, PTFE, 0.010 inch (0.25 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, blue, Your custom continuous length tubing, priced per meter. ARE-Applied Research brand.
Additional Info:
47240-10-1C ARE‑Applied Research PTFE Tubing is a made‑to‑order, custom continuous length solution designed for HPLC, UHPLC, LC‑MS, and general laboratory applications, providing enhanced flow capacity and uninterrupted fluid paths for optimized system performance.
Manufactured from 100% virgin PTFE resin, this tubing contains no additives or plasticizers, except for trace pigment for visual identification, ensuring low extractables and compatibility with sensitive analytical workflows.
✅ Review custom order guidelines and non‑returnable terms for made‑to‑order tubing
Custom Continuous Length – Built to Your Specification
Supplied in user‑specified continuous lengths
Priced per meter
Eliminates unnecessary unions and fittings
Reduces leak points and dead volume
✅ Ideal for OEM systems, custom builds, and optimized fluid routing
✅ Recommended for validated designs and finalized configurations
Precision Dimensions – Higher Flow Optimization
Inner Diameter (ID): 0.010" (0.25 mm)
Outer Diameter (OD): 1/16" (1.6 mm)
Wall Thickness: 0.675 mm
Tolerance (ID & OD): ± 0.10 mm
✅ Larger ID delivers higher flow rates and reduced resistance
Low‑Pressure Chromatography Performance
Designed for low‑pressure fluid paths, including:
Pre‑pump mobile phase delivery
Post‑detector waste lines
General solvent transfer
Pressure Rating: 800 psi (55.2 bar)
✅ Suitable for continuous long‑run tubing configurations
Virgin PTFE Construction – High Purity & Inertness
Manufactured from 100% virgin PTFE
No additives except trace pigment
Chemically inert and non‑reactive
✅ Minimizes contamination in LC‑MS and trace‑level analyses
Broad Chemical & Thermal Resistance
Resistant to:
Organic solvents
Acids and bases
Aqueous mobile phases
Maximum Temperature: 260 °C
✅ Suitable for demanding and extended-use applications
Micro‑Porous Structure – Application Consideration
PTFE tubing contains micropores allowing gas exchange
Important for:
Degassed solvents
Oxygen‑sensitive workflows
✅ Consider alternative materials when gas impermeability is critical
Flexible & Durable Design
Flexible for custom routing and system integration
Durable for repeated laboratory use
Maintains visible flow path identification
✅ Improves installation efficiency and system organization
Spool Supply for Longer Lengths
Lengths ≥ 15 meters supplied on a spool
Reduces kinking and improves handling
Supports clean installation for long runs
✅ Ideal for large systems and continuous tubing applications
Regulatory Compliance
Compliant with:
RoHS EU Directive 2011/65/EU
Amendment (EU) 2015/863
✅ Meets global environmental and safety standards
Available Standard Length Alternatives
✅ Use pre-cut lengths when continuous tubing is not required:
Typical Applications
Custom HPLC mobile phase delivery systems
Continuous solvent routing (pre‑ and post‑pump)
LC‑MS fluid transfer lines
OEM instrument manufacturing
Laboratory system optimization
Important Usage Notes
Not intended for high‑pressure pump head connections
Blue pigmentation is for visual identification only
Consider permeability when using degassed or oxygen‑sensitive solvents
Ensure proper fittings for secure, leak‑free installation
🚨Made‑to‑Order & Pricing Information
This is a custom, made‑to‑order item.
Orders cannot be canceled once placed
Custom items are non‑returnable
