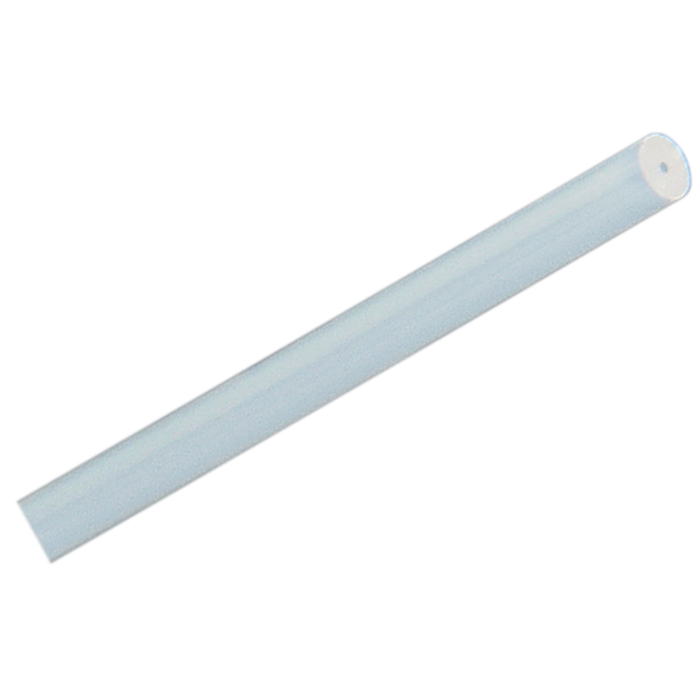

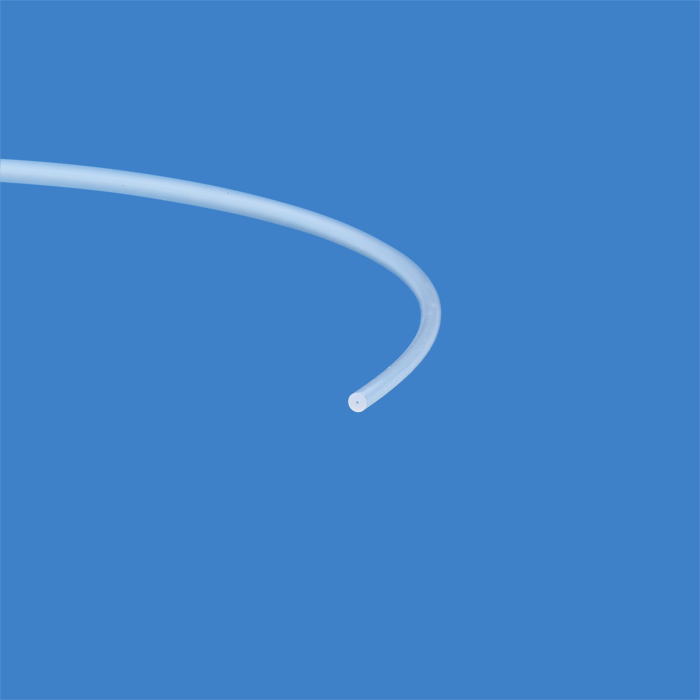

CUSTOM ITEM: Tubing, PTFE, 0.010 inch (0.25 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, Your custom continuous length tubing, priced per meter. ARE-Applied Research brand.
Additional Info:
49210-10-1C ARE‑Applied Research PTFE Tubing is a made‑to‑order, custom continuous length tubing solution designed for HPLC, UHPLC, LC‑MS, and general laboratory applications, offering enhanced flow capacity and flexible system configuration.
Manufactured from 100% virgin PTFE resin, this tubing ensures chemical inertness, low extractables, and compatibility with sensitive analytical workflows, while allowing users to specify exact continuous lengths to reduce fittings, dead volume, and potential leak points.
✅ Review custom order guidelines and non‑returnable terms for made‑to‑order tubing
Custom Continuous Length – Designed to Your Specifications
Supplied in user‑defined continuous lengths
Priced per meter
Eliminates unnecessary unions and connectors
Reduces dead volume and potential leak points
✅ Ideal for OEM systems, custom builds, and optimized fluid routing
Important Custom Order Notice
Made‑to‑order product
Non‑returnable and non‑cancelable once order is placed
Manufactured specifically to your requested length
✅ Recommended for validated system designs and finalized configurations
Precision Dimensions – Increased Flow Optimization
Inner Diameter (ID): 0.010" (0.25 mm)
Outer Diameter (OD): 1/16" (1.6 mm)
Wall Thickness: 0.675 mm
Tolerance (ID & OD): ± 0.10 mm
✅ Larger ID provides higher flow capacity and reduced backpressure vs. smaller ID tubing
Low‑Pressure Chromatography Performance
Designed for low‑pressure fluid paths, including:
Pre‑pump mobile phase delivery
Post‑detector waste lines
General solvent transfer
Pressure Rating: 800 psi (55.2 bar)
✅ Ideal for long, continuous fluid paths requiring stable flow
Virgin PTFE Construction – High Purity & Inertness
Manufactured from 100% virgin PTFE
No additives or plasticizers (except minimal color coding particles)
Chemically inert and non‑reactive
✅ Minimizes contamination in LC‑MS and trace‑level analyses
Broad Chemical & Thermal Resistance
Resistant to:
Organic solvents
Acids and bases
Aqueous mobile phases
Maximum Temperature: 260 °C
✅ Suitable for demanding analytical and extended-use environments
Micro‑Porous Structure – Application Consideration
PTFE contains micropores allowing slight gas exchange
Important for:
Degassed solvents
Oxygen‑sensitive applications
✅ Consider alternative materials when gas impermeability is critical
Flexible & Durable Design
Flexible for custom routing and system integration
Durable for repeated laboratory use
Natural translucent color allows visual flow monitoring
✅ Enhances installation efficiency and system visibility
Spool Supply for Longer Lengths
Lengths ≥ 15 meters supplied on a spool
Improves handling and reduces kinking
Supports clean installation for long runs
✅ Ideal for large systems and continuous routing
Regulatory Compliance
Compliant with:
RoHS EU Directive 2011/65/EU
Amendment (EU) 2015/863
✅ Meets global environmental and safety standards
Available Standard Length Options
✅ Consider pre‑cut lengths if continuous tubing is not required:
Typical Applications
Custom HPLC mobile phase delivery systems
Continuous solvent routing (pre‑ and post‑pump)
LC‑MS fluid transfer lines
OEM instrument manufacturing
Laboratory system optimization
Important Usage Notes
Not intended for high‑pressure pump connections
Consider gas permeability when using degassed or oxygen‑sensitive solvents
Ensure proper fittings for leak‑free installation
🚨 Made‑to‑Order & Pricing Information
This is a custom, made‑to‑order item.
Orders cannot be canceled once placed
Custom items are non‑returnable
