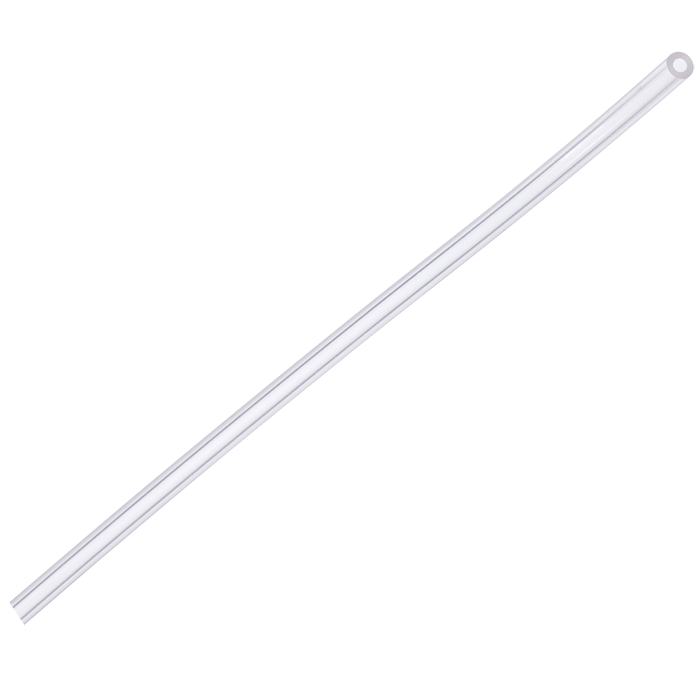

Tubing, PFA, 1/16th inch (1.6 mm) ID, 1/8th inch (3.2 mm) OD, low pressure, Your custom continuous length tubing, priced per meter. ARE-Applied Research brand.
Additional Information:
ARE-Applied Research PFA (Perfluoroalkyl) tubing is designed for low-pressure fluid transfer applications requiring exceptional chemical resistance, high purity, and reliable performance across a broad operating temperature range. PFA tubing provides performance characteristics similar to PTFE (Teflon®) while offering lower permeability, greater transparency, and improved performance at elevated temperatures and pressures.
48335-65-1C allows laboratories and manufacturers to order a custom continuous length of natural translucent PFA tubing with a 1/16 inch (1.6 mm) internal diameter and 1/8 inch (3.2 mm) outer diameter. This custom-order option is priced per meter, allowing users to specify the exact tubing length required for their application while minimizing waste and reducing the need for intermediate fittings or unions.
The translucent construction allows visual monitoring of fluid movement while maintaining excellent chemical compatibility with a wide range of solvents, reagents, and laboratory chemicals.
Lengths of 15 meters or longer are supplied on a convenient spool for easier storage, handling, and dispensing.
Do not use this tubing at temperatures exceeding 260°C.
Key Benefits
Custom continuous lengths specified by the customer
PFA construction provides outstanding chemical resistance
Lower permeability than conventional PTFE tubing
Greater transparency for monitoring fluid flow
Suitable for elevated temperature applications up to 260°C
Reduces the need for connectors in long tubing runs
Lengths of 15 meters or greater supplied on a convenient spool
RoHS compliant material construction
Typical Applications
HPLC fluid transfer
UHPLC fluid pathways
Laboratory fluid handling
Reagent delivery systems
Analytical instrumentation
Solvent transfer lines
Chemical processing applications
Custom laboratory plumbing installations
Specifications
Product Type: PFA Tubing
Material: PFA (Perfluoroalkyl)
Internal Diameter: 1/16 in. (1.6 mm)
Outer Diameter: 1/8 in. (3.2 mm)
Wall Thickness: 0.80 mm
Color: Natural, Translucent
Length: Custom Continuous Length
Pricing Basis: Per Meter
Packaging: Continuous Length
Lengths ≥15 Meters: Supplied on Spool
Pressure Rating: 1075 psi (74.1 bar)
Dimensional Tolerance: ±0.10 mm
Maximum Temperature: 260°C
Brand: ARE-Applied Research
Compliance: RoHS EU Directive 2011/65/EU and Amendment (EU) 2015/863
Available Lengths
Custom Order Information
48335-65-1C is a custom-manufactured item supplied in the length specified at the time of order. Custom-cut tubing allows users to purchase a continuous length tailored to their specific installation or application requirements. Please contact Customer Service for formal quotation, lead time, and ordering assistance.
Important Notes
Custom continuous length tubing
Priced per meter
Lengths of 15 meters or longer supplied on a convenient spool
Low-pressure tubing application
Natural translucent tubing allows fluid visibility
Chemically resistant PFA construction
Do not exceed 260°C operating temperature
Pressure rated to 1075 psi (74.1 bar)
RoHS compliant
Custom-manufactured items cannot be returned or canceled once ordered
