Tubing, PFA, 1/16th inch (1.6 mm) ID, 1/8th inch (3.2 mm) OD, low pressure, 10 meter roll, ARE-Applied Research brand. 1 EA.
Additional Information:
ARE-Applied Research PFA (Perfluoroalkyl) tubing is designed for low-pressure fluid transfer applications requiring exceptional chemical resistance, high purity, and reliable performance across a broad temperature range. PFA tubing provides performance characteristics similar to PTFE (Teflon®) while offering lower permeability, greater transparency, and improved performance at elevated temperatures and pressures.

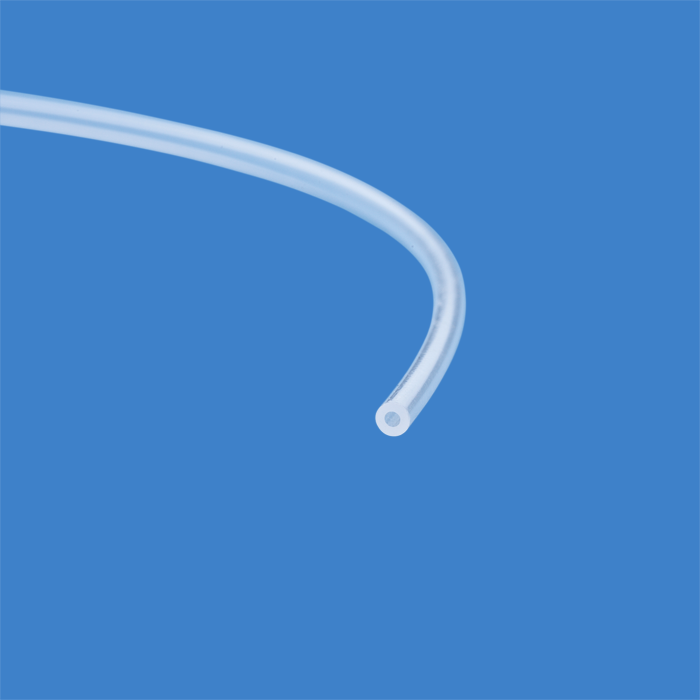

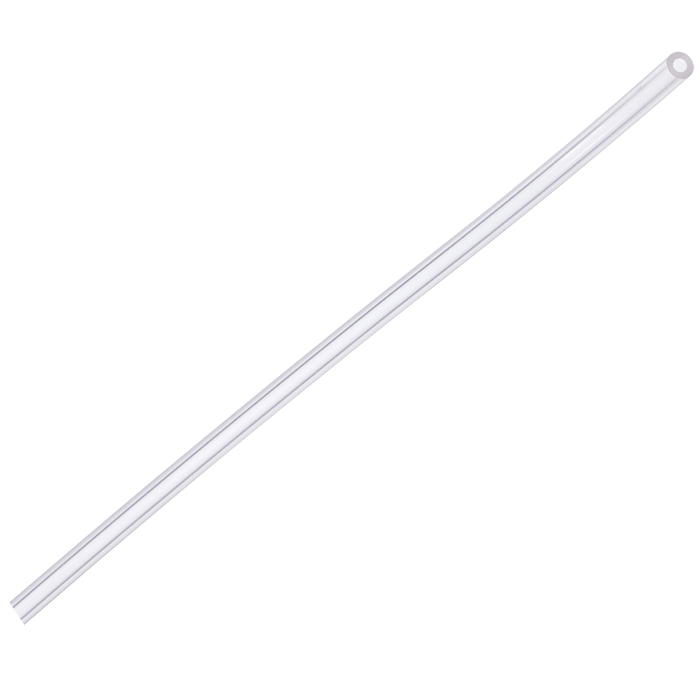

48335-65-10M is supplied as a convenient 10-meter roll of natural translucent PFA tubing with a 1/16 inch (1.6 mm) internal diameter and 1/8 inch (3.2 mm) outer diameter. The tubing is suitable for laboratory, analytical, and industrial applications requiring chemically inert fluid pathways and dependable dimensional accuracy.
The translucent construction allows visual monitoring of fluid movement while maintaining excellent chemical compatibility with a wide variety of solvents, reagents, and laboratory chemicals.
Do not use this tubing at temperatures exceeding 260°C.
Key Benefits
PFA construction provides outstanding chemical resistance
Lower permeability than conventional PTFE tubing
Greater transparency for monitoring fluid flow
Suitable for elevated temperature applications up to 260°C
Smooth internal surface promotes efficient fluid transfer
Consistent dimensional tolerances for reliable fitting connections
High-pressure capability for demanding laboratory applications
RoHS compliant material construction
Typical Applications
HPLC fluid transfer
Laboratory fluid handling
Reagent delivery systems
Analytical instrumentation
Solvent transfer
Chemical processing applications
Sample transport lines
Industrial fluid handling
Specifications
Product Type: PFA Tubing
Material: PFA (Perfluoroalkyl)
Internal Diameter: 1/16 in. (1.6 mm)
Outer Diameter: 1/8 in. (3.2 mm)
Wall Thickness: 0.80 mm
Color: Natural, Translucent
Length: 10 Meters
Pressure Rating: 1075 psi (74.1 bar)
Dimensional Tolerance: ±0.10 mm
Maximum Temperature: 260°C
Brand: ARE-Applied Research
Compliance: RoHS EU Directive 2011/65/EU and Amendment (EU) 2015/863
Available Lengths
Custom Length Information
Custom-cut lengths are available. Please contact Customer Service for custom tubing lengths and ordering assistance.
Important Notes
Low-pressure tubing application
Natural translucent tubing allows fluid visibility
Chemically resistant PFA construction
Do not exceed 260°C operating temperature
Pressure rated to 1075 psi (74.1 bar)
RoHS compliant
Suitable for analytical and laboratory fluid transfer applications
