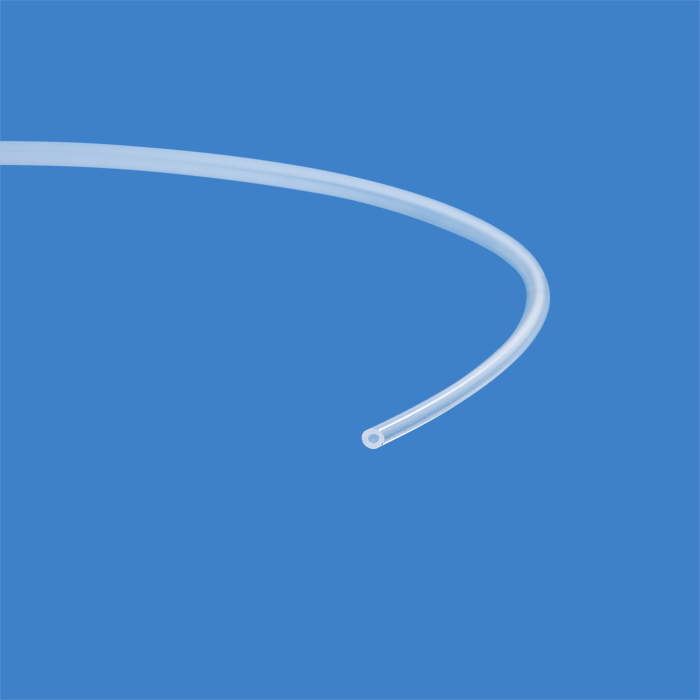

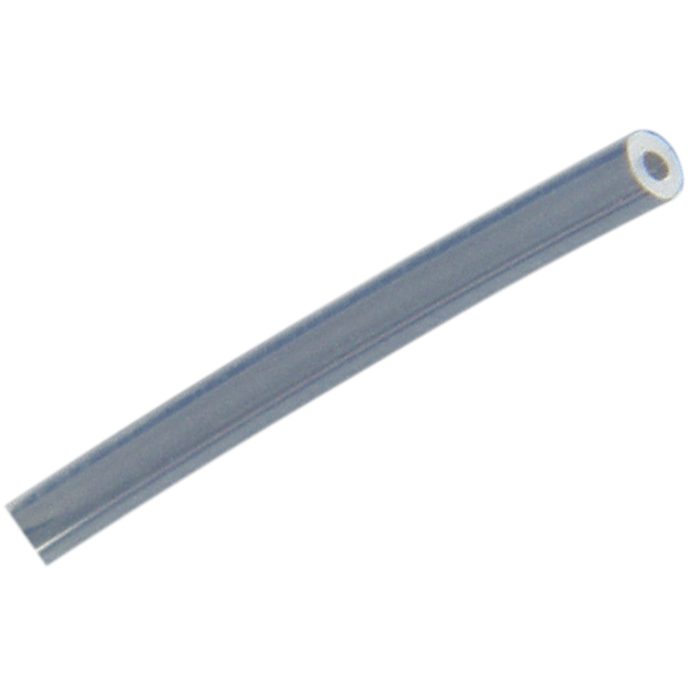

Tubing, PFA, 0.030 inch (0.75 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, Your custom continuous length tubing, priced per meter. ARE-Applied Research brand.
Additional Information:
Order the exact tubing length required for your application with custom continuous length PFA tubing designed for low‑pressure laboratory and analytical fluid handling. Custom lengths can reduce unnecessary fittings, minimize connection points, and simplify instrument installations where standard roll lengths may not provide the most efficient fluid path.
48310-30-1C tubing is manufactured from PFA (Perfluoroalkoxy Alkane), a fluoropolymer that provides many of the advantages associated with PTFE while offering lower permeability, greater transparency, and improved performance at elevated temperatures and pressures. The natural translucent construction allows visual monitoring of fluid movement, helping identify bubbles and verify flow conditions during operation.
You determine the required tubing length to optimize routing for chromatography instruments, solvent delivery systems, and general laboratory fluid transfer applications. Lengths of 15 meters or greater are supplied on a convenient spool to simplify handling and storage. With an internal diameter of 0.75 mm and an outer diameter of 1.6 mm, this tubing is suitable for a variety of low‑pressure applications that may benefit from increased internal flow capacity.
The tubing features a wall thickness of 0.425 mm and a pressure rating of 1075 psi (74.1 bar) under appropriate operating conditions. For safe operation and maximum service life, temperatures should not exceed 260°C.
This tubing complies with the RoHS EU Directive 2011/65/EU and Amendment (EU) 2015/863 regarding the restriction of hazardous substances.
Key Benefits
Order custom continuous lengths to meet specific application requirements
Reduces the need for additional tubing connections
High‑purity PFA fluoropolymer construction
Lower permeability than many comparable fluoropolymer materials
Greater transparency for visual flow monitoring
Excellent chemical resistance
Suitable for elevated temperature and pressure applications
Available on spools for longer lengths
Typical Applications
HPLC fluid transfer lines
Solvent delivery systems
Laboratory fluid handling
Chemical transfer applications
Custom instrument installations
Sample transport and analytical systems
Specifications
Product Type: PFA Tubing
Material: PFA (Perfluoroalkoxy Alkane)
Inner Diameter (ID): 0.030" (0.75 mm)
Outer Diameter (OD): 1/16" (1.6 mm)
Wall Thickness: 0.425 mm
Length: Custom Continuous Length
Pricing: Per Meter
Color: Natural, Translucent
Pressure Rating: 1075 psi (74.1 bar)
Dimensional Tolerance: ±0.10 mm
Maximum Temperature: 260°C
Item Status: Special Order Item
Compatibility
Suitable for HPLC and laboratory fluid handling systems
Compatible with many common laboratory solvents and reagents
Appropriate for low‑pressure fluidic applications
Can be used with compatible fluoropolymer tubing fittings and connectors
Performance and Design Notes
More transparent than traditional PTFE tubing
Lower permeability helps maintain fluid integrity
Excellent chemical compatibility across a broad range of solvents
Continuous lengths help reduce unnecessary fluidic connection points
Lengths of 15 meters or greater are supplied on a spool
Additional Lengths Available
Choose the tubing length that best fits your laboratory setup, instrument configuration, or fluid path requirements:
48310-30-1M – PFA Tubing, 0.030" ID × 1/16" OD, 1 Meter Roll
48310-30-3M – PFA Tubing, 0.030" ID × 1/16" OD, 3 Meter Roll
48310-30-10M – PFA Tubing, 0.030" ID × 1/16" OD, 10 Meter Roll
48310-30-C – PFA Tubing, 0.030" ID × 1/16" OD, 25 Meter Roll
Need a custom length? Contact Customer Service for Custom‑Cut PFA Tubing, 0.030" ID × 1/16" OD to discuss your specific length requirements.
Important Notes
Do not use at temperatures above 260°C
Pressure ratings may vary with temperature and operating conditions
Lengths of 15 meters or greater are supplied on a convenient spool
RoHS EU Directive 2011/65/EU and Amendment (EU) 2015/863 compliant
Special Order Item Information
