Catalog Number - 48310-20-1C

Order the exact tubing length needed for your application with custom continuous length PFA tubing designed for low‑pressure laboratory and analytical fluid handling. Custom lengths can help reduce unnecessary fittings, minimize connection points, and simplify instrument installations where standard roll lengths may not be ideal.

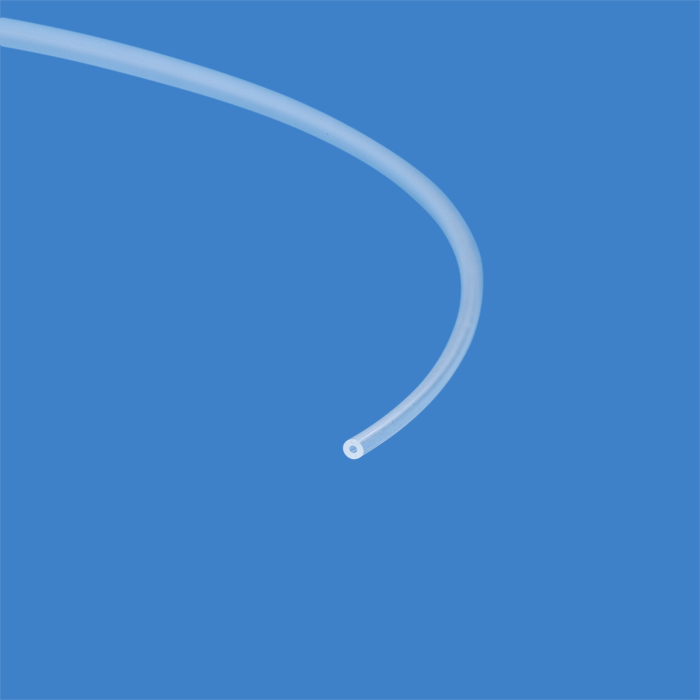

48310-20-1C tubing is manufactured from PFA (Perfluoroalkoxy Alkane), a fluoropolymer that offers many of the advantages associated with PTFE while providing lower permeability, greater transparency, and improved performance at elevated temperatures and pressures. The translucent natural color allows users to visually monitor fluid movement, helping identify bubbles and verify flow conditions during operation.

You specify the required tubing length, allowing optimized routing for chromatography instruments, solvent delivery systems, and laboratory fluid transfer applications. Lengths of 15 meters or greater are supplied on a convenient spool for easier handling and storage. With an internal diameter of 0.50 mm and an outer diameter of 1.6 mm, this tubing is well suited for a variety of low‑pressure fluidic applications.

The tubing features a wall thickness of 0.55 mm and a pressure rating of 1450 psi (99.9 bar) under appropriate operating conditions. For safe operation and maximum service life, the tubing should not be exposed to temperatures exceeding 260°C.

This tubing complies with the RoHS EU Directive 2011/65/EU and Amendment (EU) 2015/863 regarding the restriction of hazardous substances.

Key Benefits

• Order custom continuous lengths to meet specific application requirements

• Reduces the need for additional tubing connections

• High‑purity PFA fluoropolymer construction

• Lower permeability than many comparable fluoropolymer materials

• Greater transparency for visual flow monitoring

• Excellent chemical resistance

• Suitable for elevated temperature and pressure applications

• Available on spools for longer lengths

Typical Applications

• HPLC fluid transfer lines

• Solvent delivery systems

• Laboratory fluid handling

• Chemical transfer applications

• Custom instrument installations

• Sample transport and analytical systems

Specifications

• Product Type: PFA Tubing

• Material: PFA (Perfluoroalkoxy Alkane)

• Inner Diameter (ID): 0.020" (0.50 mm)

• Outer Diameter (OD): 1/16" (1.6 mm)

• Wall Thickness: 0.55 mm

• Length: Custom Continuous Length

• Pricing: Per Meter

• Color: Natural, Translucent

• Pressure Rating: 1450 psi (99.9 bar)

• Dimensional Tolerance: ±0.10 mm

• Maximum Temperature: 260°C

• Item Status: Special Order Item

Compatibility

• Suitable for HPLC and laboratory fluid handling systems

• Compatible with many common laboratory solvents and reagents

• Appropriate for low‑pressure fluidic applications

• Can be used with compatible fluoropolymer tubing fittings and connectors

Performance and Design Notes

• More transparent than traditional PTFE tubing

• Lower permeability helps maintain fluid integrity

• Excellent chemical compatibility across a broad range of solvents

• Continuous lengths help reduce unnecessary fluidic connection points

• Lengths of 15 meters or greater are supplied on a spool

Additional Lengths Available

Choose the tubing length that best fits your laboratory setup, instrument configuration, or fluid path requirements:

• 48310-20-01M – PFA Tubing, 0.020" ID × 1/16" OD, 1 Meter Roll

• 48310-20-03M – PFA Tubing, 0.020" ID × 1/16" OD, 3 Meter Roll

• 48310-20-05M – PFA Tubing, 0.020" ID × 1/16" OD, 5 Meter Roll

• 48310-20-10M – PFA Tubing, 0.020" ID × 1/16" OD, 10 Meter Roll

• 48310-20-25M – PFA Tubing, 0.020" ID × 1/16" OD, 25 Meter Roll

Need a custom length? Contact Customer Service for Custom‑Cut PFA Tubing to discuss your specific length requirements.

Important Notes

• Do not use at temperatures above 260°C

• Pressure ratings may vary with temperature and operating conditions

• RoHS EU Directive 2011/65/EU and Amendment (EU) 2015/863 compliant
