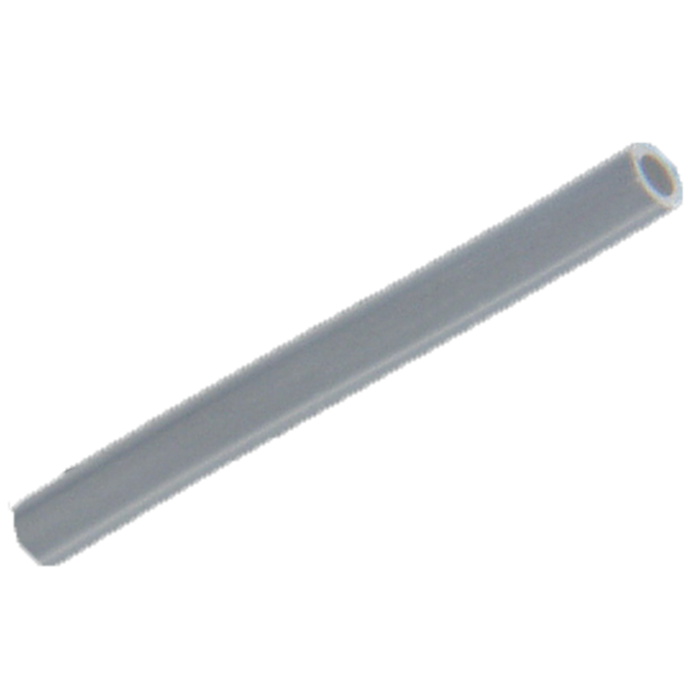

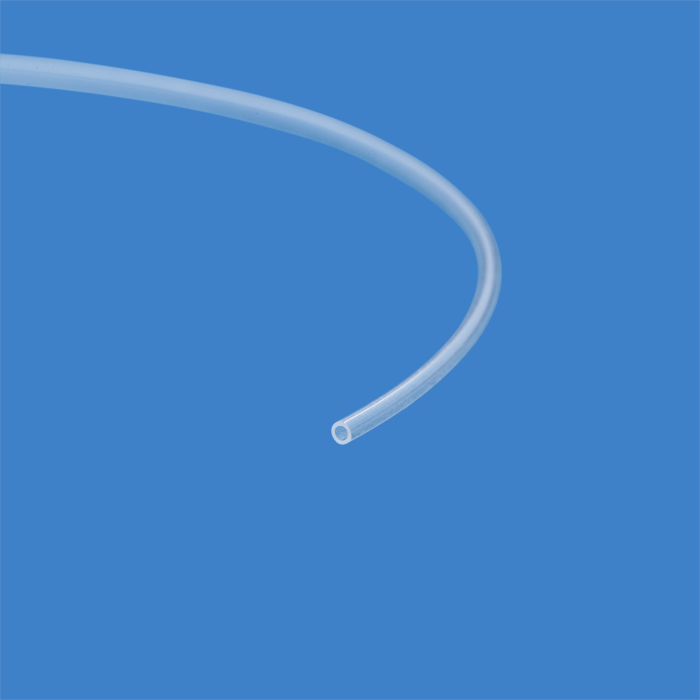

Tubing, FEP, 0.040 inch (1.0 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, Your continuous length tubing, priced per meter. ARE-Applied Research brand.
Additional Information:
ARE-Applied Research FEP (Fluoroethylene Propylene) tubing is designed for low-pressure fluid transfer applications requiring excellent chemical resistance, flexibility, and reliable flow characteristics. Often referred to as Teflon™ FEP tubing, it is commonly selected for Ion Chromatography applications but is equally suitable for numerous laboratory fluid handling applications including mobile phase delivery, solvent transfer, and waste line management in HPLC systems.
48410-40-1C allows laboratories and manufacturers to order a continuous length of natural translucent FEP tubing with a 0.040 inch (1.0 mm) internal diameter and 1/16 inch (1.6 mm) outer diameter. This Special Order Item is priced per meter, allowing users to specify the exact tubing length required while minimizing waste and reducing the need for unions or additional connections.
The larger internal diameter provides increased flow capacity for fluid transfer applications while maintaining chemical resistance and flexibility. The translucent tubing wall allows visual monitoring of fluid movement while maintaining excellent compatibility with many laboratory solvents and reagents.
Lengths of 15 meters or longer are supplied on a convenient spool for easier storage, handling, and dispensing.
Do not use this tubing at temperatures exceeding 80°C.
Key Benefits
Continuous length tubing specified by the customer
FEP construction provides excellent chemical resistance
Commonly used for Ion Chromatography applications
Suitable for HPLC mobile phase delivery and solvent waste systems
Larger internal diameter supports increased flow capacity
Natural translucent tubing allows fluid visibility
Lengths of 15 meters and longer supplied on a convenient spool
RoHS compliant material construction
Typical Applications
Ion Chromatography systems
HPLC mobile phase delivery
Solvent waste systems
Laboratory fluid transfer
Reagent delivery systems
Analytical instrumentation
Sample transport lines
General low-pressure laboratory applications
Specifications
Product Type: FEP Tubing
Material: FEP (Fluoroethylene Propylene)
Internal Diameter: 0.040 in. (1.0 mm)
Outer Diameter: 1/16 in. (1.6 mm)
Wall Thickness: 0.30 mm
Color: Natural, Translucent
Length: Continuous Length
Pricing Basis: Per Meter
Lengths ≥15 Meters: Supplied on Spool
Pressure Rating: 725 psi (49.9 bar)
Dimensional Tolerance: ±0.10 mm
Maximum Temperature: 80°C
Brand: ARE-Applied Research
Compliance: RoHS EU Directive 2011/65/EU and Amendment (EU) 2015/863
Additional Lengths
Special Order Item Information
This item is supplied in the length specified at the time of order.
Special Order Items cannot be canceled or returned once an order has been placed.
Custom cuts are available to meet specific application requirements.
Important Notes
Special Order Item
Continuous length tubing priced per meter
Lengths of 15 meters or longer supplied on a convenient spool
Low-pressure tubing application
Popular choice for Ion Chromatography systems
Suitable before and after HPLC pumps
Natural translucent tubing allows fluid visibility
Do not exceed 80°C operating temperature
Pressure rated to 725 psi (49.9 bar)
RoHS compliant
