Tubing, FEP, 0.030 inch (0.75 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 3 meter roll, ARE-Applied Research brand 1 EA.
Additional Information:
ARE-Applied Research FEP (Fluoroethylene Propylene) tubing is designed for low-pressure fluid transfer applications requiring excellent chemical resistance, flexibility, and reliable flow characteristics. Often referred to as Teflon™ FEP tubing, it is commonly selected for Ion Chromatography applications but is equally suitable for numerous laboratory fluid handling applications including mobile phase delivery, solvent transfer, and waste line management in HPLC systems.

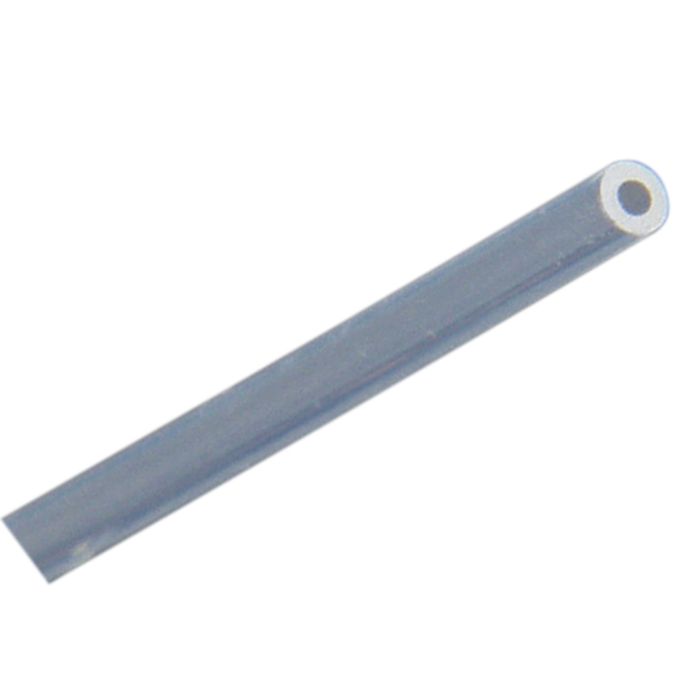

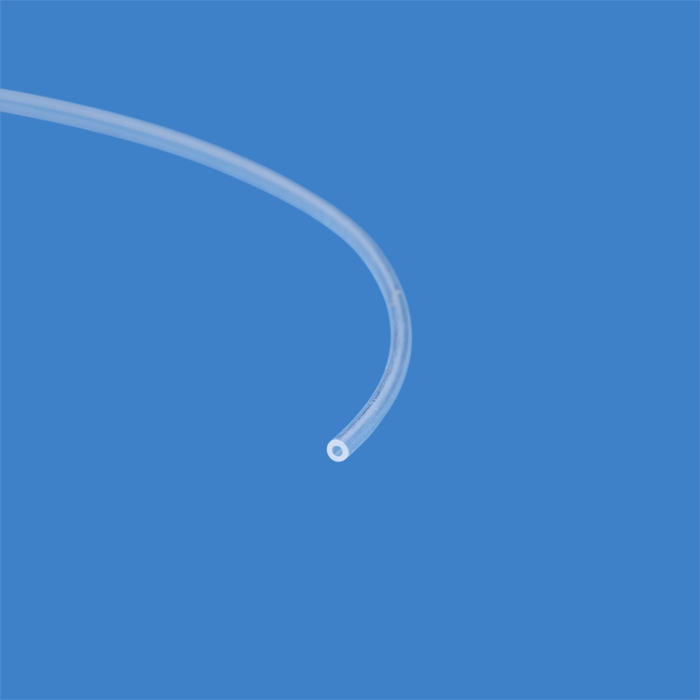

48410-30-3M is supplied as a convenient 3-meter roll of natural translucent FEP tubing with a 0.030 inch (0.75 mm) internal diameter and 1/16 inch (1.6 mm) outer diameter. The larger internal diameter supports higher flow rates and reduced backpressure, making it suitable for laboratory fluid transfer applications where increased flow capacity is desired.
The translucent tubing wall allows visual monitoring of fluid movement while maintaining excellent compatibility with many laboratory solvents and reagents.
Do not use this tubing at temperatures exceeding 80°C.
Key Benefits
FEP construction provides excellent chemical resistance
Commonly used for Ion Chromatography applications
Suitable for HPLC mobile phase delivery and solvent waste lines
Larger internal diameter supports increased flow capacity
Natural translucent tubing allows fluid visibility
Flexible tubing design for easy routing and installation
Consistent dimensional tolerances for reliable fittings
RoHS compliant material construction
Typical Applications
Ion Chromatography systems
HPLC mobile phase delivery
Solvent waste systems
Laboratory fluid transfer
Reagent delivery systems
Analytical instrumentation
Sample transport lines
General low-pressure laboratory applications
Specifications
Product Type: FEP Tubing
Material: FEP (Fluoroethylene Propylene)
Internal Diameter: 0.030 in. (0.75 mm)
Outer Diameter: 1/16 in. (1.6 mm)
Wall Thickness: 0.425 mm
Color: Natural, Translucent
Length: 3 Meters
Pressure Rating: 1075 psi (74.1 bar)
Dimensional Tolerance: ±0.10 mm
Maximum Temperature: 80°C
Brand: ARE-Applied Research
Compliance: RoHS EU Directive 2011/65/EU and Amendment (EU) 2015/863
Additional Lengths
Custom Length Information
Custom cuts are available for applications requiring specific tubing lengths.
Important Notes
Low-pressure tubing application
Popular choice for Ion Chromatography systems
Suitable before and after HPLC pumps
Natural translucent tubing allows fluid visibility
Do not exceed 80°C operating temperature
Pressure rated to 1075 psi (74.1 bar)
RoHS compliant
Suitable for analytical and laboratory fluid transfer applications
