Tubing, ETFE, 0.040 inch (1.0 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 3 meter roll, ARE-Applied Research brand. 1 EA.
Additional Information:
ARE-Applied Research ETFE (Ethylene Tetrafluoroethylene), commonly known by the trade name Tefzel™, tubing is manufactured from virgin ETFE resin without the use of processing additives. ETFE tubing is widely used in low-pressure laboratory fluid handling applications due to its excellent chemical resistance, low permeability, and mechanical durability. Compared to PTFE tubing, ETFE offers lower gas permeability while maintaining excellent compatibility with most laboratory solvents and reagents. ETFE is chemically inert except when used with certain halogenated compounds.

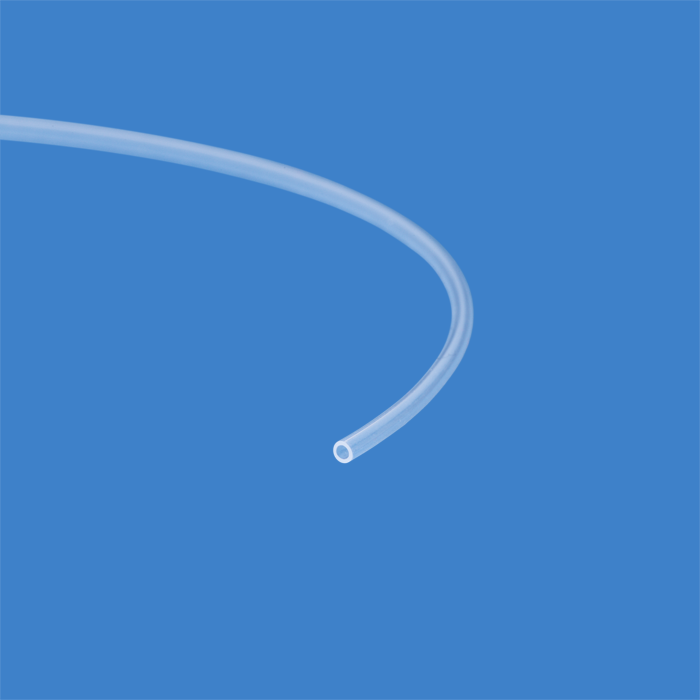

48510-40-3M is supplied as a convenient 3-meter roll of natural translucent ETFE tubing with a 0.040 inch (1.0 mm) internal diameter and 1/16 inch (1.6 mm) outer diameter. The larger internal diameter supports higher flow rates and increased fluid transfer capacity for solvent delivery, reagent handling, waste transport, and general laboratory applications. The tubing combines flexibility with excellent chemical compatibility and a pressure rating of 1225 psi (84.5 bar).
The translucent tubing wall allows visual monitoring of fluid movement and is suitable for use before and after HPLC pumps, including mobile phase delivery, solvent transfer, waste handling, reagent delivery, and general laboratory fluid transport applications.
Key Benefits
Manufactured from virgin ETFE resin without additives
Low permeability compared to PTFE tubing
Excellent chemical resistance
Larger internal diameter supports higher flow capacity
Flexible and durable tubing construction
Natural translucent tubing allows fluid visibility
Suitable for HPLC mobile phase delivery and waste systems
Reliable performance in laboratory fluid transfer applications
Typical Applications
HPLC mobile phase delivery
HPLC solvent waste systems
Laboratory fluid transfer
Analytical instrumentation
Reagent transfer systems
Sample transport lines
Solvent delivery applications
General laboratory fluid handling
Specifications
Product Type: ETFE Tubing
Material: ETFE (Tefzel™)
Internal Diameter: 0.040 in. (1.0 mm)
Outer Diameter: 1/16 in. (1.6 mm)
Wall Thickness: 0.30 mm
Color: Natural, Translucent
Length: 3 Meters
Pressure Rating: 1225 psi (84.5 bar)
Dimensional Tolerance: ±0.10 mm
Brand: ARE-Applied Research
Additional Lengths
Custom Length Information
Custom cuts are available for applications requiring specific tubing lengths.
Important Notes
Low-pressure tubing application
Manufactured from virgin ETFE resin
Lower permeability than PTFE tubing
Suitable before and after HPLC pumps
Natural translucent tubing allows fluid visibility
Pressure rated to 1225 psi (84.5 bar)
Excellent chemical resistance
Not recommended for certain halogenated compounds
