Tubing, ETFE, 0.020 inch (0.50 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 25 meter roll, ARE-Applied Research brand. 1 EA.
Additional Information:
ARE-Applied Research ETFE (Ethylene Tetrafluoroethylene), commonly known by the trade name Tefzel™, tubing is manufactured from virgin ETFE resin without the use of processing additives. ETFE tubing is widely used in low-pressure laboratory fluid handling applications due to its excellent chemical resistance, low permeability, and mechanical durability. Compared to PTFE tubing, ETFE offers lower gas permeability while maintaining excellent compatibility with most laboratory solvents and reagents. ETFE is chemically inert except when used with certain halogenated compounds.

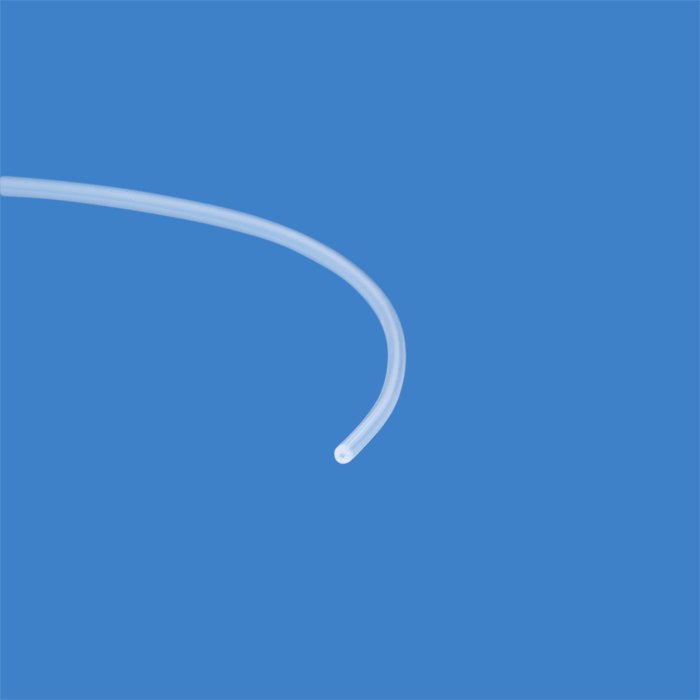

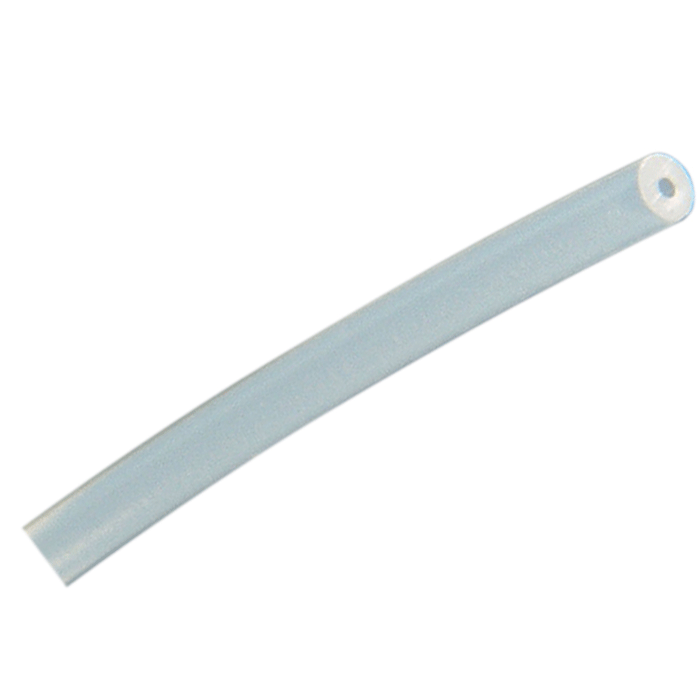

48510-20-C is supplied as a 25-meter continuous roll of natural translucent ETFE tubing with a 0.020 inch (0.50 mm) internal diameter and 1/16 inch (1.6 mm) outer diameter. The larger internal diameter provides greater flow capacity than 0.010 inch ID tubing while maintaining low dead volume and excellent chemical compatibility. The thicker wall construction provides durability and a high pressure rating for demanding laboratory fluid transfer applications. For improved handling, storage, and dispensing, this tubing length is supplied on a convenient spool.
The translucent tubing wall allows visual monitoring of fluid movement and is suitable for use before and after HPLC pumps, including mobile phase delivery, solvent transfer, waste handling, reagent delivery, and general laboratory fluid transport applications.
Key Benefits
Manufactured from virgin ETFE resin without additives
Low permeability compared to PTFE tubing
Excellent chemical resistance
Larger internal diameter supports increased flow capacity
Thick wall construction provides enhanced durability
High pressure rating for demanding laboratory applications
Supplied on a convenient spool
Natural translucent tubing allows fluid visibility
Typical Applications
HPLC mobile phase delivery
HPLC solvent waste systems
Laboratory fluid transfer
Analytical instrumentation
Reagent transfer systems
Sample transport lines
Solvent delivery applications
General laboratory fluid handling
Specifications
Product Type: ETFE Tubing
Material: ETFE (Tefzel™)
Internal Diameter: 0.020 in. (0.50 mm)
Outer Diameter: 1/16 in. (1.6 mm)
Wall Thickness: 0.55 mm
Color: Natural, Translucent
Length: 25 Meters
Packaging: Spool
Pressure Rating: 2175 psi (149.9 bar)
Dimensional Tolerance: ±0.10 mm
Brand: ARE-Applied Research
Additional Lengths
Custom Length Information
Custom cuts are available for applications requiring specific tubing lengths.
Important Notes
Low-pressure tubing application
Supplied on a convenient spool
Manufactured from virgin ETFE resin
Lower permeability than PTFE tubing
Suitable before and after HPLC pumps
Natural translucent tubing allows fluid visibility
Pressure rated to 2175 psi (149.9 bar)
Excellent chemical resistance
Not recommended for certain halogenated compounds
